MiBoxer SPI-WL4 – LED controller Wi-Fi and 2.4 GHz RF
MiBoxer SPI-WL4 is a four-output ESP32/WLED controller for digital SPI strips. Each output controls an independent zone of up to 1,024 pixels using an 800 kbit/s TTL SPI signal. Wi-Fi and 2.4 GHz RF remotes provide control of static, dynamic and music effects. Input: 5–24 V DC.
MiBoxer SPI-WL4 – LED controller Wi-Fi and 2.4 GHz RF
133.33 PLN
Shipment in 1-2 business days
005x_miboxer_SPI-WL4
MiBoxer SPI-WL4 is a four-output ESP32/WLED controller for digital SPI strips. Each output controls an independent zone of up to 1,024 pixels using an 800 kbit/s TTL SPI signal. Wi-Fi and 2.4 GHz RF remotes provide control of static, dynamic and music effects. Input: 5–24 V DC.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days

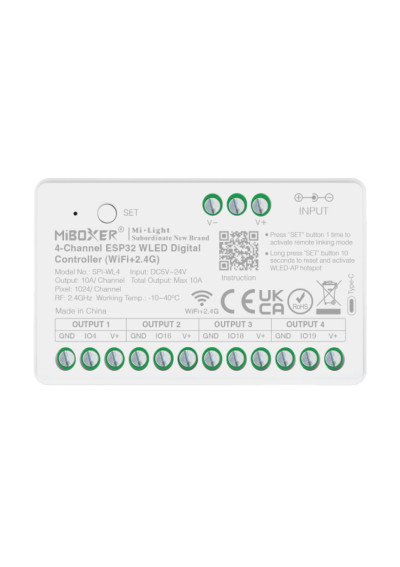

MiBoxer SPI-WL4 – SPI digital LED strip controller
SPI-WL4 addresses individual pixels rather than providing an ordinary analog RGB output. Four independent outputs allow separate strip and effect configurations in WLED.
Control

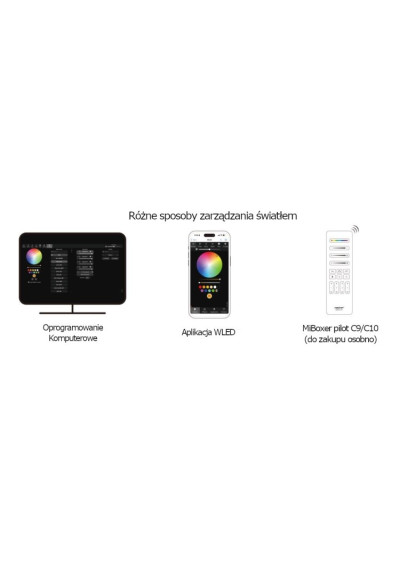

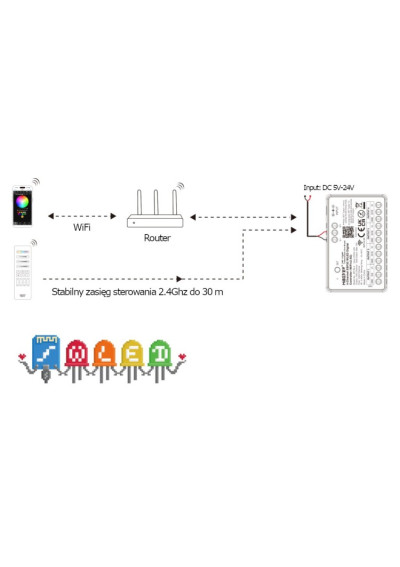

SPI-WL4 has built-in Wi-Fi for control through a compatible app without an RF gateway; MiBoxer radio control remains available through a MiBoxer 2.4 GHz RF remote.
Functions
- DND mode helps prevent the light from switching on unexpectedly after power is restored.
- Music modes link selected lighting effects to sound.
Installation and selection
Before installation, check the strip IC against the supported chip list and its 5–24 V DC supply. Each channel supports up to 1,024 pixels with an 800 kbit/s TTL SPI output.
Technical specifications
| Model | SPI-WL4 |
|---|---|
| Product type | SPI digital LED strip controller |
| Input voltage | 5–24 V DC |
| Output current | 10 A |
| Connectivity | Wi-Fi + RF 2.4 GHz |
| RF range | 30 m |
| Zones | 4 |
| Pixels | 1024 pixels/channel |
| Output signal | SPI TTL, 800 kbit/s |
| IP rating | IP20 |
| Operating temperature | -10–40 °C |
We make every effort to ensure that the information provided in this product description is complete, up to date and consistent with the manufacturer's documentation. Please note, however, that the MiBoxer product range is continuously evolving and the manufacturer may introduce updates to product functionality, compatibility, software or technical specifications that may not yet be reflected in our description. If you have any doubts, we recommend checking the latest information and documentation directly on the manufacturer's website.
Latest product information and documentation on the MiBoxer manufacturer website
005x_miboxer_SPI-WL4
Data sheet
- IP grade
- IP20
- Type of LED driver
- LED controller
- Input Voltage of LED driver
- 5 V DC
- Max. output current of LED controller
- 10 A
