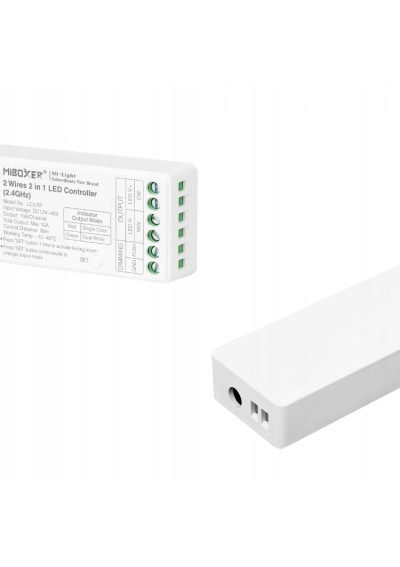

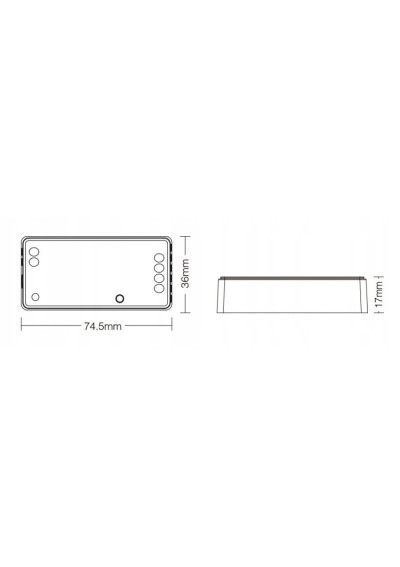

MiBoxer LC2-RF – 2 in 1 LED controller 2.4 GHz RF

MiBoxer LC2-RF – LED controller

LC2-RF controls LED strips and lights in Single Color, CCT modes. Match the LC2-RF output configuration to the connected strip; control uses RF 2.4 GHz.

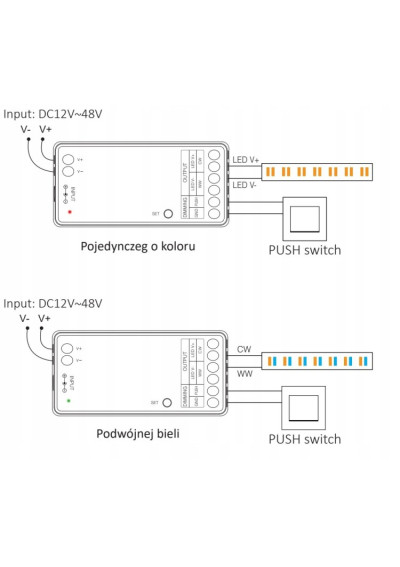

Operating modes and use

• Single Color: single-color LED strips with brightness control.
• CCT: dual-white strips with brightness and color-temperature adjustment.

Control

Control uses RF 2.4 GHz. App control requires a separate 2.4 GHz RF gateway.

Functions

• It relays the RF signal to another MiBoxer 2.4 GHz RF product, allowing a larger installation without a stronger transmitter.
• Selectable PWM frequency offers 250 Hz and 16 kHz modes for different installation requirements.
• The PUSH input supports local operation with a compatible momentary switch.

Compatible remotes

• CCT — controller in this mode:
  • B2-W, C1, C1-W, C3P, FUT006, FUT007, K0-B, K0-W
  • K0s-B, K0s-W, K1, K1-B, K2-B, K2-W, K3-B, K3-W
  • K3S-B, K3S-W
• Single Color — controller in this mode: B1, B1-B, FUT087, FUT087-B, K4-B, K4-W, PUSH1-3, PUSH2-3

Technical specifications

We make every effort to ensure that the information provided in this product description is complete, up to date and consistent with the manufacturer's documentation. Please note, however, that the MiBoxer product range is continuously evolving and the manufacturer may introduce updates to product functionality, compatibility, software or technical specifications that may not yet be reflected in our description. If you have any doubts, we recommend checking the latest information and documentation directly on the manufacturer's website.

Latest product information and documentation on the MiBoxer manufacturer website
