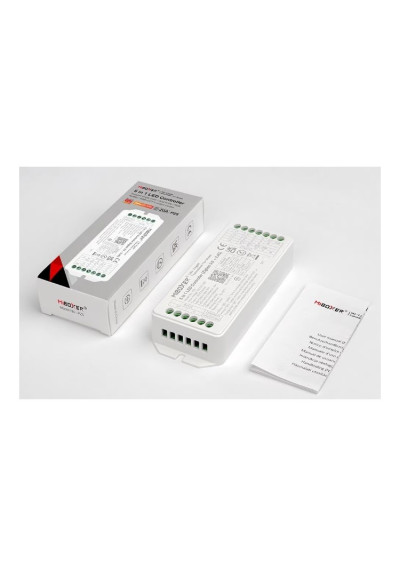

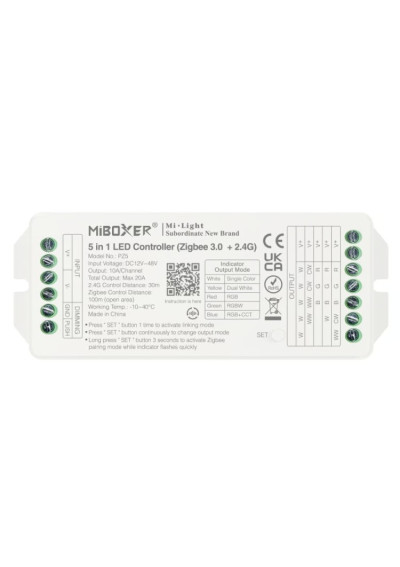

MiBoxer PZ5 – 5 in 1 LED controller Zigbee 3.0

MiBoxer PZ5 – LED controller

PZ5 controls LED strips and lights in Single Color, CCT, RGB, RGBW, RGB+CCT modes. Match the PZ5 output configuration to the connected strip; control uses Zigbee 3.0 + RF 2.4 GHz.

Operating modes and use

• Single Color: single-color LED strips with brightness control.
• CCT: dual-white strips with brightness and color-temperature adjustment.
• RGB: RGB strips with color and brightness adjustment.
• RGBW: RGBW strips, combining RGB colors with a separate white channel.
• RGB+CCT: RGB+CCT strips, combining color with tunable white.

Control

Zigbee 3.0 app control requires a Zigbee 3.0 gateway. The separate 2.4 GHz RF path accepts a paired MiBoxer remote.

Functions

• It relays the RF signal to another MiBoxer 2.4 GHz RF product, allowing a larger installation without a stronger transmitter.
• Music modes link selected lighting effects to sound.

Compatible remotes

• CCT — controller in this mode:
  • B2-W, C1, C1-W, C3P, FUT006, FUT007, K0-B, K0-W
  • K0s-B, K0s-W, K1, K1-B, K2-B, K2-W, K3-B, K3-W
  • K3S-B, K3S-W
• RGB+CCT — controller in this mode: B4, B4-B, C5, C8, FUT089-B, FUT092, PUSH1, PUSH2
• RGBW — controller in this mode: B3-B, B3-W, FUT096-B
• Single Color — controller in this mode: B1, B1-B, FUT087, FUT087-B, K4-B, K4-W, PUSH1-3, PUSH2-3

Technical specifications

We make every effort to ensure that the information provided in this product description is complete, up to date and consistent with the manufacturer's documentation. Please note, however, that the MiBoxer product range is continuously evolving and the manufacturer may introduce updates to product functionality, compatibility, software or technical specifications that may not yet be reflected in our description. If you have any doubts, we recommend checking the latest information and documentation directly on the manufacturer's website.

Latest product information and documentation on the MiBoxer manufacturer website
