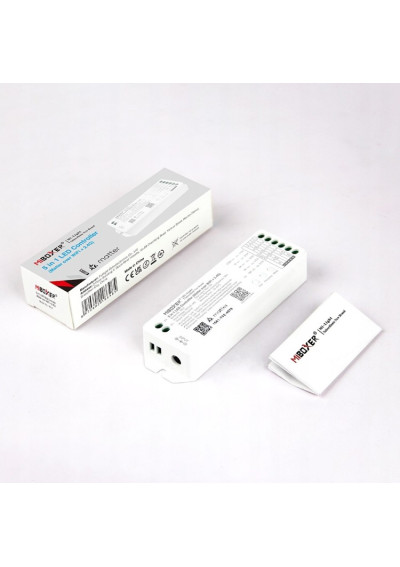

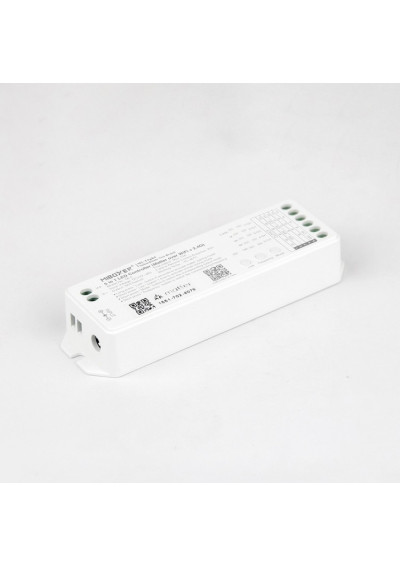

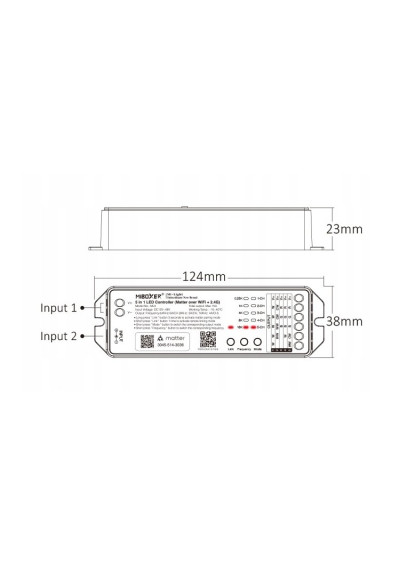

MiBoxer ML5 – 5 in 1 LED controller Matter over Wi-Fi

MiBoxer ML5 – LED controller

ML5 controls LED strips and lights in Single Color, CCT, RGB, RGBW, RGB+CCT modes. Match the ML5 output configuration to the connected strip; control uses Matter over Wi-Fi + RF 2.4 GHz.

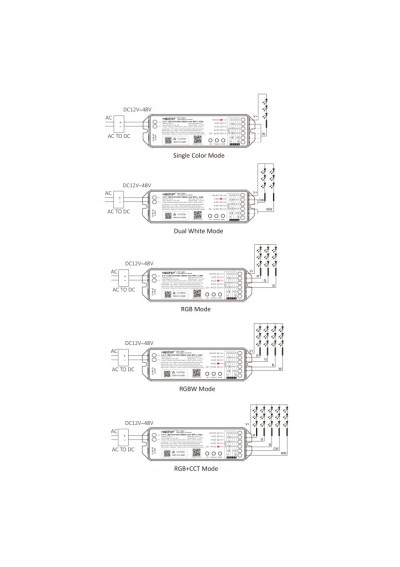

Operating modes and use

• Single Color: single-color LED strips with brightness control.
• CCT: dual-white strips with brightness and color-temperature adjustment.
• RGB: RGB strips with color and brightness adjustment.
• RGBW: RGBW strips, combining RGB colors with a separate white channel.
• RGB+CCT: RGB+CCT strips, combining color with tunable white.

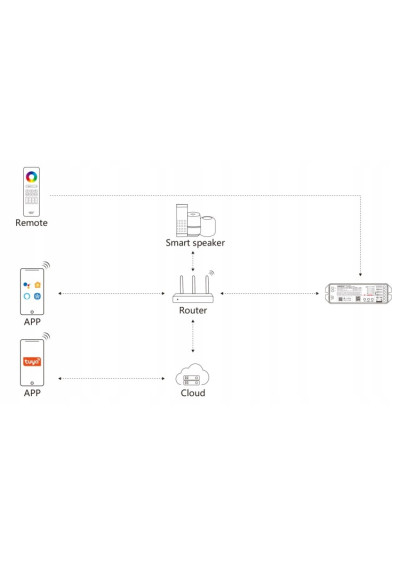

Control

ML5 has built-in Wi-Fi for control through a compatible app without an RF gateway; MiBoxer radio control remains available through a MiBoxer 2.4 GHz RF remote.

Functions

• It relays the RF signal to another MiBoxer 2.4 GHz RF product, allowing a larger installation without a stronger transmitter.
• Mode synchronization keeps the same effect aligned across MiBoxer controllers paired with one remote.
• DND mode helps prevent the light from switching on unexpectedly after power is restored.
• Dynamic modes provide preset lighting effects.

Compatible remotes

• CCT — controller in this mode:
  • B2-W, C1, C1-W, C3P, FUT006, FUT007, K0-B, K0-W
  • K0s-B, K0s-W, K1, K1-B, K2-B, K2-W, K3-B, K3-W
  • K3S-B, K3S-W
• RGB+CCT — controller in this mode: B4, B4-B, C5, C8, FUT089-B, FUT092, PUSH1, PUSH2
• RGBW — controller in this mode: B3-B, B3-W, FUT096-B
• Single Color — controller in this mode: B1, B1-B, FUT087, FUT087-B, K4-B, K4-W, PUSH1-3, PUSH2-3

Technical specifications

We make every effort to ensure that the information provided in this product description is complete, up to date and consistent with the manufacturer's documentation. Please note, however, that the MiBoxer product range is continuously evolving and the manufacturer may introduce updates to product functionality, compatibility, software or technical specifications that may not yet be reflected in our description. If you have any doubts, we recommend checking the latest information and documentation directly on the manufacturer's website.
