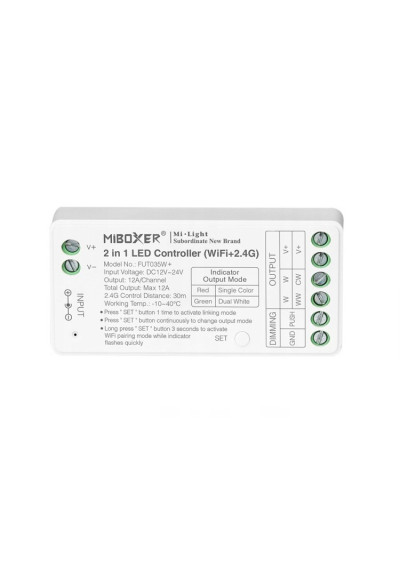

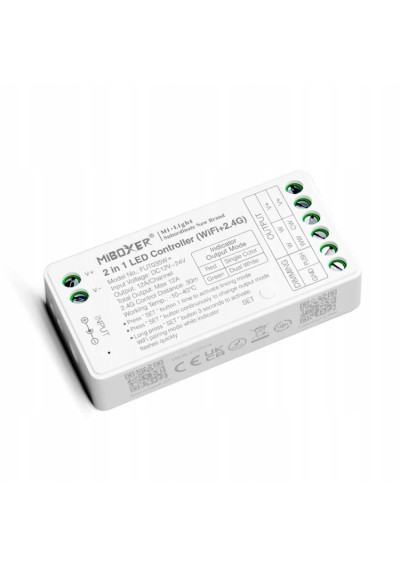

MiBoxer FUT035W+ – 2 in 1 LED controller Wi-Fi and 2.4 GHz RF
MiBoxer FUT035W+ is an LED controller for LED strips and lights in Single Color, CCT modes. Its selectable output configurations let one model serve different strip types. Control: Wi-Fi + RF 2.4 GHz. Input 12–24 V DC. RF range up to 30 m. Wi-Fi app control does not require a separate RF gateway.
MiBoxer FUT035W+ – 2 in 1 LED controller Wi-Fi and 2.4 GHz RF
191.05 PLN
Shipment in 8-10 working days
005x_miboxer_FUT035W+
MiBoxer FUT035W+ is an LED controller for LED strips and lights in Single Color, CCT modes. Its selectable output configurations let one model serve different strip types. Control: Wi-Fi + RF 2.4 GHz. Input 12–24 V DC. RF range up to 30 m. Wi-Fi app control does not require a separate RF gateway.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
MiBoxer FUT035W+ – LED controller
FUT035W+ controls LED strips and lights in Single Color, CCT modes. Match the FUT035W+ output configuration to the connected strip; control uses Wi-Fi + RF 2.4 GHz.
Operating modes and use
- Single Color: single-color LED strips with brightness control.
- CCT: dual-white strips with brightness and color-temperature adjustment.
Control
FUT035W+ has built-in Wi-Fi for control through a compatible app without an RF gateway; MiBoxer radio control remains available through a MiBoxer 2.4 GHz RF remote.
Functions
- It relays the RF signal to another MiBoxer 2.4 GHz RF product, allowing a larger installation without a stronger transmitter.
- Selectable PWM frequency offers 250 Hz and 16 kHz modes for different installation requirements.
- DND mode helps prevent the light from switching on unexpectedly after power is restored.
- Music modes link selected lighting effects to sound.
- Lighting scenes can be selected or saved according to the device’s supported mode.
- Scheduling in the app sets lighting on and off times.
Compatible remotes
- CCT — controller in this mode:
- B2-W, C1, C1-W, C3P, FUT006, FUT007, K0-B, K0-W
- K0s-B, K0s-W, K1, K1-B, K2-B, K2-W, K3-B, K3-W
- K3S-B, K3S-W
- Single Color — controller in this mode: B1, B1-B, FUT087, FUT087-B, K4-B, K4-W, PUSH1-3, PUSH2-3
Technical specifications
| Model | FUT035W+ |
|---|---|
| Product type | LED controller |
| Modes | Single Color, CCT |
| Input voltage | 12–24 V DC |
| Output current | 12 A/kanał |
| Total current | 12 A |
| Connectivity | Wi-Fi + RF 2.4 GHz |
| RF range | 30 m |
| Zones | 1 |
| Operating temperature | -10–40 °C |
We make every effort to ensure that the information provided in this product description is complete, up to date and consistent with the manufacturer's documentation. Please note, however, that the MiBoxer product range is continuously evolving and the manufacturer may introduce updates to product functionality, compatibility, software or technical specifications that may not yet be reflected in our description. If you have any doubts, we recommend checking the latest information and documentation directly on the manufacturer's website.
Latest product information and documentation on the MiBoxer manufacturer website
005x_miboxer_FUT035W+
Data sheet
- Type of LED driver
- LED controller
- LED Driver outputs type
- 2 in 1
- Input Voltage of LED driver
- 12–24 V DC
- Max. output current of LED controller
- 12 A
