39.83 PLN
Shipment in 1-2 business days
Controllers & remotes
005x_miboxer_FUT039S

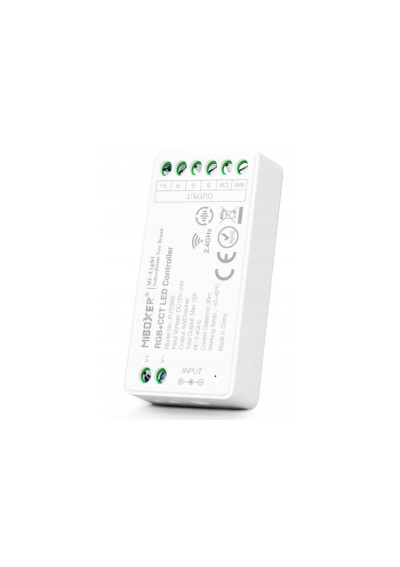

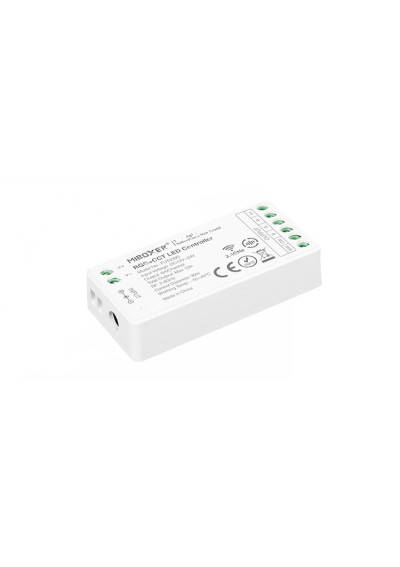

MiBoxer FUT039S is an LED controller for LED strips and lights in RGB+CCT mode. Control: RF 2.4 GHz. Input 12–24 V DC. RF range up to 30 m. App control needs a separate RF gateway. It relays the RF signal to another MiBoxer 2.4 GHz RF product, allowing a larger installation without a stronger transmitter.

Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

MiBoxer FUT039S – LED controller

FUT039S controls LED strips and lights in RGB+CCT mode. Match the FUT039S output configuration to the connected strip; control uses RF 2.4 GHz.

Operating modes and use

  • RGB+CCT: RGB+CCT strips, combining color with tunable white.

Control

Control uses RF 2.4 GHz. App control requires a separate 2.4 GHz RF gateway.

Functions

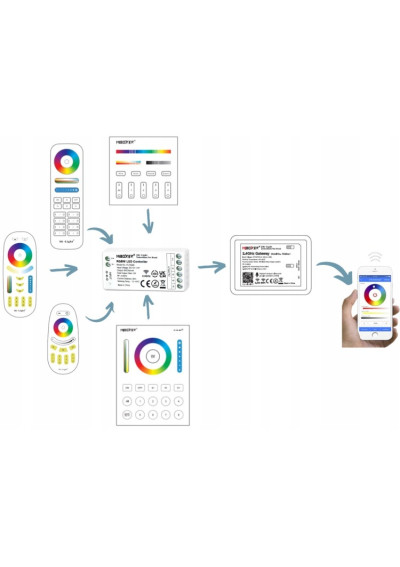

  • It relays the RF signal to another MiBoxer 2.4 GHz RF product, allowing a larger installation without a stronger transmitter.
  • Mode synchronization keeps the same effect aligned across MiBoxer controllers paired with one remote.
  • Selectable PWM frequency offers 250 Hz and 16 kHz modes for different installation requirements.
  • Saturation adjustment changes color intensity while retaining the selected hue.

Compatible remotes

  • RGB+CCT: B4, B4-B, C5, C8, FUT089-B, FUT092, PUSH1, PUSH2

Technical specifications

ModelFUT039S
Product typeLED controller
ModesRGB+CCT
Input voltage12–24 V DC
Output current6 A/kanał
Total current12 A
ConnectivityRF 2.4 GHz
RF range30 m
Operating temperature-10–40 °C

We make every effort to ensure that the information provided in this product description is complete, up to date and consistent with the manufacturer's documentation. Please note, however, that the MiBoxer product range is continuously evolving and the manufacturer may introduce updates to product functionality, compatibility, software or technical specifications that may not yet be reflected in our description. If you have any doubts, we recommend checking the latest information and documentation directly on the manufacturer's website.

Miboxer
005x_miboxer_FUT039S

Data sheet

Type of LED driver
LED controller
LED Driver outputs type
RGB+CCT
Input Voltage of LED driver
12–24 V DC
Max. output current of LED controller
12 A
