Digital LED Strips (WS2811, WS2812, WS2813, WS2815) — structure, features, programming

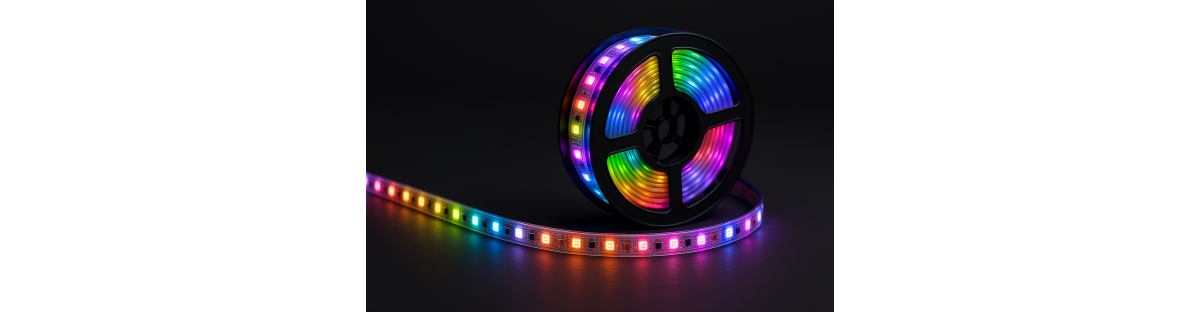

Digital LED strips ( addressable, argb ) let you control each LED—or pixel—individually. Instead of dimming the entire strip at once, every pixel has a tiny integrated driver. It receives data and generates PWM for the R-G-B channels (8-bit per channel, 24-bit color). This enables precise color scenes, gradients, chases, and complex animations with a simple three-wire connection: VCC, GND, DATA.

Digital led / argb chip overview

• WS2811 — External RGB driver commonly used on 12 V strips where one IC controls a 3-LED segment. Good for longer runs thanks to reduced voltage drop.

• WS2812 / WS2812B — Driver integrated inside the 5050 LED package (5 V). Each LED is an independent pixel, ideal for dense, high-resolution effects.

• WS2813 — Evolution of WS2812 with a backup data line (DI/BI), so the chain keeps working even if one pixel fails—higher reliability for installations.

• WS2815 — 12 V addressable pixels with internal step-down to 5 V plus a redundant data input like WS2813. Easier power distribution and fewer power injections on long runs.

How are digital led strips built

• A pixel equals either a 5050 RGB LED with a built-in controller (WS2812/WS2813/WS2815) or a 3-LED segment driven by an external IC (WS2811).

• Single-wire serial protocol at ~800 kHz (timing-based), daisy-chained from pixel to pixel.

• On-pixel PWM reduces load on the controller and ensures smooth dimming.

• Variants exist with RGBW or tunable white (CCT) for extended color rendering.

Key advantages of argb led strips

• Per-pixel control: independent color and brightness for every LED.

• Scalability: from short decorative accents to architectural façades and stage designs.

• Reliability: WS2813/WS2815 keep data flowing past a failed LED thanks to the backup line.

• Simple wiring: power plus a single data line for long, complex effects.

Installation essentials

• Power distribution: plan for current at full-white; use proper wire gauges, fusing, and power injection (especially for 5 V). WS2815/12 V tolerate distance better.

• Logic levels: many MCUs output 3.3 V; a 3.3→5 V level shifter at the strip input improves signal integrity.

• Signal hygiene: short data leads, 33–100 Ω series resistor on DATA, and a large electrolytic capacitor at the strip’s power entry help reduce noise.

• Thermal management: dense, bright installs benefit from aluminum profiles for heat spreading and optics.

Programming digital led controllers — where the magic happens

Controller architecture

• MCUs: ESP32, STM32, RP2040 and similar (using RMT/I2S/SPI/DMA for precise timing).

• Parallel outputs: multiple DATA lines increase total pixel count and FPS for large rigs.

• Inputs & protocols: Art-Net / sACN (E1.31), DMX512, HTTP/MQTT APIs, local scenes, SD card playlists.

• UI & connectivity: onboard web UI, mobile setup, OTA firmware updates, logging and diagnostics.

Visual quality & performance

• Gamma correction (≈2.2–2.8) and temporal dithering for smooth fades at low brightness.

• Pixel mapping: linear runs, matrices, rings, or custom 2D/3D layouts with logical “segments.”

• Frame-rate strategy: at ~800 kHz, expect ~30–60 FPS depending on pixel count; parallelization and segmentation maintain fluid motion at scale.

• Power limiting: software current caps automatically reduce brightness to protect PSUs and wiring.

• Ecosystem: proven libraries like FastLED and Adafruit NeoPixel, or bespoke C/C++ firmware for top performance, reliability, and security.

Integrations

• Show control: DMX from lighting consoles, Art-Net/sACN over Ethernet/Wi-Fi.

• Building & IoT: HTTP/MQTT/WebSocket APIs for BMS/HA systems.

• Audio-reactive: mic/line-in analysis for beat-synchronized effects.

• Sensors & automation: light/motion/time inputs for context-aware scenes and energy savings.

We design and build the controllers you need

We design, program, and manufacture custom controllers for WS2811/WS2812/WS2813/WS2815 strips. Our deliverables include:

• Single- and multi-output controllers with precise timing and robust level shifting,

• High-performance firmware (C/C++, RTOS, DMA, dithering, gamma, pixel mapping, power limit),

• Art-Net/sACN/DMX gateways, plus HTTP/MQTT APIs for automation,

• Web configuration panels, OTA updates, logs, and remote diagnostics,

• Custom effect engines and calibration tools for consistent color across batches.

Whether it’s a few meters of accent lighting or a tens-of-thousands-pixel installation, we provide the full package: strip and PSU selection, wiring design, controller hardware, tailored firmware, on-site commissioning, and documentation.

Tell us your pixel count, preferred effects, and control source (DMX/Art-Net/app/automation)—we’ll architect a reliable, scalable system and deliver it ready to run.
