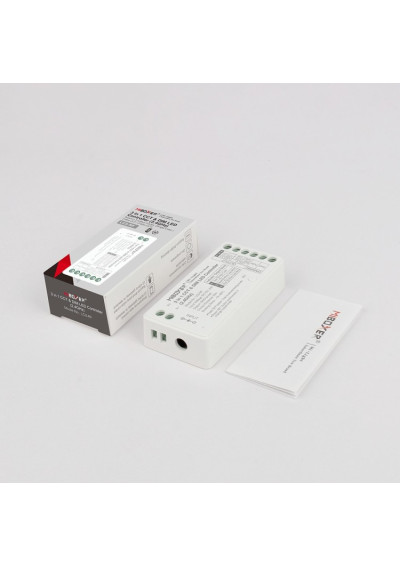

MiBoxer LC3-RF – 3 in 1 LED controller 2.4 GHz RF

MiBoxer LC3-RF – LED controller

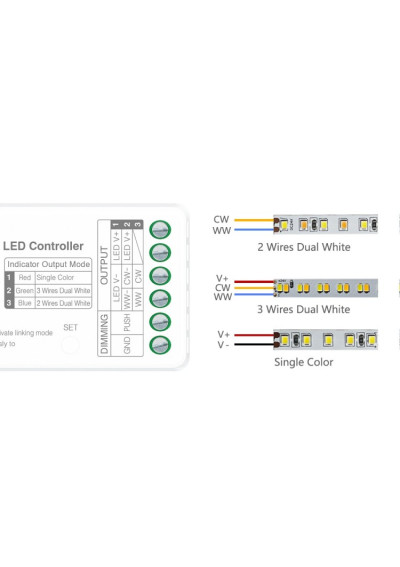

LC3-RF combines three output configurations in one controller. Select the mode that matches the strip wiring: a conventional single-color strip, a two-wire dual-white strip, or a standard CCT strip with a common positive and separate warm-white/cool-white conductors.

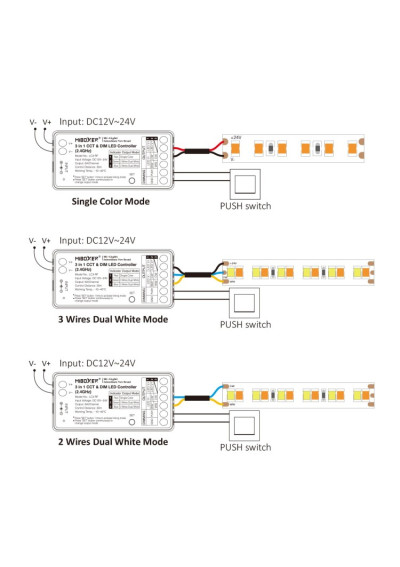

Operating modes and use

• Single Color: single-color LED strips with brightness control.
• 2-wire CCT: two-wire dual-white strips.
• 3-wire CCT: standard three-wire dual-white strips.

Control

Control uses RF 2.4 GHz. App control requires a separate 2.4 GHz RF gateway.

Functions

• It relays the RF signal to another MiBoxer 2.4 GHz RF product, allowing a larger installation without a stronger transmitter.
• DND mode helps prevent the light from switching on unexpectedly after power is restored.
• Music modes link selected lighting effects to sound.
• The dimming control provides 4,096 levels and can reach 0.1% brightness.
• The PUSH input supports local operation with a compatible momentary switch.
• Up to 12 MiBoxer 2.4 GHz RF remotes can be paired with one controller.

Installation and selection

Single Color mode adjusts brightness; both CCT modes adjust the warm/cool white balance as well as brightness. Output-current limits are: up to 10 A in Single Color mode and up to 6 A in CCT mode. The RF control distance is 30 m. Tuya Smart and voice control require a separate MiBoxer 2.4 GHz gateway.

Compatible remotes

• 2-wire / 3-wire CCT — controller in this mode:
  • B2-W, C1, C1-W, C3P, FUT006, FUT007, K0-B, K0-W
  • K0s-B, K0s-W, K1, K1-B, K2-B, K2-W, K3-B, K3-W
  • K3S-B, K3S-W
• Single Color — controller in this mode: B1, B1-B, FUT087, FUT087-B, K4-B, K4-W, PUSH1-3, PUSH2-3

Technical specifications

We make every effort to ensure that the information provided in this product description is complete, up to date and consistent with the manufacturer's documentation. Please note, however, that the MiBoxer product range is continuously evolving and the manufacturer may introduce updates to product functionality, compatibility, software or technical specifications that may not yet be reflected in our description. If you have any doubts, we recommend checking the latest information and documentation directly on the manufacturer's website.
