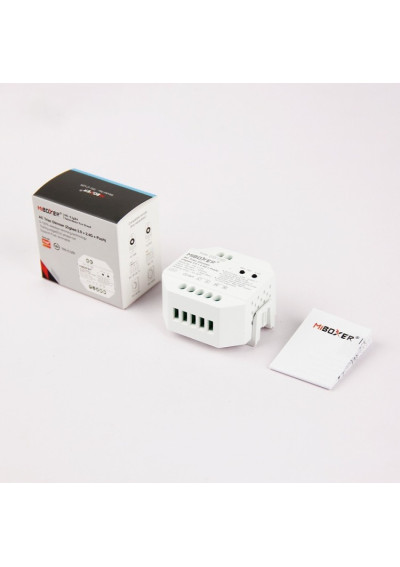

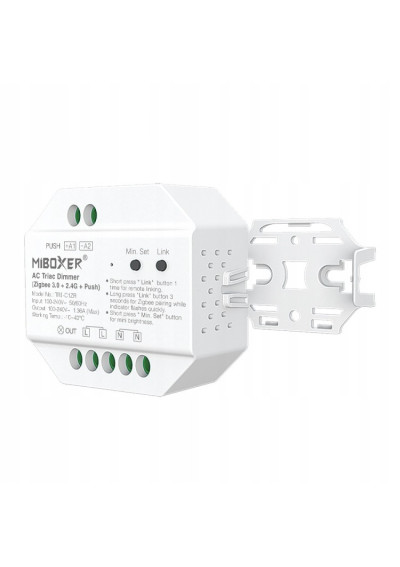

MiBoxer TRI-C1ZR – TRIAC dimmer Zigbee 3.0
MiBoxer TRI-C1ZR is a TRIAC phase-cut dimmer for compatible 100–240 V AC lamps. It supports Zigbee 3.0, 2.4 GHz RF remotes and a local PUSH switch. Zigbee app control requires a compatible gateway; the load limit is 150 W at 110 V or 300 W at 220 V. The PUSH input supports local operation with a compatible momentary switch.
MiBoxer TRI-C1ZR – TRIAC dimmer Zigbee 3.0
100.80 PLN
Shipment in 1-2 business days
005x_miboxer_TRI-C1ZR
MiBoxer TRI-C1ZR is a TRIAC phase-cut dimmer for compatible 100–240 V AC lamps. It supports Zigbee 3.0, 2.4 GHz RF remotes and a local PUSH switch. Zigbee app control requires a compatible gateway; the load limit is 150 W at 110 V or 300 W at 220 V. The PUSH input supports local operation with a compatible momentary switch.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
MiBoxer TRI-C1ZR – TRIAC phase-cut dimmer
TRI-C1ZR varies the brightness of phase-cut compatible loads. Three control paths—Zigbee 3.0, RF and PUSH—allow the interface to suit the installation.
Control
Zigbee 3.0 app control requires a Zigbee 3.0 gateway. The separate 2.4 GHz RF path accepts a paired MiBoxer remote.
Functions
- The PUSH input supports local operation with a compatible momentary switch.
Installation and selection

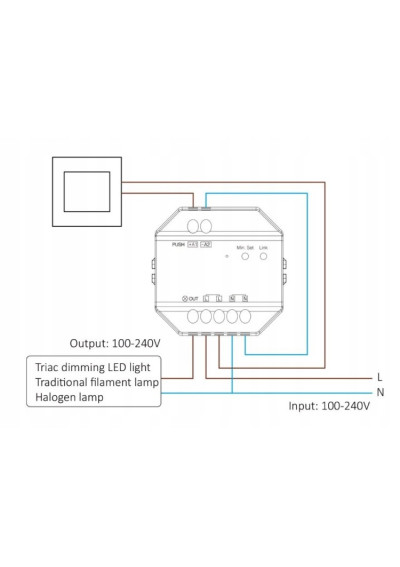

Confirm that the lamp or driver supports phase-cut dimming. The maximum load is 150 W at 110 V or 300 W at 220 V; mains installation must follow local electrical requirements.
Compatible remotes
- Single Color: B1, B1-B, FUT087, FUT087-B, K4-B, K4-W, PUSH1-3, PUSH2-3
Technical specifications
| Model | TRI-C1ZR |
|---|---|
| Product type | TRIAC phase-cut dimmer |
| Input voltage | 100–240 V AC |
| Output current | 1.36 A |
| Output power | 150W @110V; 300W @220V |
| Connectivity | Zigbee 3.0 + RF 2.4 GHz |
| RF range | 30 m |
| IP rating | IP20 |
| Operating temperature | -10–40 °C |
We make every effort to ensure that the information provided in this product description is complete, up to date and consistent with the manufacturer's documentation. Please note, however, that the MiBoxer product range is continuously evolving and the manufacturer may introduce updates to product functionality, compatibility, software or technical specifications that may not yet be reflected in our description. If you have any doubts, we recommend checking the latest information and documentation directly on the manufacturer's website.
005x_miboxer_TRI-C1ZR
Data sheet
- IP grade
- IP20
- Type of LED driver
- TRIAC dimmer
- Input Voltage of LED driver
- 100–240 V AC
- Max. output current of LED controller
- 1.36 A
