MiBoxer TZ5 – 5 in 1 LED controller Zigbee 3.0
MiBoxer TZ5 is a track LED controller for LED strips and lights in Single Color, CCT, RGB, RGBW, RGB+CCT modes. Its selectable output configurations let one model serve different strip types. Control: Zigbee 3.0 + RF 2.4 GHz. Input 12–48 V DC. RF range up to 30 m. Zigbee app control requires a compatible gateway.
MiBoxer TZ5 – 5 in 1 LED controller Zigbee 3.0
162.59 PLN
Shipment in 1-2 business days
005x_miboxer_TZ5
MiBoxer TZ5 is a track LED controller for LED strips and lights in Single Color, CCT, RGB, RGBW, RGB+CCT modes. Its selectable output configurations let one model serve different strip types. Control: Zigbee 3.0 + RF 2.4 GHz. Input 12–48 V DC. RF range up to 30 m. Zigbee app control requires a compatible gateway.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
MiBoxer TZ5 – track LED controller
TZ5 controls LED strips and lights in Single Color, CCT, RGB, RGBW, RGB+CCT modes. Match the TZ5 output configuration to the connected strip; control uses Zigbee 3.0 + RF 2.4 GHz.

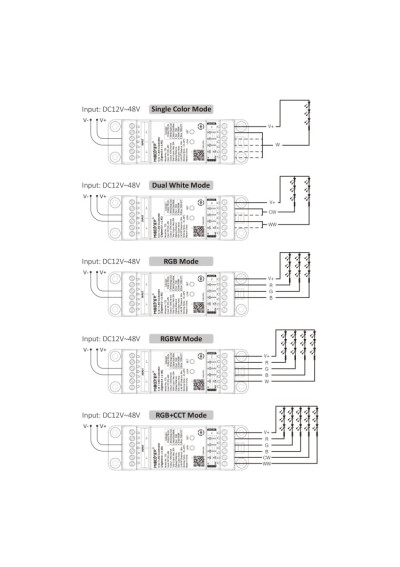

Operating modes and use
- Single Color: single-color LED strips with brightness control.
- CCT: dual-white strips with brightness and color-temperature adjustment.
- RGB: RGB strips with color and brightness adjustment.
- RGBW: RGBW strips, combining RGB colors with a separate white channel.
- RGB+CCT: RGB+CCT strips, combining color with tunable white.
Control
Zigbee 3.0 app control requires a Zigbee 3.0 gateway. The separate 2.4 GHz RF path accepts a paired MiBoxer remote.
Functions
- It relays the RF signal to another MiBoxer 2.4 GHz RF product, allowing a larger installation without a stronger transmitter.
- Mode synchronization keeps the same effect aligned across MiBoxer controllers paired with one remote.
- DND mode helps prevent the light from switching on unexpectedly after power is restored.
- Music modes link selected lighting effects to sound.

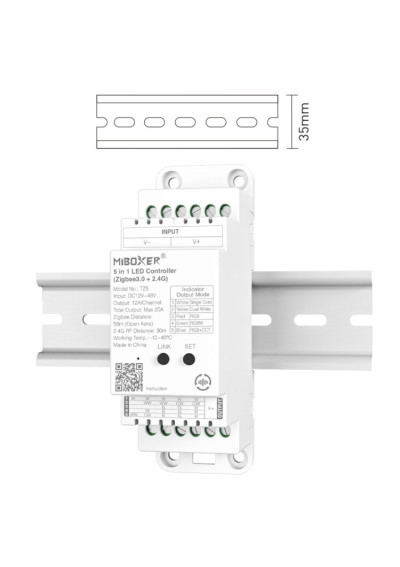

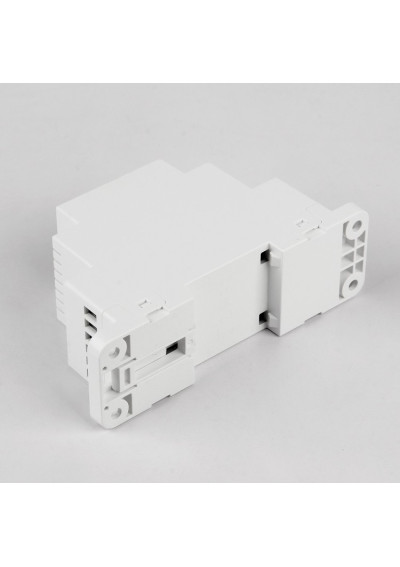

- The enclosure is intended for a standard 35 mm DIN rail.
Compatible remotes
- CCT — controller in this mode:
- B2-W, C1, C1-W, C3P, FUT006, FUT007, K0-B, K0-W
- K0s-B, K0s-W, K1, K1-B, K2-B, K2-W, K3-B, K3-W
- K3S-B, K3S-W
- RGB+CCT — controller in this mode: B4, B4-B, C5, C8, FUT089-B, FUT092, PUSH1, PUSH2
- RGBW — controller in this mode: B3-B, B3-W, FUT096-B
- Single Color — controller in this mode: B1, B1-B, FUT087, FUT087-B, K4-B, K4-W, PUSH1-3, PUSH2-3
Technical specifications
| Model | TZ5 |
|---|---|
| Product type | track LED controller |
| Modes | Single Color, CCT, RGB, RGBW, RGB+CCT |
| Input voltage | 12–48 V DC |
| Output current | 12 A/kanał |
| Total current | 20 A |
| Connectivity | Zigbee 3.0 + RF 2.4 GHz |
| RF range | 30 m |
| IP rating | IP20 |
We make every effort to ensure that the information provided in this product description is complete, up to date and consistent with the manufacturer's documentation. Please note, however, that the MiBoxer product range is continuously evolving and the manufacturer may introduce updates to product functionality, compatibility, software or technical specifications that may not yet be reflected in our description. If you have any doubts, we recommend checking the latest information and documentation directly on the manufacturer's website.
Latest product information and documentation on the MiBoxer manufacturer website
005x_miboxer_TZ5
Data sheet
- IP grade
- IP20
- Type of LED driver
- LED controller
- Input Voltage of LED driver
- 12–48 V DC
- Max. output current of LED controller
- 20 A
