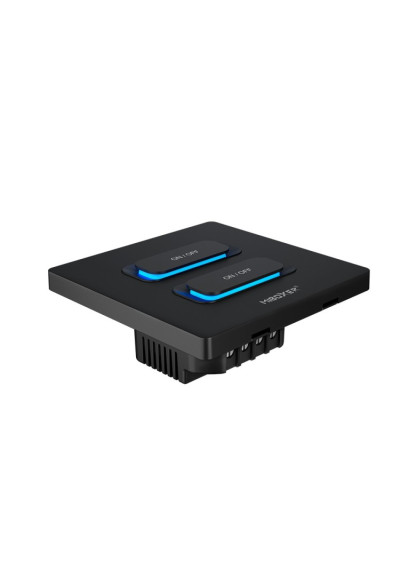

MiBoxer ESR2-B – two-gang 2.4 GHz RF wall switch
MiBoxer ESR2-B is a two-gang wall switch for independent on/off control of two AC circuits. It uses 2.4 GHz RF with a 30 m control range and pairs with the C1 remote. Tuya Smart app and voice control require a MiBoxer 2.4 GHz gateway.
MiBoxer ESR2-B – two-gang 2.4 GHz RF wall switch
107.31 PLN
Shipment in 1-2 business days
005x_miboxer_ESR2-B
MiBoxer ESR2-B is a two-gang wall switch for independent on/off control of two AC circuits. It uses 2.4 GHz RF with a 30 m control range and pairs with the C1 remote. Tuya Smart app and voice control require a MiBoxer 2.4 GHz gateway.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
MiBoxer ESR2-B – two-gang 2.4 GHz RF wall switch

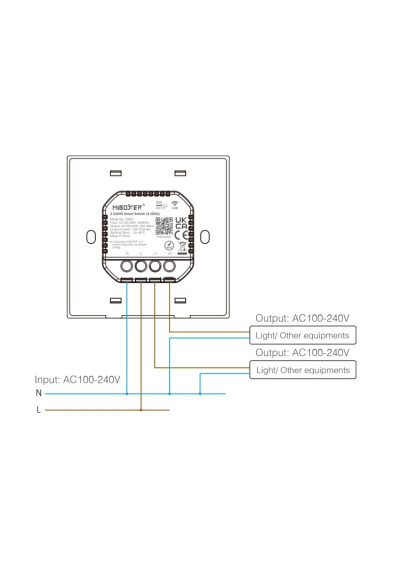

ESR2-B independently switches two circuits supplied at 100–240 V AC. Each output handles up to 10 A, with a combined limit of 20 A. This is an on/off switch; the adjustable brightness applies to the panel indicator, not the load outputs.
Functions
- Two independent AC outputs switch lighting or other electrical loads.
- A built-in presence sensor lights the panel indicator when a person is detected; the indicator brightness is adjustable.
- The wall panel measures 86 × 86 mm and has an IP20 rating.
Control and integration
The 2.4 GHz RF link has a stated range of up to 30 m. The manual documents pairing with the MiBoxer C1 remote. Tuya Smart app and voice control require a separate 2.4 GHz gateway.
Compatible remote
MiBoxer C1 remote – pairing is covered by the manufacturer manual.
Technical specifications
| Model | ESR2-B |
|---|---|
| Type | two-gang load switch |
| Supply | 100–240 V AC, 50/60 Hz |
| Output voltage | 100–240 V AC |
| Current per channel | 10 A |
| Maximum total current | 20 A |
| Control | 2.4 GHz RF |
| RF range | 30 m |
| Operating temperature | −10 to +40 °C |
| IP rating | IP20 |
| Panel dimensions | 86 × 86 mm |
We make every effort to ensure that the information provided in this product description is complete, up to date and consistent with the manufacturer's documentation. Please note, however, that the MiBoxer product range is continuously evolving and the manufacturer may introduce updates to product functionality, compatibility, software or technical specifications that may not yet be reflected in our description. If you have any doubts, we recommend checking the latest information and documentation directly on the manufacturer's website.
Latest product information and documentation on the MiBoxer manufacturer website
005x_miboxer_ESR2-B
Data sheet
- Supply Voltage
- 100–240 V AC
- Output voltage
- 100–240 V AC
- Maximum output current
- 20 A total
- Control method
- 2.4 GHz RF
- Control range
- 30 m
