LED power supply Tridonic LC 75/900-1800/54 0-10V NAX lp EXC2 UNV
LED power supply Tridonic LC 75W 900-1800mA 54V 0-10V NAX lp EXC2 UNV is a constant current LED driver rated up to 75 W. Values for individual settings are shown in the operating-point table. Documented interfaces and configuration methods: NFC.
LED power supply Tridonic LC 75/900-1800/54 0-10V NAX lp EXC2 UNV
345.00 PLN
Shipment in 8-10 working days
zas_tridonic_87500850
LED power supply Tridonic LC 75W 900-1800mA 54V 0-10V NAX lp EXC2 UNV is a constant current LED driver rated up to 75 W. Values for individual settings are shown in the operating-point table. Documented interfaces and configuration methods: NFC.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LC 75W 900-1800mA 54V 0-10V NAX lp EXC2 UNV is a constant current LED driver in the Driver LC 75W 900–1800mA 0-10V NFC AUX lp EXC2 UNV family. Official article number 87500850 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 87500850 |
|---|---|
| Manufacturer family | Driver LC 75W 900–1800mA 0-10V NFC AUX lp EXC2 UNV |
| Manufacturer product group | Linear drivers |
| Supply voltage | 120 – 277 V |
| AC voltage range | 108 – 305 V |
| Mains frequency | 50 / 60 Hz |
| Typ. current (at XXX V, 60 Hz, full load) | 314 mA; 726 mA |
| Leakage current | <0.75 mA; <0.75 mA |
| Typ. input current in no-load operation | 27 mA; 14 mA |
| In-rush current (peak / duration at XXX V) | 13.9 A / 18 µs; 5 A / 25 µs |
| Max. input power | 85 W; 87.3 W |
| Typ. power input on stand-by XXX V | <0.5 W; <0.5 W |
| Typ. input power in no-load operation | 0.9 W; 0.5 W |
| Typ. efficiency at 120 V | 88.9 %; 86.8 % |
| λ over full operating range (min.) | 0.98; 0.99 |
| THD (at XXX V, 60 Hz, full load) | <20 %; <10 % |
| Starting time | ≤0.5 s; ≤0.5 s |
| Turn off time | <0.03 s |
| Hold on time | <0.02 s |
| Output current tolerance, min./full load | ±5 % |
| Max. output current peak (non-repetitive) + max. peak output current | ≤ output current +5 % |
| Output LF current ripple (< 120 Hz) / Current ripple at full load | ±5 % |
| Output P_ST_LM (at full load) | ≤1 |
| Output SVM (at full load) | ≤0.4 |
| Max. output voltage | 60 V |
| Dimming range | 1–100 % |
| Mains surge capability (between L - N) | 2 kV |
| Mains surge capability (between L/N - PE) | 2.5 kV |
| Surge voltage at output side (against PE) | 0.5 kV |
| Type of protection | IP20 |

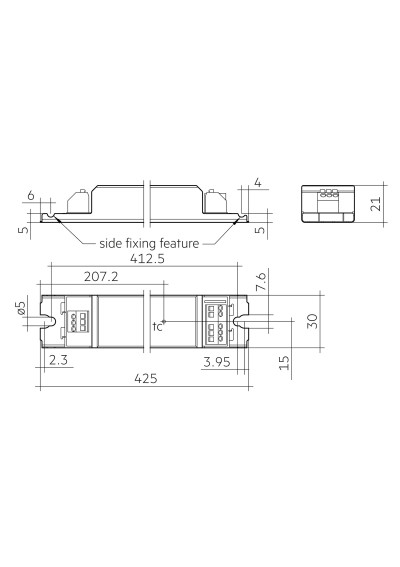

| Length | 425 mm |
| Width | 30 mm |
| Height | 21 mm |
| Lifetime | up to 100000 h |
| Guarantee | 5 years |
| Output mode | CC |
| Maximum output power [W] | 75 |
| Input voltage | 120 – 277 V |
| IP grade | IP20 |
| Warranty [years] | 5 |
| Dimensions L×W×H | 425 × 30 × 21 mm |
| Lifetime [h] | up to 100000 h |
| Product net weight | 0.367 kg |
| Interfaces and configuration | NFC |
| Dimming | Yes |
| Configuration method | NFC |
| short_circuit_protection | Yes |
| overload_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | Constant current LED driver |
| Manufacturer note: Product description | Dimmable via 0 ... 10 V interface (incl. stand-by) |
| Manufacturer note: Product description | Dimming range 1 – 100 % (incl. stand-by) |
| Manufacturer note: Product description | UL8750 with class 2 output based on UL1310 |
| Manufacturer note: Product description | UL Listed Class P |
| Manufacturer note: Product description | FCC Part 15 Class A |
| Manufacturer note: Product description | Adjustable output current between 900 and 1,800 mA with NFC |
| Manufacturer note: Product description | Max. output power 75 W |
| Manufacturer note: Product description | Up to 88.9 % efficiency |
| Manufacturer note: Product description | Meets Strictest Flicker Free Performance Standards |
| Manufacturer note: Product description | Nominal lifetime up to 100,000 h |
| Manufacturer note: Product description | 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Housing properties | Casing: metal, white |
| Manufacturer note: Housing properties | Type of protection IP20 |
| Manufacturer note: Housing properties | Dry and damp location |
| Manufacturer note: Functions | Adjustable output current in 1-mA-steps (NFC) |
| Manufacturer note: Functions | 24 V AUX output |
| Manufacturer note: Functions | Fade-off time programmable |
| Manufacturer note: Functions | Protective features (overtemperature, short-circuit, overload, no-load, input voltage range) |
| Manufacturer note: Benefits | Operating window for maximum compatibility |
| Manufacturer note: Benefits | Added energy savings with dimming via 0 .... 10 V interface |
| Manufacturer note: Benefits | Configurable via NFC |
| Manufacturer note: Benefits | Meets California Title 24 |
| Manufacturer note: Benefits | Tailor your dimming response with either Linear, Logarithmic or Square Dimming Curves |
| Manufacturer note: Typical applications | For linear/area lighting in office, education, healthcare, and general lighting applications |
Operating points
| Point | Output current | Min./Max. forward voltage | Typ. current consumption | Output power | Typ. power consumption | Ambient temperature ta | tc point max |
|---|---|---|---|---|---|---|---|
| 1 | 900.0 mA | 20 V; 54 V | 207 mA; 447 mA | 48.6 W; 48.6 W | 53.6 W; 55.2 W | -25–55 °C | 65.0 °C |
| 2 | 1000.0 mA | 20 V; 54 V | 228 mA; 497 mA | 54 W; 54 W | 60.1 W; 60.1 W | -25–55 °C | 70.0 °C |
| 3 | 1100.0 mA | 20 V; 54 V | 251 mA; 555 mA | 59.4 W; 59.4 W | 65.4 W; 66.6 W | -25–55 °C | 70.0 °C |
| 4 | 1200.0 mA | 20 V; 54 V | 278 mA; 608 mA | 64.8 W; 64.8 W | 71.7 W; 72.9 W | -25–55 °C | 70.0 °C |
| 5 | 1300.0 mA | 20 V; 54 V | 294 mA; 676 mA | 70.2 W; 70.2 W | 78.6 W; 80.8 W | -25–55 °C | 75.0 °C |
| 6 | 1400.0 mA | 20 V; 53.6 V | 318 mA; 732 mA | 75 W; 75 W | 84.9 W; 87.2 W | -25–55 °C | 75.0 °C |
| 7 | 1500.0 mA | 20 V; 50 V | 311 mA; 728 mA | 75 W; 75 W | 82.8 W; 85.9 W | -25–55 °C | 75.0 °C |
| 8 | 1600.0 mA | 20 V; 46.9 V | 313 mA; 736 mA | 75 W; 75 W | 84.5 W; 86.7 W | -25–55 °C | 80.0 °C |
| 9 | 1700.0 mA | 20 V; 44 V | 314 mA; 745 mA | 74.8 W; 74.8 W | 84.4 W; 87.5 W | -25–55 °C | 80.0 °C |
| 10 | 1800.0 mA | 20 V; 41.7 V | 317 mA; 738 mA | 75 W; 75 W | 85.1 W; 86.9 W | -25–55 °C | 80.0 °C |
The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.
Installation / application
Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
zas_tridonic_87500850
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 75
- Output Current of CC power supply [mA]
- 900-1800
- CC operating window
- 20-54
- Min. output voltage of led driver (CC)
- 20
- Max. output voltage of led driver (CC)
- 54
- Dimensions (L x W x H) [mm]
- 425 × 30 × 21 mm
- IP grade
- 20
- Length [mm]
- 425
- Width [mm]
- 30
- Height/thickness [mm]
- 21
- Warranty [years]
- 5
- Input voltage [V]
- 120-277
- Min. current of CC driver [mA]
- 900
- Max. current of CC driver [mA]
- 1800
