LED power supply Tridonic DC 48V MICRO 14/50-700/42 bDW NF T
LED power supply Tridonic DC 48V MICRO 14W 50-700mA 42V bDW NF T is a constant current LED driver rated up to 14.7 W. Its adjustable output current range is 50–700 mA. Documented interfaces and configuration methods: DALI, NFC, basicDIM Wireless, Casambi.
LED power supply Tridonic DC 48V MICRO 14/50-700/42 bDW NF T
521.00 PLN
Shipment in 1-2 business days
zas_tridonic_28005580
LED power supply Tridonic DC 48V MICRO 14W 50-700mA 42V bDW NF T is a constant current LED driver rated up to 14.7 W. Its adjustable output current range is 50–700 mA. Documented interfaces and configuration methods: DALI, NFC, basicDIM Wireless, Casambi.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days

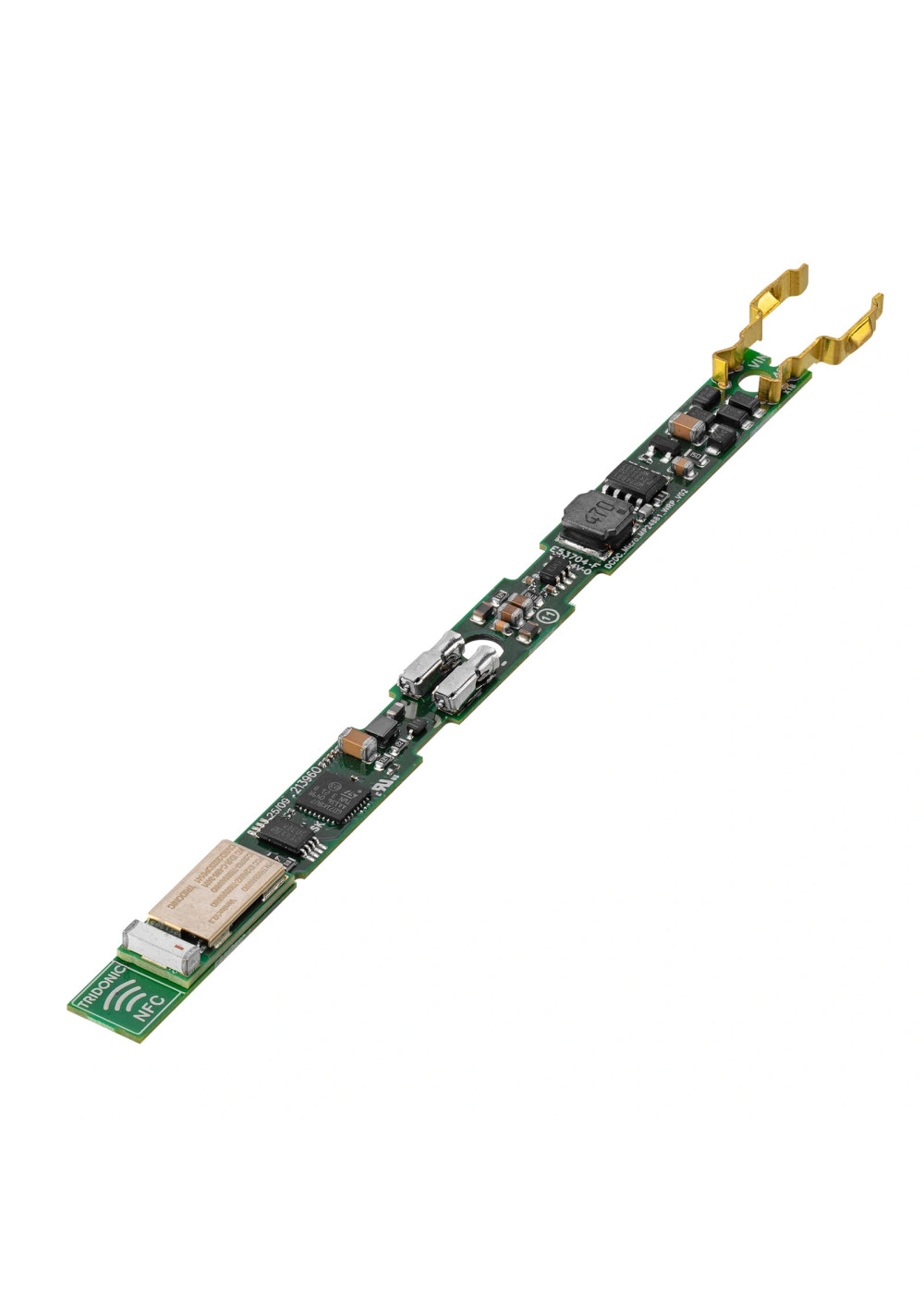

LED power supply Tridonic DC 48V MICRO 14W 50-700mA 42V bDW NF T is a constant current LED driver in the DC 48V MICRO 14W 50–700mA bDW NF T family. Official article number 28005580 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 28005580 |
|---|---|
| Manufacturer family | DC 48V MICRO 14W 50–700mA bDW NF T |
| Manufacturer product group | Drivers without housing |
| DC voltage input | 48.0 V |
| DC voltage range | 46 – 51 V |
| Mains frequency | 0 Hz |
| Typ. current (at 230 V, 50 Hz, full load) | 345 mA |
| Power Consumption | 16.6 W |
| Output power range | 0.1–14.7 W |
| Typ. efficiency at 230 V | 92.9 % |
| Starting time | <0.7 s |
| Hold on time | <0.05 s |
| Output current tolerance, min./full load | ±10 %; ±5 % |
| Output LF current ripple | Same as LF ripple on 48 V bus |
| Max. output voltage | 60 V |
| Dimming range | 1–100 % |
| Radio transceiver operation frequency | 2.4–2.483 GHz |
| Max. output power radio transceiver | < +20 dBm |
| Max. casing temperature tc | 105 °C |
| ESD Classification | Severity level 2 |
| Type of protection | IP00 |

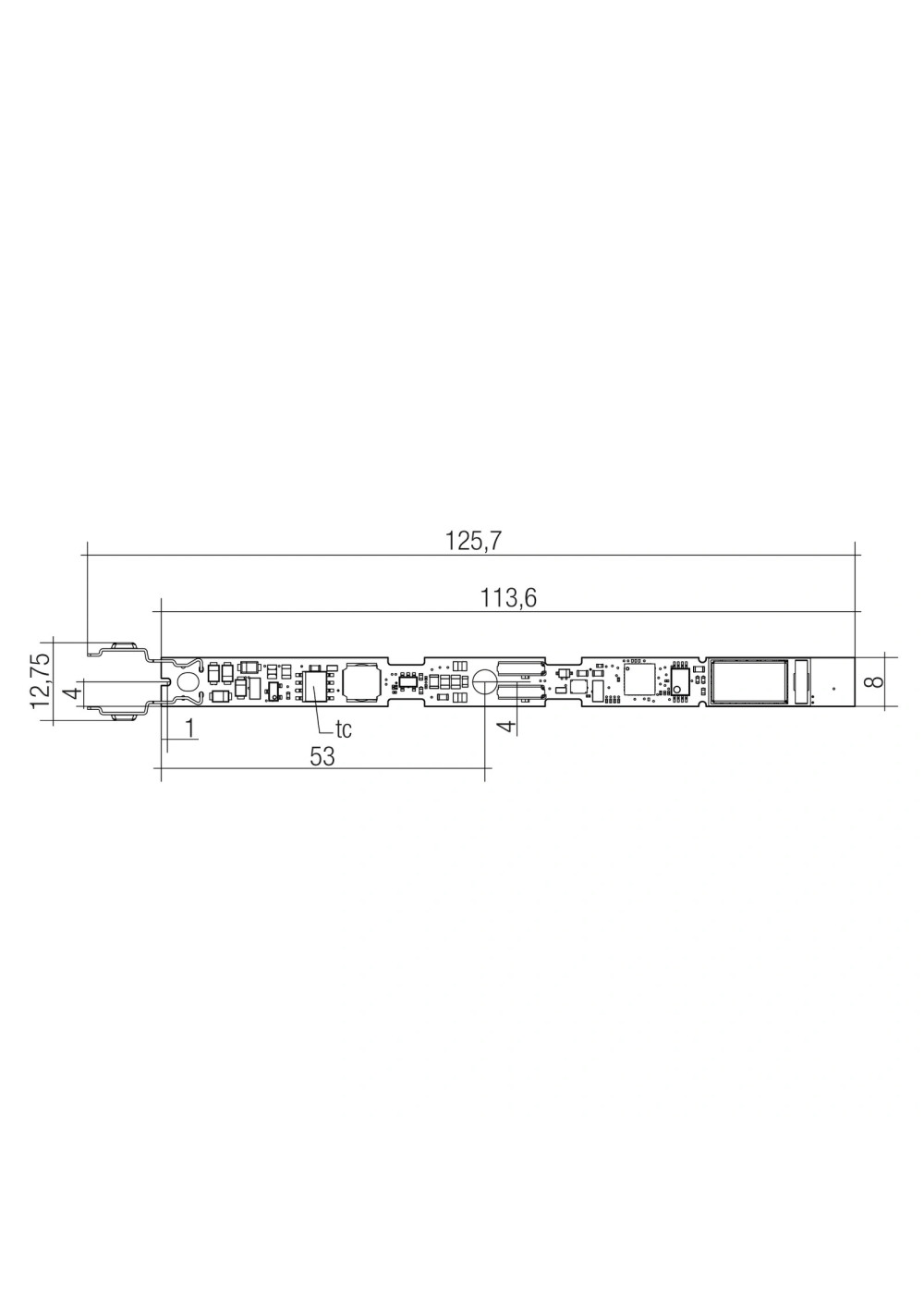

| Length | 125.7 mm |
| Width | 12.8 mm |
| Height | 5.1 mm |
| Guarantee | 5 years |
| Output mode | CC |
| Maximum output power [W] | 14.7 |
| Input voltage | 48.0 V |
| IP grade | IP00 |
| Warranty [years] | 5 |
| Maximum casing temperature tc | 105 °C |
| Typ. efficiency at 230 V | 92.9 % |
| Dimensions L×W×H | 125.7 × 12.8 × 5.1 mm |
| Minimum output current [mA] | 50 |
| Maximum output current [mA] | 700 |
| Minimum operating output voltage [V] | 2 |
| Maximum operating output voltage [V] | 42 |
| Product net weight | 0.005 kg |
| Interfaces and configuration | DALI, NFC, basicDIM Wireless, Casambi |
| Dimming / control | DALI, basicDIM Wireless, Casambi |
| Dimming | Yes |
| Configuration method | NFC |
| short_circuit_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | Can be integrated in Casambi systems (Casambi Ready) |
| Manufacturer note: Product description | Dimmable constant current |
| Manufacturer note: Product description | Up to 92.9 % efficiency |
| Manufacturer note: Product description | Output voltage range 2 – 42 V |
| Manufacturer note: Product description | Output current adjustable between 50 – 700 mA |
| Manufacturer note: Product description | Pure AM dimming down to 1 % |
| Manufacturer note: Product description | Max. output power 14.7 W |
| Manufacturer note: Product description | Temperature range up to +35 °C |
| Manufacturer note: Product description | 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Housing properties | Pure PCB for built-in application |
| Manufacturer note: Housing properties | Compatible with STUCCHI 48V MICRO/CORE11 system, see data sheet chapter 6.7 |
| Manufacturer note: Housing properties | Suitable for class III applications |
| Manufacturer note: Interfaces | basicDIM Wireless |
| Manufacturer note: Interfaces | Terminal blocks: 0° push terminals |
| Manufacturer note: Interfaces | Near field communication (NFC) |
| Manufacturer note: Functions | Adjustable output current in 1-mA-steps (NFC) |
| Manufacturer note: Functions | Protective features (overtemperature, short-circuit, no-load) |
| Manufacturer note: Functions | 48V and DALI input polarity free |
| Manufacturer note: Functions | Temperature declared thermally protected LED driver with integrated electronic protection means against overheating |
| Manufacturer note: Benefits | Application-oriented operating window |
| Manufacturer note: Benefits | Small dimensions for miniaturization of luminaires |
| Manufacturer note: Benefits | Flexible configuration via companionSUITE (NFC) |
| Manufacturer note: Benefits | Support NFC multiple programming (full carton box) |
| Manufacturer note: Benefits | We will provide security updates for the next five years after the date of purchase of this product |
| Manufacturer note: Typical applications | For spot light in art and culture, retail and hospitality, office and education |
Operating points
| Point | Output current | Min./Max. forward voltage | Typ. current consumption | Output power | Ambient temperature ta |
|---|---|---|---|---|---|
| 1 | 50.0 mA | 2 V; 42 V | 54.8 mA | 2.1 W; 2.1 W | 0–35 °C |
| 2 | 150.0 mA | 2 V; 42 V | 144.1 mA | 6.3 W; 6.3 W | 0–35 °C |
| 3 | 250.0 mA | 2 V; 42 V | 237.5 mA | 10.5 W; 10.5 W | 0–35 °C |
| 4 | 350.0 mA | 2 V; 42 V | 330.5 mA | 14.7 W; 14.7 W | 0–35 °C |
| 5 | 500.0 mA | 2 V; 29 V | 339.4 mA | 14.5 W; 14.5 W | 0–35 °C |
| 6 | 600.0 mA | 2 V; 24 V | 341 mA | 14.4 W; 14.4 W | 0–35 °C |
| 7 | 700.0 mA | 2 V; 21 V | 344.1 mA | 14.7 W; 14.7 W | 0–35 °C |
The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.
Installation / application
Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
zas_tridonic_28005580
