Mean Well PCD-16-1050B 16.8W 1050mA 12–16V Constant Current (CC) LED driver
Mean Well PCD-16-1050B is a 16.8 W constant-current LED driver rated at 1050 mA, with a 12–16 V DC output voltage range. IP rating IP42.
Mean Well PCD-16-1050B 16.8W 1050mA 12–16V Constant Current (CC) LED driver
Minimum order quantity: 1. Order in multiples of 1.
69.10 PLN
Shipment in 8-10 working days
tm_PCD-16-1050B
Mean Well PCD-16-1050B is a 16.8 W constant-current LED driver rated at 1050 mA, with a 12–16 V DC output voltage range. IP rating IP42.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
PCD-16-1050B – full product specification
Mean Well PCD-16-1050B is an LED power supply from the PCD-16 series with a 16.8 W rated output. The verified manufacturer datasheet data below supports correct circuit and operating-condition selection.
Selection and output
Select this driver for an LED circuit rated at 1050 mA. The required operating voltage of the complete powered circuit must remain within 12–16 V DC, while the connected load must also remain within the rated output power.

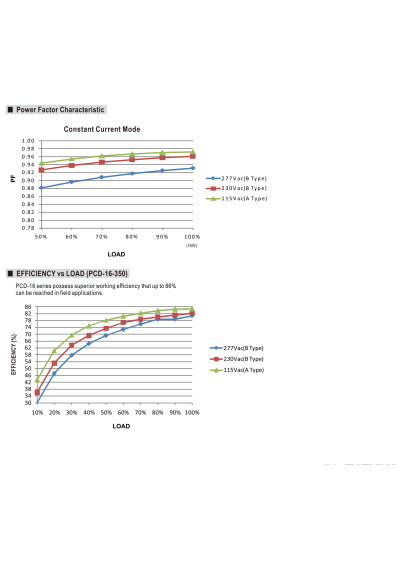

Input and efficiency
The input frequency range is 47–63 Hz. Manufacturer-specified typical efficiency is 80.5 %.
Full technical specifications
| Manufacturer | Mean Well |
|---|---|
| Series | PCD-16 |
| Model | PCD-16-1050B |
| Operating mode | Constant Current (CC) |
| Rated power | 16.8 W |
| Output current | 1050 mA |
| Output voltage range | 12–16 V DC |
| Input frequency | 47–63 Hz |
| Typical efficiency | 80.5 % |
| Current accuracy | 5 % |
| Inrush current | 10 A |
| Short-circuit protection | Yes |
| Fully isolated enclosure | Yes |
| Enclosure material | plastic |
| Cooling | free-air convection |
| IP rating | IP42 |

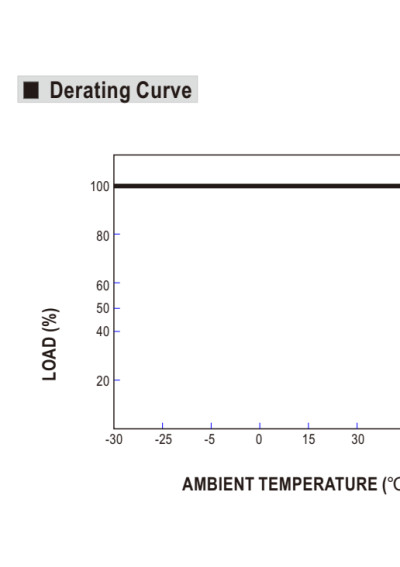

| Operating temperature | -30–60 °C |
| Dimensions (L × W × H) | 84 × 57 × 29.5 mm |
| Technical weight | 0.19 kg |
| Manufacturer warranty | 3 years |
Protection and construction
- Short-circuit protection: Yes
- Fully isolated enclosure: Yes
- Enclosure material: plastic
- Cooling: free-air convection
- IP rating: IP42
Operating conditions and mechanical data
Operating temperature: -30–60 °C; Dimensions (L × W × H): 84 × 57 × 29.5 mm; Technical weight: 0.19 kg; Manufacturer warranty: 3 years.
Manufacturer datasheet
The complete source specification is available directly from the manufacturer: Official Mean Well datasheet — PCD-16-SPEC 2024-09-25.
tm_PCD-16-1050B
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 15,1-20
- Output Current of CC power supply [mA]
- 1050
- CC operating window
- 12-16
- Min. output voltage of led driver (CC)
- 12
- Max. output voltage of led driver (CC)
- 16
- Dimming / Control
- Phase dimmer
- Dimensions (L x W x H) [mm]
- IP grade
- 42
- Case type of power supply
- Isolated / secured
- Case material
- Plastic
- Length [mm]
- 84
- Width [mm]
- 57
- Height/thickness [mm]
- 29.5
- Warranty [years]
- 3
- Input voltage [V]
- 185-230
- Interface
- Integrated input and output cable
- Working temperature
- - 30°C + 60°C
Specific References
- MPN
- PCD-16-1050B
