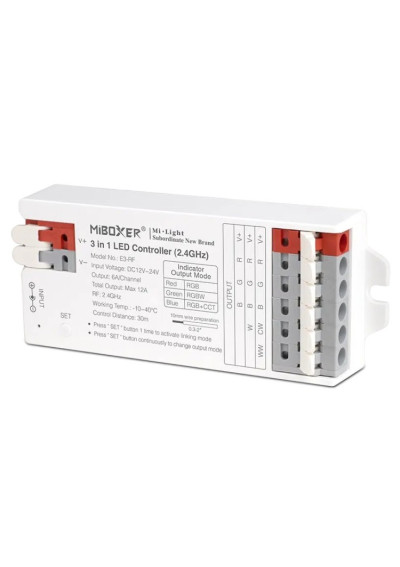

MiBoxer E3-RF – 3 in 1 LED controller 2.4 GHz RF

MiBoxer E3-RF – LED controller

E3-RF controls LED strips and lights in RGB, RGBW, RGB+CCT modes. Match the E3-RF output configuration to the connected strip; control uses RF 2.4 GHz.

Operating modes and use

• RGB: RGB strips with color and brightness adjustment.
• RGBW: RGBW strips, combining RGB colors with a separate white channel.
• RGB+CCT: RGB+CCT strips, combining color with tunable white.

Control

Control uses RF 2.4 GHz. App control requires a separate 2.4 GHz RF gateway.

Functions

• It relays the RF signal to another MiBoxer 2.4 GHz RF product, allowing a larger installation without a stronger transmitter.
• Mode synchronization keeps the same effect aligned across MiBoxer controllers paired with one remote.
• Selectable PWM frequency offers 250 Hz and 16 kHz modes for different installation requirements.
• Saturation adjustment changes color intensity while retaining the selected hue.

Compatible remotes

• RGB+CCT — controller in this mode: B4, B4-B, C5, C8, FUT089-B, FUT092, PUSH1, PUSH2
• RGBW — controller in this mode: B3-B, B3-W, FUT096-B

Technical specifications

We make every effort to ensure that the information provided in this product description is complete, up to date and consistent with the manufacturer's documentation. Please note, however, that the MiBoxer product range is continuously evolving and the manufacturer may introduce updates to product functionality, compatibility, software or technical specifications that may not yet be reflected in our description. If you have any doubts, we recommend checking the latest information and documentation directly on the manufacturer's website.
