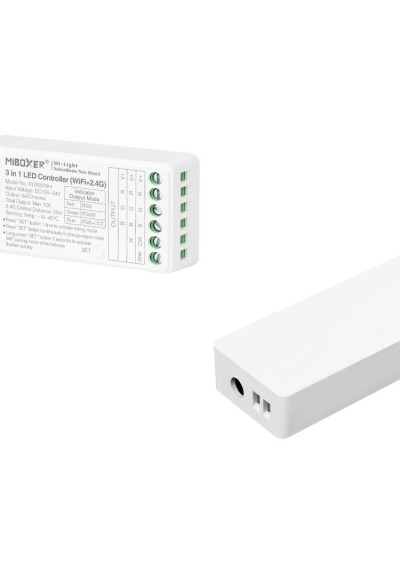

MiBoxer FUT037W+ – 3 in 1 LED controller Wi-Fi and 2.4 GHz RF
MiBoxer FUT037W+ is an LED controller for LED strips and lights in RGB, RGBW, RGB+CCT modes. Its selectable output configurations let one model serve different strip types. Control: Wi-Fi + RF 2.4 GHz. Input 12–24 V DC. RF range up to 30 m. Wi-Fi app control does not require a separate RF gateway.
MiBoxer FUT037W+ – 3 in 1 LED controller Wi-Fi and 2.4 GHz RF
100.80 PLN
Shipment in 1-2 business days
005x_miboxer_FUT037W+
MiBoxer FUT037W+ is an LED controller for LED strips and lights in RGB, RGBW, RGB+CCT modes. Its selectable output configurations let one model serve different strip types. Control: Wi-Fi + RF 2.4 GHz. Input 12–24 V DC. RF range up to 30 m. Wi-Fi app control does not require a separate RF gateway.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
MiBoxer FUT037W+ – LED controller
FUT037W+ controls LED strips and lights in RGB, RGBW, RGB+CCT modes. Match the FUT037W+ output configuration to the connected strip; control uses Wi-Fi + RF 2.4 GHz.
Operating modes and use
- RGB: RGB strips with color and brightness adjustment.
- RGBW: RGBW strips, combining RGB colors with a separate white channel.
- RGB+CCT: RGB+CCT strips, combining color with tunable white.
Control
FUT037W+ has built-in Wi-Fi for control through a compatible app without an RF gateway; MiBoxer radio control remains available through a MiBoxer 2.4 GHz RF remote.
Functions
- It relays the RF signal to another MiBoxer 2.4 GHz RF product, allowing a larger installation without a stronger transmitter.
- Mode synchronization keeps the same effect aligned across MiBoxer controllers paired with one remote.
- Selectable PWM frequency offers 250 Hz and 16 kHz modes for different installation requirements.
- DND mode helps prevent the light from switching on unexpectedly after power is restored.
- Music modes link selected lighting effects to sound.
- Lighting scenes can be selected or saved according to the device’s supported mode.
- Saturation adjustment changes color intensity while retaining the selected hue.
- Scheduling in the app sets lighting on and off times.
Compatible remotes
- RGB+CCT — controller in this mode: B4, B4-B, C5, C8, FUT089-B, FUT092, PUSH1, PUSH2
- RGBW — controller in this mode: B3-B, B3-W, FUT096-B
Technical specifications
| Model | FUT037W+ |
|---|---|
| Product type | LED controller |
| Modes | RGB, RGBW, RGB+CCT |
| Input voltage | 12–24 V DC |
| Output current | 6 A/kanał |
| Total current | 12 A |
| Connectivity | Wi-Fi + RF 2.4 GHz |
| RF range | 30 m |
| Operating temperature | -10–40 °C |
We make every effort to ensure that the information provided in this product description is complete, up to date and consistent with the manufacturer's documentation. Please note, however, that the MiBoxer product range is continuously evolving and the manufacturer may introduce updates to product functionality, compatibility, software or technical specifications that may not yet be reflected in our description. If you have any doubts, we recommend checking the latest information and documentation directly on the manufacturer's website.
Latest product information and documentation on the MiBoxer manufacturer website
005x_miboxer_FUT037W+
Data sheet
- Type of LED driver
- LED controller
- LED Driver outputs type
- 3 in 1
- Input Voltage of LED driver
- 12–24 V DC
- Max. output current of LED controller
- 12 A
