MiBoxer ZL5 – 5 in 1 LED controller Zigbee 3.0

MiBoxer ZL5 – LED controller

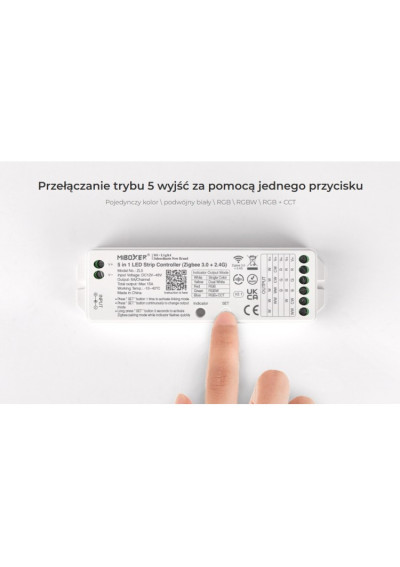

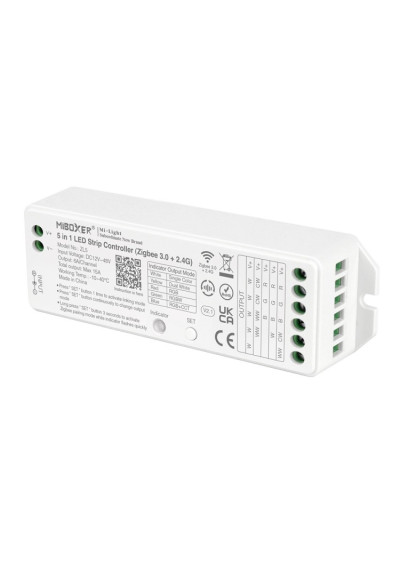

ZL5 controls LED strips and lights in Single Color, CCT, RGB, RGBW, RGB+CCT modes. Match the ZL5 output configuration to the connected strip; control uses Zigbee 3.0 + RF 2.4 GHz.

Operating modes and use

• Single Color: single-color LED strips with brightness control.
• CCT: dual-white strips with brightness and color-temperature adjustment.
• RGB: RGB strips with color and brightness adjustment.
• RGBW: RGBW strips, combining RGB colors with a separate white channel.
• RGB+CCT: RGB+CCT strips, combining color with tunable white.

Control

Zigbee 3.0 app control requires a Zigbee 3.0 gateway. The separate 2.4 GHz RF path accepts a paired MiBoxer remote.

Functions

• It relays the RF signal to another MiBoxer 2.4 GHz RF product, allowing a larger installation without a stronger transmitter.
• Mode synchronization keeps the same effect aligned across MiBoxer controllers paired with one remote.
• Selectable PWM frequency offers 250 Hz and 16 kHz modes for different installation requirements.
• DND mode helps prevent the light from switching on unexpectedly after power is restored.
• Music modes link selected lighting effects to sound.
• Lighting scenes can be selected or saved according to the device’s supported mode.
• Saturation adjustment changes color intensity while retaining the selected hue.
• Scheduling in the app sets lighting on and off times.

Compatible remotes

• CCT — controller in this mode:
  • B2-W, C1, C1-W, C3P, FUT006, FUT007, K0-B, K0-W
  • K0s-B, K0s-W, K1, K1-B, K2-B, K2-W, K3-B, K3-W
  • K3S-B, K3S-W
• RGB+CCT — controller in this mode: B4, B4-B, C5, C8, FUT089-B, FUT092, PUSH1, PUSH2
• RGBW — controller in this mode: B3-B, B3-W, FUT096-B
• Single Color — controller in this mode: B1, B1-B, FUT087, FUT087-B, K4-B, K4-W, PUSH1-3, PUSH2-3

Technical specifications

We make every effort to ensure that the information provided in this product description is complete, up to date and consistent with the manufacturer's documentation. Please note, however, that the MiBoxer product range is continuously evolving and the manufacturer may introduce updates to product functionality, compatibility, software or technical specifications that may not yet be reflected in our description. If you have any doubts, we recommend checking the latest information and documentation directly on the manufacturer's website.
