MiBoxer SPI-PA+ – four-channel SPI signal amplifier
MiBoxer SPI-PA+ amplifies four parallel SPI TTL signal channels and extends the control link up to 100 m using Cat6a cable. It operates from 5–24 V DC and carries control data for addressable LED installations; it is not an LED-strip power stage.
MiBoxer SPI-PA+ – four-channel SPI signal amplifier
162.59 PLN
Shipment in 1-2 business days
005x_miboxer_SPI-PA+
MiBoxer SPI-PA+ amplifies four parallel SPI TTL signal channels and extends the control link up to 100 m using Cat6a cable. It operates from 5–24 V DC and carries control data for addressable LED installations; it is not an LED-strip power stage.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
MiBoxer SPI-PA+ – four-channel SPI signal amplifier
SPI-PA+ addresses signal attenuation in long SPI installations. Its four channels are amplified in parallel to retain synchronised effects and brightness farther along the system.
Functions
- Input and output each carry four SPI TTL channels.

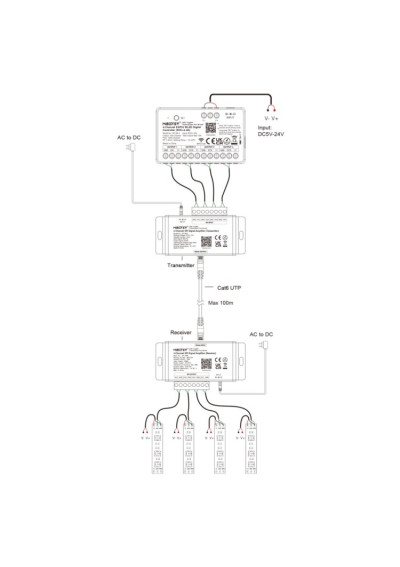

- The transmission link uses RS485 over Cat6a cable, purchased separately.
- The stated maximum transmission distance is 100 m.
Control and compatibility
The input accepts four SPI TTL signal channels. Long-distance transmission uses RS485 and a separately purchased Cat6a cable.

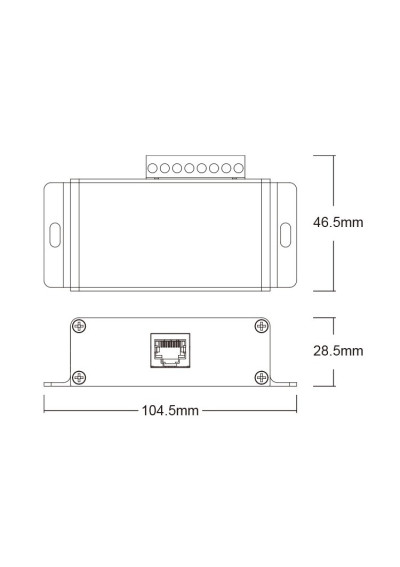

Technical specifications
| Supply | 5–24 V DC |
|---|---|
| Input signal | 4 × SPI TTL |
| Output signal | 4 × SPI TTL |
| Transmission link | RS485 / Cat6a |
| Maximum distance | 100 m |
| IP rating | IP20 |
We make every effort to ensure that the information provided in this product description is complete, up to date and consistent with the manufacturer's documentation. Please note, however, that the MiBoxer product range is continuously evolving and the manufacturer may introduce updates to product functionality, compatibility, software or technical specifications that may not yet be reflected in our description. If you have any doubts, we recommend checking the latest information and documentation directly on the manufacturer's website.
Latest product information and documentation on the MiBoxer manufacturer website
