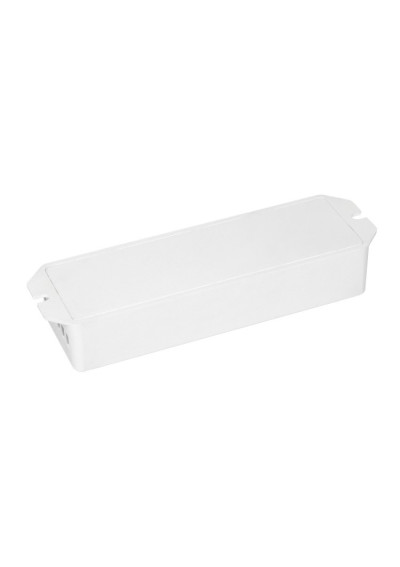

MiBoxer LS2 – 5 in 1 LED controller 2.4 GHz RF
MiBoxer LS2 is an LED controller for LED strips and lights in Single Color, CCT, RGB, RGBW, RGB+CCT modes. Its selectable output configurations let one model serve different strip types. Control: RF 2.4 GHz. Input 12–48 V DC. RF range up to 30 m. App control needs a separate RF gateway.
MiBoxer LS2 – 5 in 1 LED controller 2.4 GHz RF
91.86 PLN
Shipment in 1-2 business days
005x_miboxer_LS2
MiBoxer LS2 is an LED controller for LED strips and lights in Single Color, CCT, RGB, RGBW, RGB+CCT modes. Its selectable output configurations let one model serve different strip types. Control: RF 2.4 GHz. Input 12–48 V DC. RF range up to 30 m. App control needs a separate RF gateway.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
MiBoxer LS2 – LED controller
LS2 controls LED strips and lights in Single Color, CCT, RGB, RGBW, RGB+CCT modes. Match the LS2 output configuration to the connected strip; control uses RF 2.4 GHz.
Operating modes and use
- Single Color: single-color LED strips with brightness control.
- CCT: dual-white strips with brightness and color-temperature adjustment.
- RGB: RGB strips with color and brightness adjustment.
- RGBW: RGBW strips, combining RGB colors with a separate white channel.
- RGB+CCT: RGB+CCT strips, combining color with tunable white.
Control
Control uses RF 2.4 GHz. App control requires a separate 2.4 GHz RF gateway.
Functions
- It relays the RF signal to another MiBoxer 2.4 GHz RF product, allowing a larger installation without a stronger transmitter.
- Mode synchronization keeps the same effect aligned across MiBoxer controllers paired with one remote.
- Selectable PWM frequency offers 250 Hz and 16 kHz modes for different installation requirements.
- Saturation adjustment changes color intensity while retaining the selected hue.
Compatible remotes
- CCT — controller in this mode:
- B2-W, C1, C1-W, C3P, FUT006, FUT007, K0-B, K0-W
- K0s-B, K0s-W, K1, K1-B, K2-B, K2-W, K3-B, K3-W
- K3S-B, K3S-W
- RGB+CCT — controller in this mode: B4, B4-B, C5, C8, FUT089-B, FUT092, PUSH1, PUSH2
- RGBW — controller in this mode: B3-B, B3-W, FUT096-B
- Single Color — controller in this mode: B1, B1-B, FUT087, FUT087-B, K4-B, K4-W, PUSH1-3, PUSH2-3
Technical specifications
| Model | LS2 |
|---|---|
| Product type | LED controller |
| Modes | Single Color, CCT, RGB, RGBW, RGB+CCT |
| Input voltage | 12–48 V DC |
| Output current | 6 A/kanał |
| Total current | 15 A |
| Connectivity | RF 2.4 GHz |
| RF range | 30 m |
| Operating temperature | -10–40 °C |
We make every effort to ensure that the information provided in this product description is complete, up to date and consistent with the manufacturer's documentation. Please note, however, that the MiBoxer product range is continuously evolving and the manufacturer may introduce updates to product functionality, compatibility, software or technical specifications that may not yet be reflected in our description. If you have any doubts, we recommend checking the latest information and documentation directly on the manufacturer's website.
005x_miboxer_LS2
Data sheet
- Type of LED driver
- LED controller
- LED Driver outputs type
- 5 in 1
- Input Voltage of LED driver
- 12–48 V DC
- Max. output current of LED controller
- 15 A
