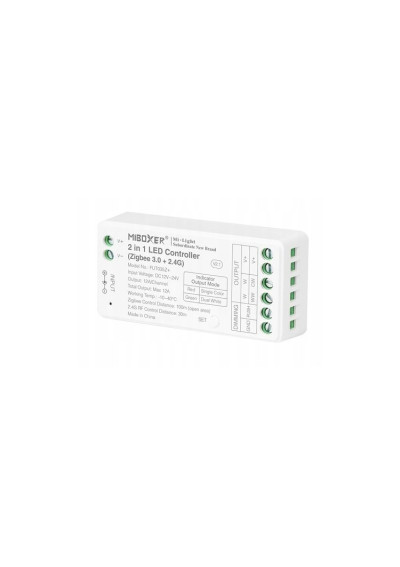

MiBoxer FUT035Z+ – 2 in 1 LED controller Zigbee 3.0

MiBoxer FUT035Z+ – LED controller

FUT035Z+ controls LED strips and lights in Single Color, CCT modes. Match the FUT035Z+ output configuration to the connected strip; control uses Zigbee 3.0 + RF 2.4 GHz.

Operating modes and use

• Single Color: single-color LED strips with brightness control.
• CCT: dual-white strips with brightness and color-temperature adjustment.

Control

Zigbee 3.0 app control requires a Zigbee 3.0 gateway. The separate 2.4 GHz RF path accepts a paired MiBoxer remote.

Functions

• It relays the RF signal to another MiBoxer 2.4 GHz RF product, allowing a larger installation without a stronger transmitter.
• Selectable PWM frequency offers 250 Hz and 16 kHz modes for different installation requirements.
• DND mode helps prevent the light from switching on unexpectedly after power is restored.
• The PUSH input supports local operation with a compatible momentary switch.
• Lighting scenes can be selected or saved according to the device’s supported mode.
• Scheduling in the app sets lighting on and off times.

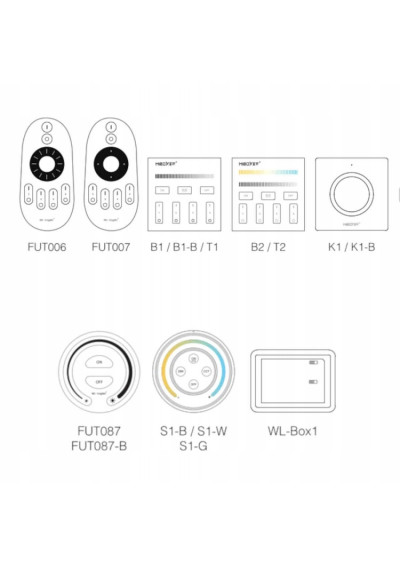

Compatible remotes

• CCT — controller in this mode:
  • B2-W, C1, C1-W, C3P, FUT006, FUT007, K0-B, K0-W
  • K0s-B, K0s-W, K1, K1-B, K2-B, K2-W, K3-B, K3-W
  • K3S-B, K3S-W
• Single Color — controller in this mode: B1, B1-B, FUT087, FUT087-B, K4-B, K4-W, PUSH1-3, PUSH2-3

Technical specifications

We make every effort to ensure that the information provided in this product description is complete, up to date and consistent with the manufacturer's documentation. Please note, however, that the MiBoxer product range is continuously evolving and the manufacturer may introduce updates to product functionality, compatibility, software or technical specifications that may not yet be reflected in our description. If you have any doubts, we recommend checking the latest information and documentation directly on the manufacturer's website.

Latest product information and documentation on the MiBoxer manufacturer website
