LED power supply Tridonic LCO 90W 200-1050mA 165V pD+ NF C PRE3

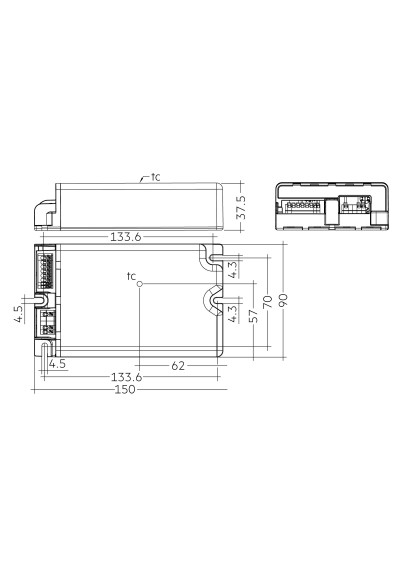

Dimensional drawing LCO 90W 200-1050mA 165V pD+ NF C PRE3

LED power supply Tridonic LCO 90/200-1050/165 pD+ NF C PRE3

Name: LED power supply Tridonic LCO 90/200-1050/165 pD+ NF C PRE3
Brand: LEDownia.pl
SKU: zas_tridonic_87500832
Price: 503 PLN
Availability: BackOrder

503.00 PLN

Shipment in 8-10 working days

Category: Dimmable

Reference: zas_tridonic_87500832

LED power supply Tridonic LCO 90W 200-1050mA 165V pD+ NF C PRE3 is a constant current LED driver rated up to 90 W. Values for individual settings are shown in the operating-point table. Documented interfaces and configuration methods: DALI, NFC.

Delivery

1-3 dni (PL), 3-10 dni (non-PL)

Return Policy

14 days

Description
Product Details

LED power supply Tridonic LCO 90W 200-1050mA 165V pD+ NF C PRE3 is a constant current LED driver in the Driver LCO 90W 200–1050mA 165V pD+ NF C PRE3 family. Official article number 87500832 identifies this physical version.

Key properties

Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.

Technical specifications

Manufacturer article number	87500832
Manufacturer family	Driver LCO 90W 200–1050mA 165V pD+ NF C PRE3
Manufacturer product group	Compact drivers
Supply voltage	220 – 240 V
AC voltage range	198 – 264 V
DC voltage range	176 – 280 V
Mains frequency	0 / 50 / 60 Hz
Overvoltage protection	320 V AC, 48 h
Typ. current (at 230 V, 50 Hz, full load)	438 mA
Typ. current (220 V, 0 Hz, full load, XX % dimming level)	85 mA
Leakage current	<0.5 mA
Touch current (equipotential connected)	500 µA
Power Consumption	100 W
Typ. power input on stand-by 230 V	<0.3 W
Typ. efficiency at 230 V	92 %
λ over full operating range (max.)	0.98
THD at 230V, full load	<8 %
Starting time	<0.8 s; <0.75 s
Switchover time (AC/DC)	<0.3 s
Turn off time	<0.5 s
Output current tolerance, min./full load	±3 %
Max. output current peak (non-repetitive) + max. peak output current	≤ output current +15 %
Output LF current ripple (< 120 Hz) / Current ripple at full load	±4 %
Output P_ST_LM (at full load)	≤1
Output SVM (at full load)	≤0.4
Max. output voltage	220 V; 130 V; 220 V
Dimming range	1–100 %
Mains surge capability (between L - N)	6 kV / 3 kA
Mains surge capability (between L/N - PE)	10 kV
Burst protection	6 kV
Surge voltage at output side (against PE)	<1 kV
Type of protection	IP20
Length	150 mm
Width	90 mm
Height	37.5 mm
Lifetime	up to 100000 h
Guarantee	8 years
Output mode	CC
Maximum output power [W]	90
Input voltage	220 – 240 V
IP grade	IP20
Warranty [years]	8
THD	<8 %
Typ. efficiency at 230 V	92 %
λ over full operating range (max.)	0.98
Dimensions L×W×H	150 × 90 × 37.5 mm
Lifetime [h]	up to 100000 h
Product net weight	0.739 kg
Interfaces and configuration	DALI, NFC
Dimming / control	DALI
Dimming	Yes
Configuration method	NFC
short_circuit_protection	Yes
overload_protection	Yes
no_load_protection	Yes
Manufacturer note: Product description	Dimmable built-in constant current outdoor D4i LED driver
Manufacturer note: Product description	Dimming range 1 to 100 % (min. 10 mA)
Manufacturer note: Product description	For luminaires of protection class I and protection class II
Manufacturer note: Product description	Temperature protection as per EN 61347-2-13 C5e
Manufacturer note: Product description	Output current adjustable between 200 – 1,050 mA via NFC, DALI or ready2mains Programmer
Manufacturer note: Product description	Max. output power 90 W
Manufacturer note: Product description	Up to 92 % efficiency
Manufacturer note: Product description	Lowest power input on stand-by < 0.3 W
Manufacturer note: Product description	Nominal lifetime of 100,000 h and 8 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Manufacturer note: Interfaces	Near field communication (NFC)
Manufacturer note: Interfaces	Powered DALI-2
Manufacturer note: Interfaces	ready2mains (configuration via mains)
Manufacturer note: Interfaces	U6Me2 (configuration of chronoSTEP via mains and ready2mains Programmer)
Manufacturer note: Interfaces	Terminal blocks: 45° push terminals
Manufacturer note: Functions	Adjustable output current in 1-mA-steps (NFC, DALI, ready2mains)
Manufacturer note: Functions	Programmable chronoSTEP: times and levels (NFC, DALI, U6Me2)
Manufacturer note: Functions	Enhanced constant light output function (eCLO)
Manufacturer note: Functions	Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Manufacturer note: Functions	Intelligent Temperature Guard (ITG)
Manufacturer note: Functions	Intelligent Voltage Guard Plus (IVG+)
Manufacturer note: Functions	Configurable external temperature management (ETM)
Manufacturer note: Functions	Auxiliary 24 V, 3 W power supply
Manufacturer note: Functions	DiiA/Zhaga connectivity extensions DT49, DT50, DT51, DT52
Manufacturer note: Functions	deviceKEY against unauthorized change of parameters
Manufacturer note: Benefits	Flexible configuration via companionSUITE (NFC, DALI, ready2mains™) or U6Me2 programmer
Manufacturer note: Benefits	Best energy savings due to low stand-by losses and high efficiency
Manufacturer note: Benefits	In-field programming possible after installation with NFC interface and ready2mains
Manufacturer note: Benefits	High overvoltage protection: up to 10 kV asymmetric (protection class I and II)
Manufacturer note: Benefits	Integrated ESD protection
Manufacturer note: Typical applications	Road, street and industry

Operating points

Point	Output current	Min./Max. forward voltage	Typ. current consumption	Output power	Typ. power consumption	Ambient temperature ta	tc point max	Operating modes / Grouping
1	200.0 mA	78 V; 165 V	182 mA	33 W	39.5 W	-40–70 °C	85.0 °C	High voltage output (HV)
2	250.0 mA	78 V; 165 V	218 mA	41.3 W	48.2 W	-40–70 °C	85.0 °C	High voltage output (HV)
3	300.0 mA	78 V; 165 V	254 mA	49.5 W	56.7 W	-40–65 °C	85.0 °C	High voltage output (HV)
4	350.0 mA	78 V; 165 V	290 mA	57.8 W	65.2 W	-40–65 °C	85.0 °C	High voltage output (HV)
5	400.0 mA	78 V; 165 V	327 mA	66 W	73.7 W	-40–65 °C	85.0 °C	High voltage output (HV)
6	450.0 mA	78 V; 165 V	364 mA	74.3 W	82.4 W	-40–65 °C	85.0 °C	High voltage output (HV)
7	500.0 mA	78 V; 165 V	403 mA	82.5 W	91.2 W	-40–60 °C	85.0 °C	High voltage output (HV)
8	550.0 mA	78 V; 163.6 V	437 mA	90 W	99.2 W	-40–60 °C	85.0 °C	High voltage output (HV)
9	600.0 mA	78 V; 150 V	434 mA	90 W	98.7 W	-40–60 °C	85.0 °C	High voltage output (HV)
10	650.0 mA	78 V; 138.5 V	432 mA	90 W	98.1 W	-40–65 °C	85.0 °C	High voltage output (HV)
11	700.0 mA	78 V; 128.6 V	431 mA	90 W	98 W	-40–65 °C	85.0 °C	High voltage output (HV)
12	750.0 mA	78 V; 120 V	431 mA	90 W	97.9 W	-40–65 °C	85.0 °C	High voltage output (HV)
13	800.0 mA	78 V; 112.5 V	430 mA	90 W	97.7 W	-40–65 °C	85.0 °C	High voltage output (HV)
14	850.0 mA	78 V; 105.9 V	430 mA	90 W	97.6 W	-40–65 °C	85.0 °C	High voltage output (HV)
15	900.0 mA	78 V; 100 V	430 mA	90 W	97.7 W	-40–65 °C	85.0 °C	High voltage output (HV)
16	950.0 mA	78 V; 94.7 V	429 mA	90 W	97.5 W	-40–65 °C	85.0 °C	High voltage output (HV)
17	1000.0 mA	78 V; 90 V	430 mA	90 W	97.7 W	-40–65 °C	85.0 °C	High voltage output (HV)
18	1050.0 mA	78 V; 85.7 V	429 mA	90 W	97.3 W	-40–65 °C	85.0 °C	High voltage output (HV)
19	200.0 mA	72 V; 97 V	125 mA	19.4 W	25.6 W	-40–70 °C	85.0 °C	Low voltage output (LV)
20	250.0 mA	57.6 V; 97 V	146 mA	24.3 W	30.7 W	-40–70 °C	85.0 °C	Low voltage output (LV)
21	300.0 mA	48 V; 97 V	166 mA	29.1 W	35.8 W	-40–70 °C	85.0 °C	Low voltage output (LV)
22	350.0 mA	46 V; 97 V	187 mA	34 W	40.9 W	-40–70 °C	85.0 °C	Low voltage output (LV)
23	400.0 mA	46 V; 97 V	208 mA	38.8 W	46 W	-40–65 °C	85.0 °C	Low voltage output (LV)
24	450.0 mA	46 V; 97 V	230 mA	43.7 W	51 W	-40–65 °C	85.0 °C	Low voltage output (LV)
25	500.0 mA	46 V; 97 V	251 mA	48.5 W	56 W	-40–65 °C	85.0 °C	Low voltage output (LV)
26	550.0 mA	46 V; 97 V	273 mA	53.4 W	61.2 W	-40–65 °C	85.0 °C	Low voltage output (LV)
27	600.0 mA	46 V; 97 V	295 mA	58.2 W	66.2 W	-40–65 °C	85.0 °C	Low voltage output (LV)
28	650.0 mA	46 V; 97 V	316 mA	63.1 W	71.2 W	-40–65 °C	85.0 °C	Low voltage output (LV)
29	700.0 mA	46 V; 97 V	338 mA	67.9 W	76.2 W	-40–65 °C	85.0 °C	Low voltage output (LV)
30	750.0 mA	46 V; 97 V	360 mA	72.8 W	81.4 W	-40–60 °C	85.0 °C	Low voltage output (LV)
31	800.0 mA	46 V; 97 V	382 mA	77.6 W	86.6 W	-40–60 °C	85.0 °C	Low voltage output (LV)
32	850.0 mA	46 V; 97 V	404 mA	82.5 W	91.7 W	-40–60 °C	85.0 °C	Low voltage output (LV)
33	900.0 mA	46 V; 97 V	426 mA	87.3 W	96.8 W	-40–60 °C	85.0 °C	Low voltage output (LV)
34	950.0 mA	46 V; 94.7 V	438 mA	90 W	99.5 W	-40–60 °C	85.0 °C	Low voltage output (LV)
35	1000.0 mA	46 V; 90 V	437 mA	90 W	99.4 W	-40–60 °C	85.0 °C	Low voltage output (LV)
36	1050.0 mA	46 V; 85.7 V	436 mA	90 W	99.1 W	-40–60 °C	85.0 °C	Low voltage output (LV)

The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.

Installation / application

Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.

Additional information

Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.

Main source of information: www.tridonic.com

We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
