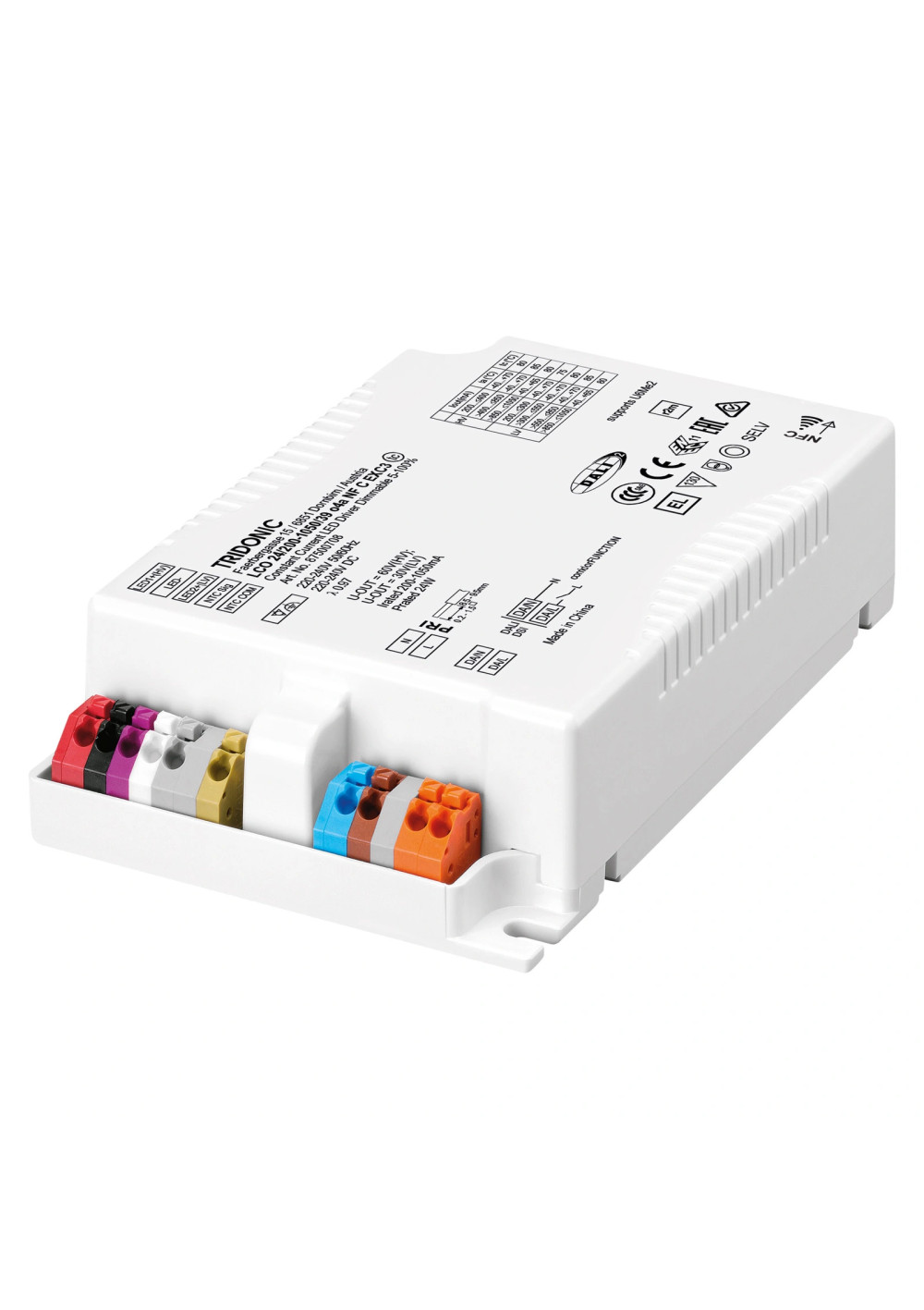

LED power supply Tridonic LCO 24W 200-1050mA 39V o4a NF C EXC3

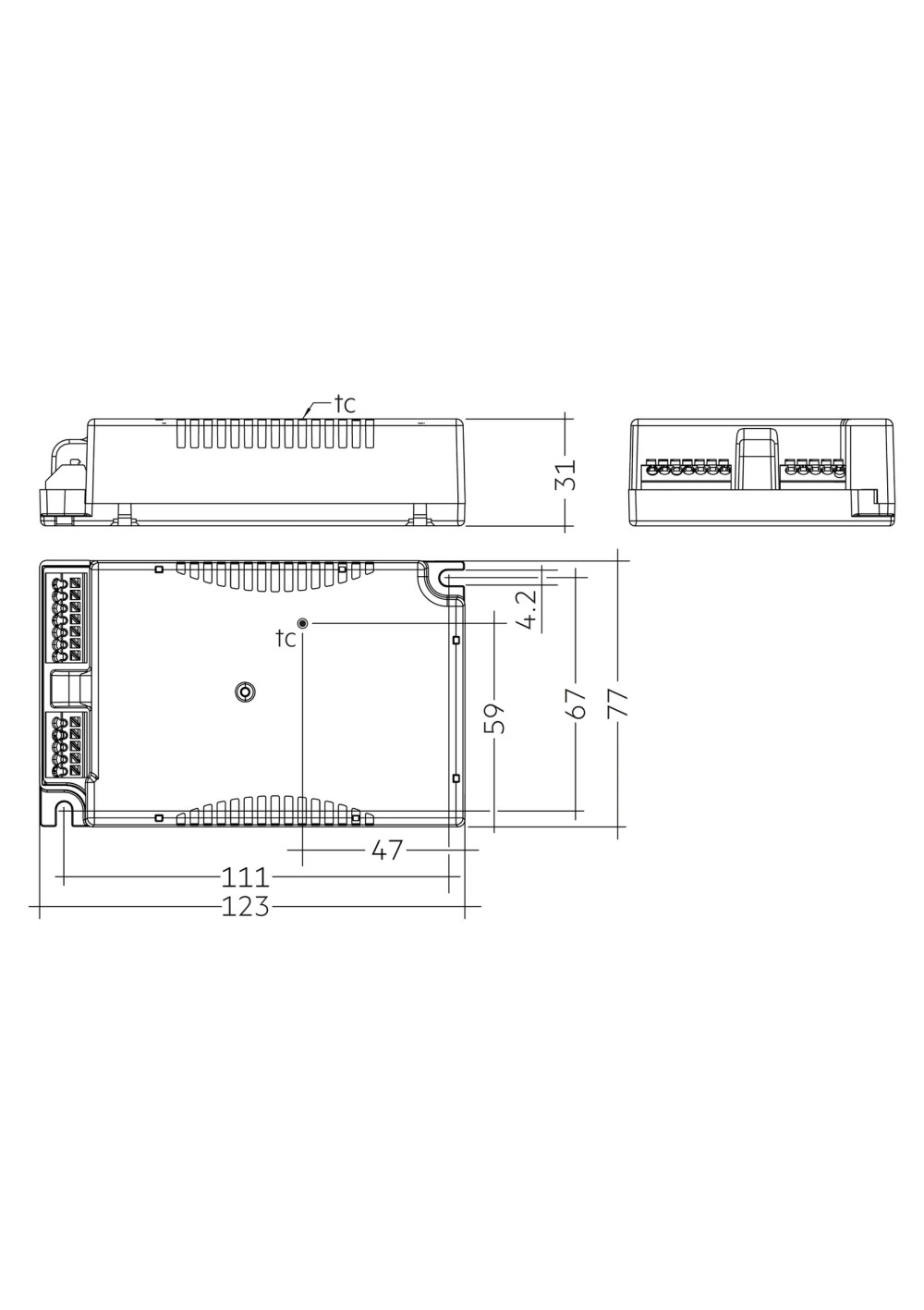

Dimensional drawing LCO 24W 200-1050mA 39V o4a NF C EXC3

LED power supply Tridonic LCO 24/200-1050/39 o4a NF C EXC3

Name: LED power supply Tridonic LCO 24/200-1050/39 o4a NF C EXC3
Brand: LEDownia.pl
SKU: zas_tridonic_87500708
Price: 293 PLN
Availability: BackOrder

293.00 PLN

Shipment in 8-10 working days

Category: Dimmable

Reference: zas_tridonic_87500708

LED power supply Tridonic LCO 24W 200-1050mA 39V o4a NF C EXC3 is a constant current LED driver rated up to 24 W. Values for individual settings are shown in the operating-point table. Documented interfaces and configuration methods: DALI, NFC, switchDIM.

Delivery

1-3 dni (PL), 3-10 dni (non-PL)

Return Policy

14 days

Description
Product Details

LED power supply Tridonic LCO 24W 200-1050mA 39V o4a NF C EXC3 is a constant current LED driver in the Driver LCO 24W 200–1050mA 39V o4a NF C EXC3 family. Official article number 87500708 identifies this physical version.

Key properties

Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.

Technical specifications

Manufacturer article number	87500708
Manufacturer family	Driver LCO 24W 200–1050mA 39V o4a NF C EXC3
Manufacturer product group	Compact drivers
Supply voltage	220 – 240 V
AC voltage range	198 – 264 V
InputDIM voltage range	170–250 V
DC voltage range	176 – 280 V
Mains frequency	0 / 50 / 60 Hz
Overvoltage protection	320 V AC, 48 h
Typ. current (at 230 V, 50 Hz, full load)	40–128 mA
Typ. current (220 V, 0 Hz, full load, XX % dimming level)	9–25 mA
Leakage current	<0.325 mA
Touch current (equipotential connected)	450 µA
Power Consumption	28.5 W
Typ. power input on stand-by 230 V	<0.16 W
Output power range	3.8–24 W
Typ. efficiency at 230 V	88 %
λ over full operating range (max.)	0.97
THD at 230V, full load	<7 %
Starting time	<0.8 s; <0.75 s
Switchover time (AC/DC)	<0.3 s
Turn off time	<0.5 s
Output current tolerance, min./full load	±3 %
Max. output current peak (non-repetitive) + max. peak output current	≤ output current +15 %
Output LF current ripple (< 120 Hz) / Current ripple at full load	±3.3 %
Output P_ST_LM (at full load)	≤1
Output SVM (at full load)	≤0.4
Max. output voltage	60 V; 30 V; 60 V
Dimming range	5–100 %
Mains surge capability (between L - N)	6 kV / 3 kA
Mains surge capability (between L/N - PE)	10 kV; 6 kV
Burst protection	6 kV
Surge voltage at output side (against PE)	<1 kV
Type of protection	IP20
Length	123 mm
Width	77 mm
Height	31 mm
Lifetime	up to 100000 h
Guarantee	8 years
Output mode	CC
Maximum output power [W]	24
Input voltage	220 – 240 V
IP grade	IP20
Warranty [years]	8
THD	<7 %
Typ. efficiency at 230 V	88 %
λ over full operating range (max.)	0.97
Dimensions L×W×H	123 × 77 × 31 mm
Lifetime [h]	up to 100000 h
Product net weight	0.212 kg
Interfaces and configuration	DALI, NFC, switchDIM
Dimming / control	DALI, switchDIM
Dimming	Yes
Configuration method	NFC
short_circuit_protection	Yes
overload_protection	Yes
no_load_protection	Yes
Manufacturer note: Product description	NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
Manufacturer note: Product description	Dimmable built-in constant current outdoor LED driver
Manufacturer note: Product description	Dimming range 5 – 100 % (min. 10 mA)
Manufacturer note: Product description	For luminaires of protection class I and protection class II
Manufacturer note: Product description	Temperature protection as per EN 61347-2-13 C5e
Manufacturer note: Product description	Output current adjustable between 200 – 1,050 mA via NFC, DALI or ready2mains Programmer
Manufacturer note: Product description	Max. output power 24 W
Manufacturer note: Product description	Up to 88 % efficiency
Manufacturer note: Product description	Lowest power input on stand-by < 0.16 W
Manufacturer note: Product description	Article number 28003166: Made in Europe, article number 87500708: Made in China.
Manufacturer note: Product description	BIS approval mark for art. no.: 87500708
Manufacturer note: Product description	Nominal lifetime of 100,000 h and 8 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Manufacturer note: Interfaces	Near field communication (NFC)
Manufacturer note: Interfaces	one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
Manufacturer note: Interfaces	ready2mains (configuration via mains)
Manufacturer note: Interfaces	U6Me2 (configuration of chronoSTEP via mains and ready2mains Programmer)
Manufacturer note: Interfaces	Terminal blocks: 45° push terminals
Manufacturer note: Functions	Adjustable output current in 1-mA-steps (NFC, DALI, ready2mains)
Manufacturer note: Functions	Programmable chronoSTEP: times and levels (NFC, DALI, U6Me2)
Manufacturer note: Functions	Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)
Manufacturer note: Functions	Dimming through mains voltage (inputDIM)
Manufacturer note: Functions	Enhanced constant light output function (eCLO)
Manufacturer note: Functions	Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Manufacturer note: Functions	Configurable external temperature management (ETM)
Manufacturer note: Functions	Intelligent Temperature Guard (ITG)
Manufacturer note: Functions	Intelligent Voltage Guard Plus (IVG+)
Manufacturer note: Functions	Suitable for emergency escape lighting systems acc. to EN 50172
Manufacturer note: Benefits	Flexible configuration via companionSUITE (NFC, DALI, ready2mains™) or U6Me2 programmer
Manufacturer note: Benefits	Application-oriented operating window for maximum compatibility
Manufacturer note: Benefits	Best energy savings due to low stand-by losses and high efficiency
Manufacturer note: Benefits	In-field programming possible after installation with NFC interface and ready2mains
Manufacturer note: Benefits	High overvoltage protection: up to 10 kV asymmetric (protection class I and II)
Manufacturer note: Benefits	Integrated ESD protection
Manufacturer note: Typical applications	Road, street and industry

Operating points

Point	Output current	Min./Max. forward voltage	Typ. current consumption	Output power	Typ. power consumption	Ambient temperature ta	tc point max	Operating modes / Grouping
1	200.0 mA	19.2 V; 39 V	51 mA	7.8 W	10.4 W	-40–70 °C	80.0 °C	High voltage output (HV)
2	250.0 mA	19 V; 39 V	60 mA	9.8 W	12.4 W	-40–70 °C	80.0 °C	High voltage output (HV)
3	300.0 mA	19 V; 39 V	68 mA	11.7 W	14.3 W	-40–70 °C	80.0 °C	High voltage output (HV)
4	350.0 mA	19 V; 39 V	76 mA	13.7 W	16.4 W	-40–70 °C	80.0 °C	High voltage output (HV)
5	400.0 mA	19 V; 39 V	85 mA	15.6 W	18.5 W	-40–70 °C	80.0 °C	High voltage output (HV)
6	450.0 mA	19 V; 39 V	95 mA	17.6 W	20.4 W	-40–70 °C	85.0 °C	High voltage output (HV)
7	500.0 mA	19 V; 39 V	102 mA	19.5 W	22.6 W	-40–70 °C	85.0 °C	High voltage output (HV)
8	550.0 mA	19 V; 39 V	111 mA	21.5 W	24.6 W	-40–70 °C	85.0 °C	High voltage output (HV)
9	600.0 mA	19 V; 39 V	120 mA	23.4 W	26.7 W	-40–70 °C	85.0 °C	High voltage output (HV)
10	650.0 mA	19 V; 36.9 V	124 mA	24 W	27.3 W	-40–70 °C	85.0 °C	High voltage output (HV)
11	700.0 mA	19 V; 34.3 V	123 mA	24 W	27.3 W	-40–70 °C	85.0 °C	High voltage output (HV)
12	750.0 mA	19 V; 32 V	123 mA	24 W	27.3 W	-40–70 °C	85.0 °C	High voltage output (HV)
13	800.0 mA	19 V; 30 V	123 mA	24 W	27.3 W	-40–70 °C	85.0 °C	High voltage output (HV)
14	850.0 mA	19 V; 28.2 V	123 mA	24 W	27.3 W	-40–70 °C	85.0 °C	High voltage output (HV)
15	900.0 mA	19 V; 26.7 V	123 mA	24 W	27.3 W	-40–65 °C	80.0 °C	High voltage output (HV)
16	950.0 mA	19 V; 25.3 V	123 mA	24 W	27.3 W	-40–65 °C	80.0 °C	High voltage output (HV)
17	1000.0 mA	19 V; 24 V	123 mA	24 W	27.3 W	-40–65 °C	80.0 °C	High voltage output (HV)
18	1050.0 mA	19 V; 22.9 V	123 mA	24 W	27.4 W	-40–65 °C	80.0 °C	High voltage output (HV)
19	200.0 mA	19.2 V; 23 V	40 mA	4.6 W	7.2 W	-40–70 °C	75.0 °C	Low voltage output (LV)
20	250.0 mA	15.4 V; 23 V	43 mA	5.8 W	8.5 W	-40–70 °C	75.0 °C	Low voltage output (LV)
21	300.0 mA	12.8 V; 23 V	47 mA	6.9 W	9.7 W	-40–70 °C	75.0 °C	Low voltage output (LV)
22	350.0 mA	11 V; 23 V	54 mA	8.1 W	11 W	-40–70 °C	80.0 °C	Low voltage output (LV)
23	400.0 mA	11 V; 23 V	60 mA	9.2 W	12.3 W	-40–70 °C	80.0 °C	Low voltage output (LV)
24	450.0 mA	11 V; 23 V	65 mA	10.4 W	13.5 W	-40–70 °C	80.0 °C	Low voltage output (LV)
25	500.0 mA	11 V; 23 V	70 mA	11.5 W	14.9 W	-40–70 °C	80.0 °C	Low voltage output (LV)
26	550.0 mA	11 V; 23 V	75 mA	12.7 W	16.1 W	-40–70 °C	80.0 °C	Low voltage output (LV)
27	600.0 mA	11 V; 23 V	81 mA	13.8 W	17.5 W	-40–70 °C	85.0 °C	Low voltage output (LV)
28	650.0 mA	11 V; 23 V	86 mA	15 W	18.8 W	-40–70 °C	85.0 °C	Low voltage output (LV)
29	700.0 mA	11 V; 23 V	92 mA	16.1 W	20 W	-40–70 °C	85.0 °C	Low voltage output (LV)
30	750.0 mA	11 V; 23 V	96 mA	17.3 W	21.2 W	-40–70 °C	85.0 °C	Low voltage output (LV)
31	800.0 mA	11 V; 23 V	101 mA	18.4 W	22.3 W	-40–70 °C	85.0 °C	Low voltage output (LV)
32	850.0 mA	11 V; 23 V	107 mA	19.6 W	23.5 W	-40–70 °C	85.0 °C	Low voltage output (LV)
33	900.0 mA	11 V; 23 V	112 mA	20.7 W	24.7 W	-40–65 °C	80.0 °C	Low voltage output (LV)
34	950.0 mA	11 V; 23 V	117 mA	21.9 W	25.8 W	-40–65 °C	80.0 °C	Low voltage output (LV)
35	1000.0 mA	11 V; 23 V	124 mA	23 W	27.4 W	-40–65 °C	80.0 °C	Low voltage output (LV)
36	1050.0 mA	11 V; 22.9 V	128 mA	24 W	28.3 W	-40–65 °C	80.0 °C	Low voltage output (LV)

The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.
