LED power supply Tridonic LCO 110/200-1050/157 pD+ NF C SNC
LED power supply Tridonic LCO 110W 200-1050mA 157V pD+ NF C SNC is a constant current LED driver rated up to 110 W. Values for individual settings are shown in the operating-point table. Documented interfaces and configuration methods: DALI, NFC.
LED power supply Tridonic LCO 110/200-1050/157 pD+ NF C SNC
387.80 PLN
Shipment in 1-2 business days
zas_tridonic_87501199
LED power supply Tridonic LCO 110W 200-1050mA 157V pD+ NF C SNC is a constant current LED driver rated up to 110 W. Values for individual settings are shown in the operating-point table. Documented interfaces and configuration methods: DALI, NFC.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LCO 110W 200-1050mA 157V pD+ NF C SNC is a constant current LED driver in the Driver LCO 110W 200–1050mA 157V pD+ NF C SNC family. Official article number 87501199 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 87501199 |
|---|---|
| Manufacturer family | Driver LCO 110W 200–1050mA 157V pD+ NF C SNC |
| Manufacturer product group | Compact drivers |
| Supply voltage | 220 – 240 V |
| AC voltage range | 198 – 264 V |
| Mains frequency | 50 / 60 Hz |
| Overvoltage protection | 320 V AC, 48 h |
| Typ. current (at 230 V, 50 Hz, full load) | 520 mA |
| Leakage current | <0.7 mA |
| Touch current (equipotential connected) | 600 µA |
| Power Consumption | 119 W |
| Typ. power input on stand-by 230 V | <0.45 W |
| Output power range | 9.6–110 W |
| Typ. efficiency at 230 V | 92.5 % |
| λ over full operating range (max.) | 0.98 |
| λ over full operating range (min.) | 0.65C |
| THD at 230V, full load | <8 % |
| Starting time | <0.7 s |
| Turn off time | <0.03 s |
| Output current tolerance, min./full load | ±3 % |
| Max. non-repetitive output peak current | 1208.0 mA |
| Output LF current ripple (< 120 Hz) / Current ripple at full load | ±5 % |
| Output P_ST_LM (at full load) | ≤1 |
| Output SVM (at full load) | ≤0.4 |
| Max. output voltage | 200 V |
| Dimming range | 10–100 % |
| Mains surge capability (between L - N) | 6 kV |
| Mains surge capability (between L/N - PE) | 10 kV |
| Burst protection | 4 kV |
| Surge voltage at output side (against PE) | <1 kV |
| Type of protection | IP20 |
| Length | 150 mm |
| Width | 90 mm |
| Height | 37.5 mm |
| Lifetime | up to 100000 h |
| Guarantee | 5 years |
| Output mode | CC |
| Maximum output power [W] | 110 |
| Input voltage | 220 – 240 V |
| IP grade | IP20 |
| Warranty [years] | 5 |
| THD | <8 % |
| Typ. efficiency at 230 V | 92.5 % |
| λ over full operating range (max.) | 0.98 |

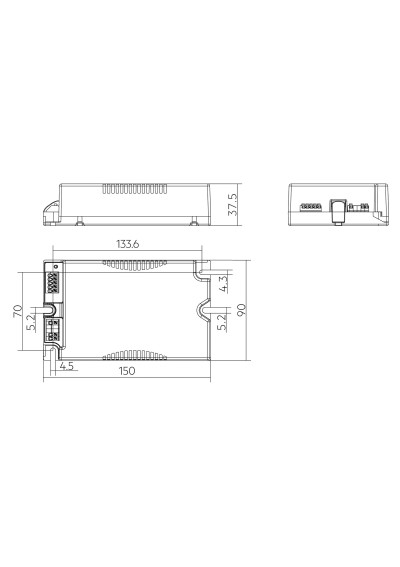

| Dimensions L×W×H | 150 × 90 × 37.5 mm |
| Lifetime [h] | up to 100000 h |
| Product net weight | 0.39 kg |
| Interfaces and configuration | DALI, NFC |
| Dimming / control | DALI |
| Dimming | Yes |
| Configuration method | NFC |
| short_circuit_protection | Yes |
| overload_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | Dimmable IP20 built-in constant current driver. DALI-2 and D4i certified. |
| Manufacturer note: Product description | Setting the industry standard: high surge immunity, NFC programming, long life-time, high Power Factor and efficiency |
| Manufacturer note: Product description | Dual integrated power supply for the ZD4i ecosystem (bus power supply and 24 V DC AUX power supply to power sensors and controls) |
| Manufacturer note: Product description | Integrated power monitoring and energy reporting |
| Manufacturer note: Product description | For standalone luminaires to achieve adaptive lighting requirements or streetlights that are interconnected with smart lighting systems |
| Manufacturer note: Product description | For luminaires of protection class I and II and additional equipotential for more design-in flexibility |
| Manufacturer note: Product description | Fully programmable via NFC (wireless) or DALI. Selected features can be programmed via cabinet programming (u6Me2). |
| Manufacturer note: Product description | Nominal lifetime up to 100,000 h |
| Manufacturer note: Product description | 5 years guarantee + 3 years of warranty extension depending on operating conditions (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Interfaces | Near field communication (NFC) for programming and configuration (single and multi packaging) |
| Manufacturer note: Interfaces | DALI-2 and D4i (powered DALI-2) |
| Manufacturer note: Interfaces | u6Me2 cabinet programming for the configuration of chronoSTEP times and levels via mains |
| Manufacturer note: Interfaces | Terminal blocks: 45° push terminals |
| Manufacturer note: Functions | Integrated bus power supply for sensors and other control devices (DALI part 250) |
| Manufacturer note: Functions | Integrated auxiliary power supply 24 V, 3 W (DALI part 150) for control devices with higher power requirements |
| Manufacturer note: Functions | Data specification (DALI part 251, 252 and 253 for report of luminaire, energy and diagnostics data) |
| Manufacturer note: Functions | Autonomous dimming function “chronoSTEP”: programmable via NFC, DALI, u6Me2 |
| Manufacturer note: Functions | Constant light output function (CLO) |
| Manufacturer note: Functions | Full protection set (overtemperature, short-circuit, overload, no-load, undervoltage / overvoltage, reduced surge amplification) |
| Manufacturer note: Functions | deviceKEY against unauthorized change of parameters |
| Manufacturer note: Benefits | Future proof driver with chronoSTEP, DALI-2 and D4i dimming capability combined in one device |
| Manufacturer note: Benefits | Robust thermal behaviour to ease design-in |
| Manufacturer note: Benefits | Sensors and communication devices are directly powered from the driver and are therefore easy to integrate into the luminaire |
| Manufacturer note: Benefits | Flexible driver configuration via companionSUITE software (NFC, DALI) or cabinet programming via cabinet programmer (article: 28001206) |
| Manufacturer note: Benefits | Wide operating window (1 output) to cover various LED module combinations |
| Manufacturer note: Benefits | In-field (re-)programming via NFC and u6Me2 possible after installation |
| Manufacturer note: Benefits | Enables energy metering and predictive maintenance |
| Manufacturer note: Benefits | High overvoltage protection: up to 10 kV asymmetric (protection class I and II) |
| Manufacturer note: Benefits | Integrated ESD protection |
| Manufacturer note: Typical applications | Road & street, tunnel, residential, area and industrial lighting |
Operating points
| Point | Output current | Min./Max. forward voltage | Typ. current consumption | Output power | Typ. power consumption | Ambient temperature ta | tc point max |
|---|---|---|---|---|---|---|---|
| 1 | 200.0 mA | 48 V; 157 V | 161 mA | 31.4 W | 35.2 W | -40–65 °C | 79.0 °C |
| 2 | 250.0 mA | 48 V; 157 V | 195 mA | 39.3 W | 43.4 W | -40–65 °C | 79.0 °C |
| 3 | 300.0 mA | 48 V; 157 V | 231 mA | 47.1 W | 51.7 W | -40–65 °C | 79.0 °C |
| 4 | 350.0 mA | 48 V; 157 V | 266 mA | 55 W | 59.8 W | -40–65 °C | 79.0 °C |
| 5 | 400.0 mA | 48 V; 157 V | 301 mA | 62.8 W | 68.1 W | -40–65 °C | 79.0 °C |
| 6 | 450.0 mA | 48 V; 157 V | 336 mA | 70.7 W | 76.3 W | -40–65 °C | 79.0 °C |
| 7 | 500.0 mA | 48 V; 157 V | 372 mA | 78.5 W | 84.4 W | -40–60 °C | 79.0 °C |
| 8 | 550.0 mA | 48 V; 157 V | 407 mA | 86.4 W | 92.6 W | -40–60 °C | 79.0 °C |
| 9 | 600.0 mA | 48 V; 157 V | 443 mA | 94.2 W | 100.9 W | -40–60 °C | 79.0 °C |
| 10 | 650.0 mA | 48 V; 157 V | 478 mA | 102.1 W | 109.1 W | -40–60 °C | 79.0 °C |
| 11 | 700.0 mA | 48 V; 157 V | 514 mA | 109.9 W | 117.3 W | -40–55 °C | 77.0 °C |
| 12 | 750.0 mA | 48 V; 146.6 V | 515 mA | 110 W | 117.5 W | -40–55 °C | 77.0 °C |
| 13 | 800.0 mA | 48 V; 137.5 V | 515 mA | 110 W | 117.6 W | -40–55 °C | 77.0 °C |
| 14 | 850.0 mA | 48 V; 129.4 V | 516 mA | 110 W | 117.7 W | -40–55 °C | 77.0 °C |
| 15 | 900.0 mA | 48 V; 122.2 V | 516 mA | 110 W | 117.8 W | -40–55 °C | 77.0 °C |
| 16 | 950.0 mA | 48 V; 115.8 V | 517 mA | 110 W | 118 W | -40–55 °C | 77.0 °C |
| 17 | 1000.0 mA | 48 V; 110 V | 519 mA | 110 W | 118.3 W | -40–55 °C | 77.0 °C |
| 18 | 1050.0 mA | 48 V; 104.8 V | 520 mA | 110 W | 118.6 W | -40–55 °C | 77.0 °C |
The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.
Installation / application
Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
zas_tridonic_87501199
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 110
- Output Current of CC power supply [mA]
- 200-1050
- CC operating window
- 48-157
- Min. output voltage of led driver (CC)
- 48
- Max. output voltage of led driver (CC)
- 157
- Dimming / Control
- DALI
- Dimensions (L x W x H) [mm]
- 150 × 90 × 37.5 mm
- IP grade
- 20
- Length [mm]
- 150
- Width [mm]
- 90
- Height/thickness [mm]
- 37.5
- Warranty [years]
- 5
- Input voltage [V]
- 220-240
- Min. current of CC driver [mA]
- 200
- Max. current of CC driver [mA]
- 1050
- Power factor
- 0.98
