LED power supply Tridonic LCO 165W 200-1050mA 285V o4a NF C EXC3

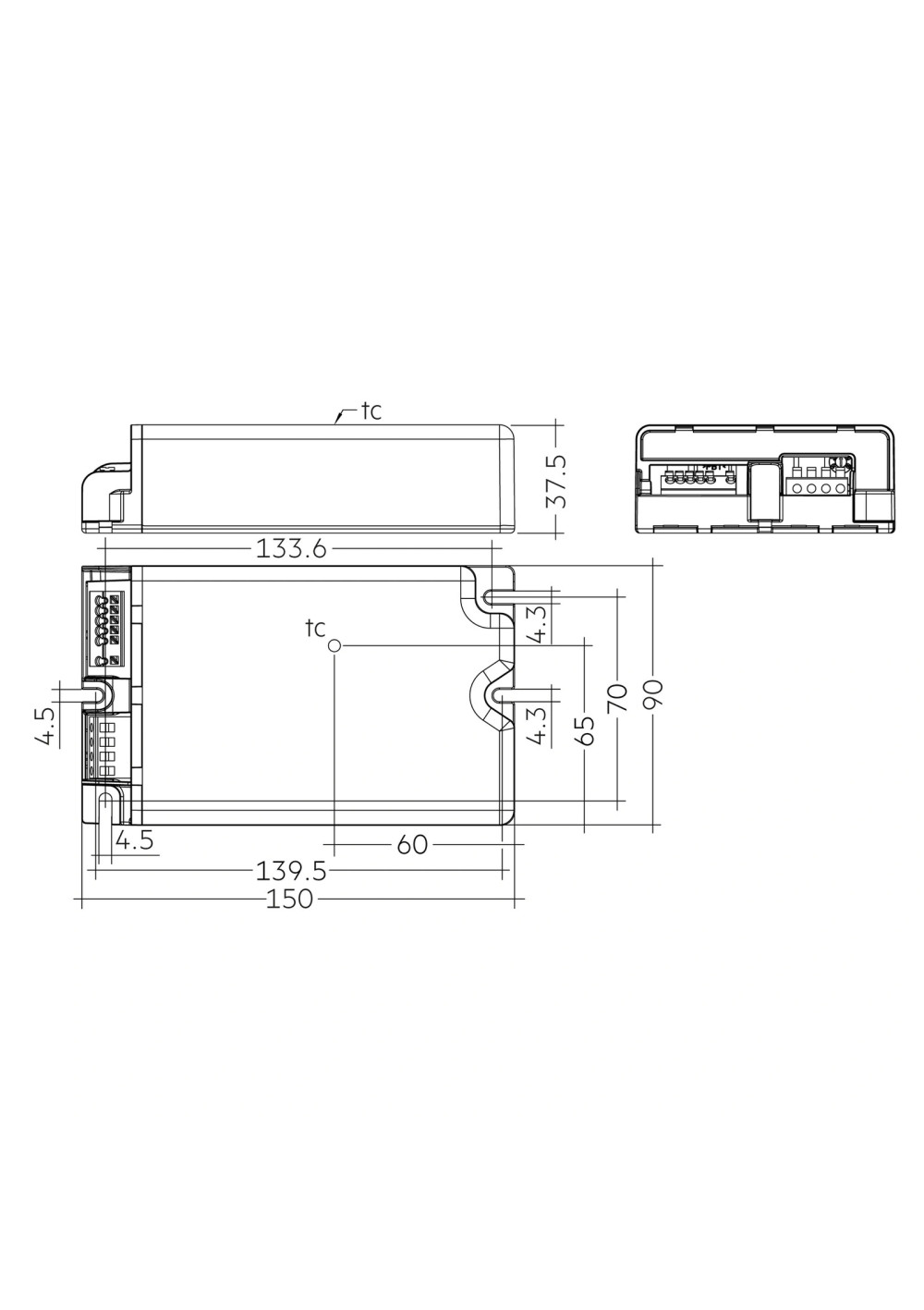

Dimensional drawing LCO 165W 200-1050mA 285V o4a NF C EXC3

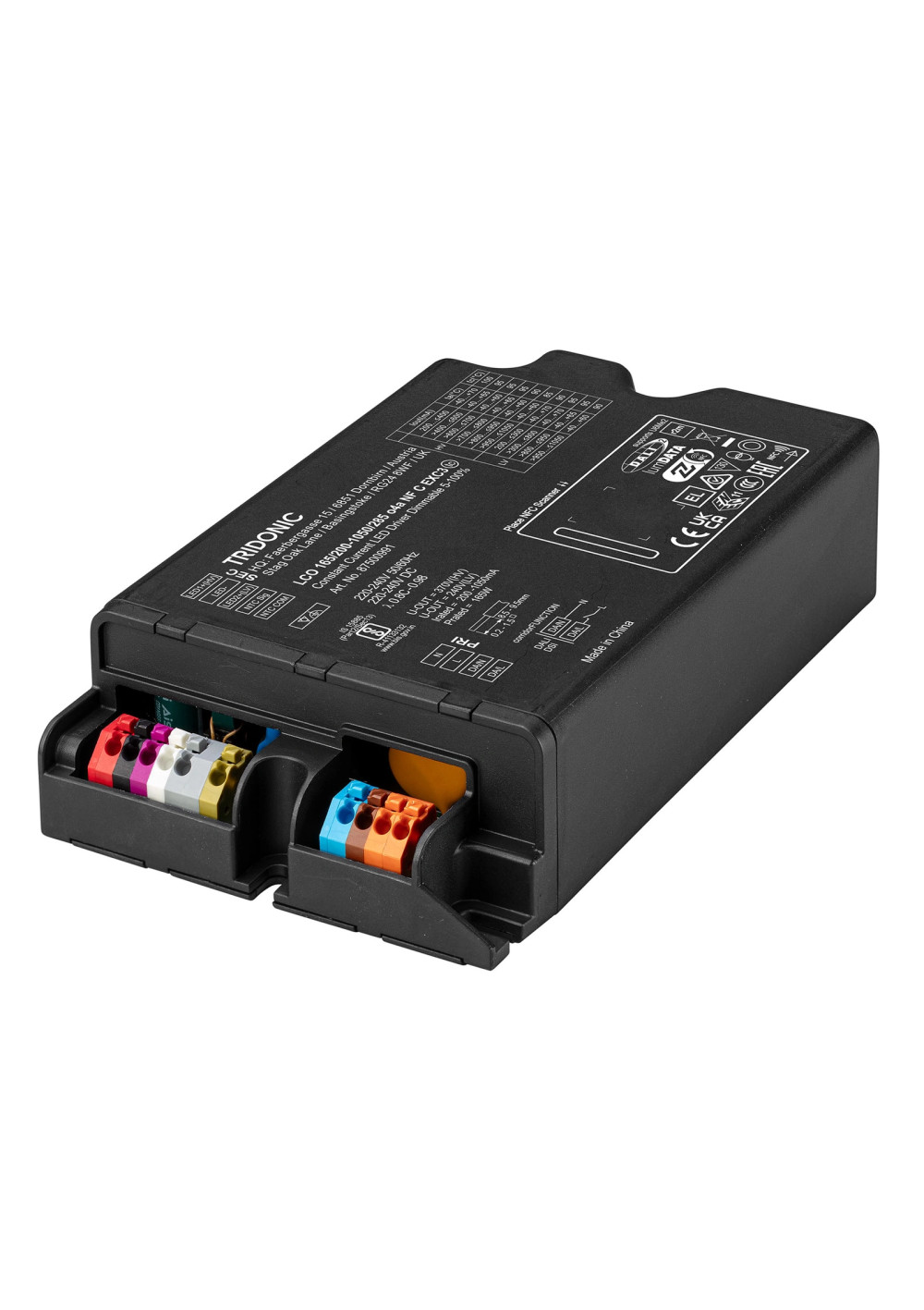

LED power supply Tridonic LCO 165/200-1050/285 o4a NF C EXC3

Name: LED power supply Tridonic LCO 165/200-1050/285 o4a NF C EXC3
Brand: LEDownia.pl
SKU: zas_tridonic_28004668
Availability: Discontinued

0.00 PLN

Shipment in 1-2 business days

Category: Dimmable

Reference: zas_tridonic_28004668

LED power supply Tridonic LCO 165W 200-1050mA 285V o4a NF C EXC3 is a constant current LED driver rated up to 165 W. Values for individual settings are shown in the operating-point table. Documented interfaces and configuration methods: DALI, NFC, switchDIM.

Delivery

1-3 dni (PL), 3-10 dni (non-PL)

Return Policy

14 days

Description
Product Details

LED power supply Tridonic LCO 165W 200-1050mA 285V o4a NF C EXC3 is a constant current LED driver in the Driver LCO 165W 200–1050mA 285V o4a NF C EXC3 family. Official article number 28004668 identifies this physical version.

Key properties

Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.

Technical specifications

Manufacturer article number	28004668
Manufacturer family	Driver LCO 165W 200–1050mA 285V o4a NF C EXC3
Manufacturer product group	Compact drivers
Supply voltage	220 – 240 V
AC voltage range	198 – 264 V
InputDIM voltage range	170–250 V
DC voltage range	176 – 280 V
Mains frequency	0 / 50 / 60 Hz
Overvoltage protection	320 V AC, 48 h
Typ. current (at 230 V, 50 Hz, full load)	776 mA
Typ. current (220 V, 0 Hz, full load, XX % dimming level)	148 mA
Leakage current	<0.5 mA
Touch current (equipotential connected)	380 µA
Power Consumption	194 W
Typ. power input on stand-by 230 V	<0.16 W
Typ. efficiency at 230 V	93 %
λ over full operating range (max.)	0.98
THD at 230V, full load	<8 %
Starting time	<0.8 s; <0.75 s
Switchover time (AC/DC)	<0.3 s
Turn off time	<0.5 s
Output current tolerance, min./full load	±3 %
Max. output current peak (non-repetitive) + max. peak output current	≤ output current +15 %
Output LF current ripple (< 120 Hz) / Current ripple at full load	±5 %
Output P_ST_LM (at full load)	≤1
Output SVM (at full load)	≤0.4
Max. output voltage	370 V; 240 V; 370 V
Dimming range	5–100 %
Mains surge capability (between L - N)	6 kV / 3 kA
Mains surge capability (between L/N - PE)	10 kV; 6 kV
Burst protection	6 kV
Surge voltage at output side (against PE)	<1 kV
Type of protection	IP20
Length	150 mm
Width	90 mm
Height	37.5 mm
Lifetime	up to 100000 h
Guarantee	8 years
Output mode	CC
Maximum output power [W]	165
Input voltage	220 – 240 V
IP grade	IP20
Warranty [years]	8
THD	<8 %
Typ. efficiency at 230 V	93 %
λ over full operating range (max.)	0.98
Dimensions L×W×H	150 × 90 × 37.5 mm
Lifetime [h]	up to 100000 h
Product net weight	0.797 kg
Interfaces and configuration	DALI, NFC, switchDIM
Dimming / control	DALI, switchDIM
Dimming	Yes
Configuration method	NFC
short_circuit_protection	Yes
overload_protection	Yes
no_load_protection	Yes
Manufacturer note: Product description	NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
Manufacturer note: Product description	Dimmable built-in constant current outdoor LED driver
Manufacturer note: Product description	Dimming range 5 – 100 % (min. 10 mA)
Manufacturer note: Product description	For luminaires of protection class I and protection class II
Manufacturer note: Product description	Temperature protection as per EN 61347-2-13 C5e
Manufacturer note: Product description	Output current adjustable between 200 – 1,050 mA via NFC, DALI or ready2mains Programmer
Manufacturer note: Product description	Max. output power 165 W
Manufacturer note: Product description	Up to 93 % efficiency
Manufacturer note: Product description	Lowest power input on stand-by < 0.16 W
Manufacturer note: Product description	BIS approval mark for art. no.: 87500991
Manufacturer note: Product description	Nominal lifetime of 100,000 h and 8 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Manufacturer note: Interfaces	Near field communication (NFC)
Manufacturer note: Interfaces	one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
Manufacturer note: Interfaces	ready2mains (configuration via mains)
Manufacturer note: Interfaces	U6Me2 (configuration of chronoSTEP via mains and ready2mains Programmer)
Manufacturer note: Interfaces	Terminal blocks: 45° / 0° push terminals
Manufacturer note: Functions	Adjustable output current in 1-mA-steps (NFC, DALI, ready2mains)
Manufacturer note: Functions	Programmable chronoSTEP: times and levels (NFC, DALI, U6Me2)
Manufacturer note: Functions	Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)
Manufacturer note: Functions	Dimming through mains voltage (inputDIM)
Manufacturer note: Functions	Enhanced constant light output function (eCLO)
Manufacturer note: Functions	Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Manufacturer note: Functions	Configurable external temperature management (ETM)
Manufacturer note: Functions	Intelligent Temperature Guard (ITG)
Manufacturer note: Functions	Intelligent Voltage Guard Plus (IVG+)
Manufacturer note: Functions	Suitable for emergency escape lighting systems acc. to EN 50172
Manufacturer note: Benefits	Flexible configuration via companionSUITE (NFC, DALI, ready2mains™) or U6Me2 programmer
Manufacturer note: Benefits	Application-oriented operating window for maximum compatibility
Manufacturer note: Benefits	Best energy savings due to low stand-by losses and high efficiency
Manufacturer note: Benefits	In-field programming possible after installation with NFC interface and ready2mains
Manufacturer note: Benefits	High overvoltage protection: up to 10 kV asymmetric (protection class I and II)
Manufacturer note: Benefits	Integrated ESD protection
Manufacturer note: Typical applications	Road, street and industry

Operating points

Point	Output current	Min./Max. forward voltage	Typ. current consumption	Output power	Typ. power consumption	Ambient temperature ta	tc point max	Operating modes / Grouping
1	200.0 mA	165 V; 285 V	305 mA	57 W	66.4 W	-40–70 °C	100.0 °C	High voltage output (HV)
2	250.0 mA	145 V; 285 V	361 mA	71.3 W	79.7 W	-40–70 °C	100.0 °C	High voltage output (HV)
3	300.0 mA	145 V; 285 V	420 mA	85.5 W	93.6 W	-40–70 °C	100.0 °C	High voltage output (HV)
4	350.0 mA	145 V; 285 V	482 mA	99.8 W	108.2 W	-40–70 °C	100.0 °C	High voltage output (HV)
5	400.0 mA	145 V; 285 V	546 mA	114 W	123.1 W	-40–70 °C	100.0 °C	High voltage output (HV)
6	450.0 mA	145 V; 285 V	612 mA	128.3 W	138.4 W	-40–65 °C	95.0 °C	High voltage output (HV)
7	500.0 mA	145 V; 285 V	680 mA	142.5 W	154 W	-40–65 °C	95.0 °C	High voltage output (HV)
8	550.0 mA	145 V; 285 V	748 mA	156.8 W	169.6 W	-40–65 °C	95.0 °C	High voltage output (HV)
9	600.0 mA	145 V; 275 V	784 mA	165 W	177.9 W	-40–65 °C	95.0 °C	High voltage output (HV)
10	650.0 mA	145 V; 253.8 V	776 mA	165 W	176.1 W	-40–60 °C	95.0 °C	High voltage output (HV)
11	700.0 mA	145 V; 235.7 V	769 mA	165 W	174.6 W	-40–60 °C	95.0 °C	High voltage output (HV)
12	750.0 mA	145 V; 220 V	770 mA	165 W	174.8 W	-40–65 °C	95.0 °C	High voltage output (HV)
13	800.0 mA	145 V; 206.3 V	771 mA	165 W	175.1 W	-40–65 °C	95.0 °C	High voltage output (HV)
14	850.0 mA	145 V; 194.1 V	778 mA	165 W	176.6 W	-40–60 °C	90.0 °C	High voltage output (HV)
15	900.0 mA	145 V; 183.3 V	770 mA	165 W	174.7 W	-40–60 °C	90.0 °C	High voltage output (HV)
16	950.0 mA	145 V; 173.7 V	765 mA	165 W	173.8 W	-40–60 °C	90.0 °C	High voltage output (HV)
17	1000.0 mA	145 V; 165 V	771 mA	165 W	175.1 W	-40–60 °C	85.0 °C	High voltage output (HV)
18	1050.0 mA	145 V; 157.1 V	784 mA	165 W	177.9 W	-40–60 °C	85.0 °C	High voltage output (HV)
19	200.0 mA	157 V; 157 V	191 mA	31.4 W	38.5 W	-40–70 °C	90.0 °C	Low voltage output (LV)
20	250.0 mA	132 V; 157 V	224 mA	39.3 W	46.5 W	-40–70 °C	90.0 °C	Low voltage output (LV)
21	300.0 mA	110 V; 157 V	256 mA	47.1 W	54.5 W	-40–70 °C	90.0 °C	Low voltage output (LV)
22	350.0 mA	94.3 V; 157 V	289 mA	55 W	62.6 W	-40–70 °C	95.0 °C	Low voltage output (LV)
23	400.0 mA	82.5 V; 157 V	321 mA	62.8 W	70.2 W	-40–70 °C	95.0 °C	Low voltage output (LV)
24	450.0 mA	80 V; 157 V	353 mA	70.7 W	77.9 W	-40–70 °C	95.0 °C	Low voltage output (LV)
25	500.0 mA	80 V; 157 V	386 mA	78.5 W	85.6 W	-40–70 °C	95.0 °C	Low voltage output (LV)
26	550.0 mA	80 V; 157 V	419 mA	86.4 W	93.4 W	-40–70 °C	95.0 °C	Low voltage output (LV)
27	600.0 mA	80 V; 157 V	453 mA	94.2 W	101.4 W	-40–70 °C	95.0 °C	Low voltage output (LV)
28	650.0 mA	80 V; 157 V	488 mA	102.1 W	109.5 W	-40–70 °C	95.0 °C	Low voltage output (LV)
29	700.0 mA	80 V; 157 V	523 mA	109.9 W	117.6 W	-40–70 °C	95.0 °C	Low voltage output (LV)
30	750.0 mA	80 V; 157 V	557 mA	117.8 W	125.7 W	-40–70 °C	95.0 °C	Low voltage output (LV)
31	800.0 mA	80 V; 157 V	593 mA	125.6 W	133.9 W	-40–70 °C	95.0 °C	Low voltage output (LV)
32	850.0 mA	80 V; 157 V	629 mA	135.5 W	142.3 W	-40–65 °C	95.0 °C	Low voltage output (LV)
33	900.0 mA	80 V; 157 V	665 mA	141.3 W	150.7 W	-40–65 °C	95.0 °C	Low voltage output (LV)
34	950.0 mA	80 V; 157 V	701 mA	149.2 W	159 W	-40–65 °C	95.0 °C	Low voltage output (LV)
35	1000.0 mA	80 V; 157 V	738 mA	157 W	167.5 W	-40–60 °C	90.0 °C	Low voltage output (LV)
36	1050.0 mA	80 V; 157 V	775 mA	164.9 W	176 W	-40–60 °C	90.0 °C	Low voltage output (LV)

The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.

Installation / application

Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.

Additional information

Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.

Main source of information: www.tridonic.com
