LED power supply Tridonic LCO 80W 200-1050mA 91V 2xCH pD+ NF C PRE3

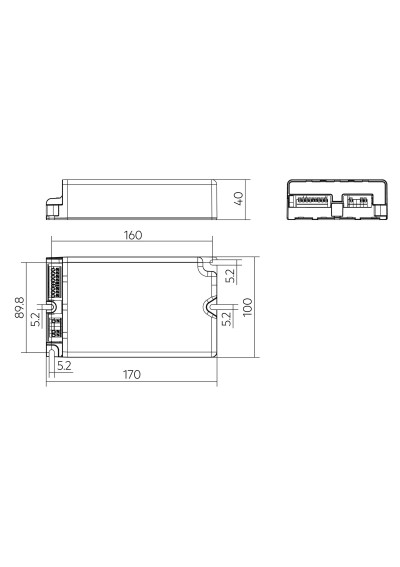

Dimensional drawing LCO 80W 200-1050mA 91V 2xCH pD+ NF C PRE3

LED power supply Tridonic LCO 80/200-1050/91 2xCH pD+ NF C PRE3

Name: LED power supply Tridonic LCO 80/200-1050/91 2xCH pD+ NF C PRE3
Brand: LEDownia.pl
SKU: zas_tridonic_87501041
Price: 625 PLN
Availability: BackOrder

625.00 PLN

Shipment in 8-10 working days

Category: Dimmable

Reference: zas_tridonic_87501041

LED power supply Tridonic LCO 80W 200-1050mA 91V 2xCH pD+ NF C PRE3 is a constant current LED driver rated up to 80 W. Values for individual settings are shown in the operating-point table. Documented interfaces and configuration methods: DALI, NFC.

Delivery

1-3 dni (PL), 3-10 dni (non-PL)

Return Policy

14 days

Description
Product Details

LED power supply Tridonic LCO 80W 200-1050mA 91V 2xCH pD+ NF C PRE3 is a constant current LED driver in the Driver LCO 80W 200–1050mA 91V 2xCH pD+ NF C PRE3 family. Official article number 87501041 identifies this physical version.

Key properties

Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.

Technical specifications

Manufacturer article number	87501041
Manufacturer family	Driver LCO 80W 200–1050mA 91V 2xCH pD+ NF C PRE3
Manufacturer product group	Compact drivers
Supply voltage	220 – 240 V
AC voltage range	198 – 264 V
DC voltage range	176 – 280 V
Mains frequency	0 / 50 / 60 Hz
Overvoltage protection	320 V AC, 48 h
Typ. current (at 230 V, 50 Hz, full load)	400 mA
Typ. current (220 V, 0 Hz, full load, XX % dimming level)	95 mA
Leakage current	<0.5 mA
Touch current (equipotential connected)	580 µA
Power Consumption	91 W
Typ. power input on stand-by 230 V	<0.3 W
Output power range	6–80 W
Typ. efficiency at 230 V	91 %
λ over full operating range (max.)	0.98
λ over full operating range (min.)	0.65C
THD at 230V, full load	<6 %
Starting time	<0.8 s; <0.7 s
Switchover time (AC/DC)	<0.3 s
Turn off time	<0.03 s
Output current tolerance, min./full load	±3 %
Max. output current peak (non-repetitive) + max. peak output current	≤ output current +15 %
Output LF current ripple (< 120 Hz) / Current ripple at full load	±5 %
Output P_ST_LM (at full load)	≤1
Output SVM (at full load)	≤0.4
Max. output voltage	150 V
Dimming range	1–100 %
Mains surge capability (between L - N)	6 kV
Mains surge capability (between L/N - PE)	10 kV
Burst protection	6 kV
Surge voltage at output side (against PE)	<1 kV
Type of protection	IP20
Length	170 mm
Width	100 mm
Height	40 mm
Lifetime	up to 100000 h
Guarantee	8 years
Output mode	CC
Maximum output power [W]	80
Input voltage	220 – 240 V
IP grade	IP20
Warranty [years]	8
THD	<6 %
Typ. efficiency at 230 V	91 %
λ over full operating range (max.)	0.98
Dimensions L×W×H	170 × 100 × 40 mm
Lifetime [h]	up to 100000 h
Product net weight	0.966 kg
Interfaces and configuration	DALI, NFC
Dimming / control	DALI
Dimming	Yes
Configuration method	NFC
short_circuit_protection	Yes
overload_protection	Yes
no_load_protection	Yes
Manufacturer note: Product description	Dimmable constant current D4i LED driver with two channels for outdoor applications
Manufacturer note: Product description	Perfect in combination with two channel LED modules RLE 2x4 / 2x8 2xCH (https://www.tridonic.com/en/int/product/31843?tab=0)
Manufacturer note: Product description	Dimming range 1 – 100 % (min. 2 mA)
Manufacturer note: Product description	For luminaires of protection class I and protection class II
Manufacturer note: Product description	Temperature protection as per EN 61347-2-13 C5e
Manufacturer note: Product description	Output current adjustable between 200 – 1,050 mA for each channel via NFC or DALI
Manufacturer note: Product description	Max. output power 80 W shared between the two channels
Manufacturer note: Product description	Up to 91 % efficiency
Manufacturer note: Product description	Low stand-by input power < 0.3 W
Manufacturer note: Product description	Nominal lifetime of 100,000 h and 8 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Manufacturer note: Interfaces	Near field communication (NFC)
Manufacturer note: Interfaces	Powered DALI-2
Manufacturer note: Interfaces	U6Me2 (configuration of chronoSTEP via mains and ready2mains Programmer)
Manufacturer note: Interfaces	Terminal blocks: 45° push terminals
Manufacturer note: Functions	DALI 1 x DT8 (TC), 2 x DT6 or 1 x (2 x DT6) modes selectable at configuration
Manufacturer note: Functions	Adjustable output current in 1-mA-steps (NFC, DALI)
Manufacturer note: Functions	Programmable chronoSTEP: times, levels and CCT (NFC, DALI, U6Me2)
Manufacturer note: Functions	Enhanced constant light output function (eCLO)
Manufacturer note: Functions	Built-in power metering
Manufacturer note: Functions	Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Manufacturer note: Functions	Intelligent Temperature Guard (ITG)
Manufacturer note: Functions	Intelligent Voltage Guard Plus (IVG+)
Manufacturer note: Functions	Configurable external temperature management (ETM)
Manufacturer note: Functions	Auxiliary 24 V, 3 W power supply for sensors and communication modules
Manufacturer note: Functions	DiiA/Zhaga connectivity extensions DT49, DT50, DT51, DT52
Manufacturer note: Functions	deviceKEY against unauthorized change of parameters
Manufacturer note: Benefits	Flexible configuration via companionSUITE (NFC, DAL) or ready2mains Programmer via U6Me2 protocol
Manufacturer note: Benefits	Best energy savings due to low stand-by losses and high efficiency
Manufacturer note: Benefits	In-field programming possible after installation with NFC interface and ready2mains
Manufacturer note: Benefits	High overvoltage protection: up to 10 kV asymmetric (protection class I and II)
Manufacturer note: Benefits	Integrated ESD protection
Manufacturer note: Typical applications	Tunable white applications
Manufacturer note: Typical applications	Road, street and industry
Manufacturer note: Typical applications	Tunnel lighting

Operating points

Point	Output current	Min./Max. forward voltage	Typ. current consumption	Output power	Typ. power consumption	Ambient temperature ta	tc point max	Operating modes / Grouping
1	200.0 mA	30 V; 91 V	103 mA	18.2 W	22.8 W	-40–70 °C	85.0 °C	DT8, Tunable white operation
2	250.0 mA	30 V; 91 V	122 mA	22.8 W	27.4 W	-40–70 °C	85.0 °C	DT8, Tunable white operation
3	300.0 mA	30 V; 91 V	142 mA	27.3 W	32 W	-40–70 °C	85.0 °C	DT8, Tunable white operation
4	350.0 mA	30 V; 91 V	163 mA	31.9 W	36.9 W	-40–70 °C	85.0 °C	DT8, Tunable white operation
5	400.0 mA	30 V; 91 V	183 mA	36.4 W	41.7 W	-40–70 °C	85.0 °C	DT8, Tunable white operation
6	450.0 mA	30 V; 91 V	203 mA	41 W	46.4 W	-40–70 °C	85.0 °C	DT8, Tunable white operation
7	500.0 mA	30 V; 91 V	224 mA	45.5 W	51.1 W	-40–60 °C	80.0 °C	DT8, Tunable white operation
8	550.0 mA	30 V; 91 V	244 mA	50.1 W	55.9 W	-40–60 °C	80.0 °C	DT8, Tunable white operation
9	600.0 mA	30 V; 91 V	265 mA	54.6 W	60.6 W	-40–60 °C	80.0 °C	DT8, Tunable white operation
10	650.0 mA	30 V; 91 V	285 mA	59.2 W	65.5 W	-40–60 °C	80.0 °C	DT8, Tunable white operation
11	700.0 mA	30 V; 91 V	306 mA	63.7 W	70.4 W	-40–60 °C	80.0 °C	DT8, Tunable white operation
12	750.0 mA	30 V; 91 V	327 mA	68.3 W	75.2 W	-40–60 °C	80.0 °C	DT8, Tunable white operation
13	800.0 mA	30 V; 91 V	348 mA	72.8 W	80 W	-40–60 °C	80.0 °C	DT8, Tunable white operation
14	850.0 mA	30 V; 91 V	369 mA	77.4 W	85 W	-40–60 °C	80.0 °C	DT8, Tunable white operation
15	900.0 mA	30 V; 88.9 V	381 mA	80 W	88 W	-40–60 °C	80.0 °C	DT8, Tunable white operation
16	950.0 mA	30 V; 84.2 V	382 mA	80 W	88 W	-40–60 °C	80.0 °C	DT8, Tunable white operation
17	1000.0 mA	30 V; 80 V	382 mA	80 W	88.2 W	-40–60 °C	80.0 °C	DT8, Tunable white operation
18	1050.0 mA	30 V; 76.2 V	383 mA	80 W	88.5 W	-40–60 °C	80.0 °C	DT8, Tunable white operation
19	200.0 mA	30 V; 91 V	184 mA	36.4 W	41.8 W	-40–70 °C	85.0 °C	DT6, 2 channel operation (50 % load per channel)
20	250.0 mA	30 V; 91 V	224 mA	45.5 W	51.1 W	-40–70 °C	85.0 °C	DT6, 2 channel operation (50 % load per channel)
21	300.0 mA	30 V; 91 V	265 mA	54.6 W	60.5 W	-40–70 °C	85.0 °C	DT6, 2 channel operation (50 % load per channel)
22	350.0 mA	30 V; 91 V	307 mA	63.7 W	70.2 W	-40–70 °C	85.0 °C	DT6, 2 channel operation (50 % load per channel)
23	400.0 mA	30 V; 91 V	350 mA	72.8 W	79.9 W	-40–70 °C	85.0 °C	DT6, 2 channel operation (50 % load per channel)
24	450.0 mA	30 V; 88.9 V	383 mA	80 W	87.6 W	-40–70 °C	85.0 °C	DT6, 2 channel operation (50 % load per channel)
25	500.0 mA	30 V; 80 V	385 mA	80 W	88.1 W	-40–60 °C	80.0 °C	DT6, 2 channel operation (50 % load per channel)
26	550.0 mA	30 V; 72.7 V	386 mA	80 W	88.3 W	-40–60 °C	80.0 °C	DT6, 2 channel operation (50 % load per channel)
27	600.0 mA	30 V; 66.7 V	387 mA	80 W	88.4 W	-40–60 °C	80.0 °C	DT6, 2 channel operation (50 % load per channel)
28	650.0 mA	30 V; 61.5 V	388 mA	80 W	88.6 W	-40–60 °C	80.0 °C	DT6, 2 channel operation (50 % load per channel)
29	700.0 mA	30 V; 57.1 V	389 mA	80 W	88.8 W	-40–60 °C	80.0 °C	DT6, 2 channel operation (50 % load per channel)
30	750.0 mA	30 V; 53.3 V	389 mA	80 W	88.9 W	-40–60 °C	80.0 °C	DT6, 2 channel operation (50 % load per channel)
31	800.0 mA	30 V; 50 V	390 mA	80 W	89 W	-40–60 °C	80.0 °C	DT6, 2 channel operation (50 % load per channel)
32	850.0 mA	30 V; 47.1 V	391 mA	80 W	89.2 W	-40–60 °C	80.0 °C	DT6, 2 channel operation (50 % load per channel)
33	900.0 mA	30 V; 44.4 V	392 mA	80 W	89.4 W	-40–60 °C	80.0 °C	DT6, 2 channel operation (50 % load per channel)
34	950.0 mA	30 V; 42.1 V	393 mA	80 W	89.5 W	-40–60 °C	80.0 °C	DT6, 2 channel operation (50 % load per channel)
35	1000.0 mA	30 V; 40 V	393 mA	80 W	89.7 W	-40–60 °C	80.0 °C	DT6, 2 channel operation (50 % load per channel)
36	1050.0 mA	30 V; 38.1 V	395 mA	80 W	89.7 W	-40–60 °C	80.0 °C	DT6, 2 channel operation (50 % load per channel)

The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.

Installation / application

Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.

Additional information

Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.

Main source of information: www.tridonic.com
