LED power supply Tridonic LC 60/75-330/330 D4i NF h16 PRE4
LED power supply Tridonic LC 60W 75-330mA 330V D4i NF h16 PRE4 is a constant current LED driver rated up to 60 W. Its adjustable output current range is 75–350 mA. Documented interfaces and configuration methods: DALI, NFC, switchDIM.
LED power supply Tridonic LC 60/75-330/330 D4i NF h16 PRE4
327.00 PLN
Shipment in 8-10 working days
zas_tridonic_28005104
LED power supply Tridonic LC 60W 75-330mA 330V D4i NF h16 PRE4 is a constant current LED driver rated up to 60 W. Its adjustable output current range is 75–350 mA. Documented interfaces and configuration methods: DALI, NFC, switchDIM.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LC 60W 75-330mA 330V D4i NF h16 PRE4 is a constant current LED driver in the Driver LC 60W 75–330mA 330V D4i NF h16 PRE4 family. Official article number 28005104 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 28005104 |
|---|---|
| Manufacturer family | Driver LC 60W 75–330mA 330V D4i NF h16 PRE4 |
| Manufacturer product group | Linear drivers |
| Supply voltage | 220 – 240 V |
| AC voltage range | 198 – 264 V |
| DC voltage range | 176 – 280 V |
| Mains frequency | 0 / 50 / 60 Hz |
| Overvoltage protection | 320 V AC, 48 h |
| Typ. current (at 230 V, 50 Hz, full load) | 284 mA |
| Typ. current (220 V, 0 Hz, full load, XX % dimming level) | 53 mA |
| Leakage current | <0.25 mA |
| Typ. input current in no-load operation | 24 mA |
| Power Consumption | 64.3 W |
| Typ. power input on stand-by 230 V | <0.15 W |
| Typ. input power in no-load operation | 0.29 W |
| Output power range | 7.5–60 W |
| Typ. efficiency at 230 V | 94.6 % |
| λ over full operating range (max.) | 0.99 |
| λ over full operating range (min.) | 0.67C |
| THD at 230V, full load | <7 % |
| Starting time | <0.3 s; <0.7 s |
| Switchover time (AC/DC) | <0.1 s |
| Turn off time | <0.01 s |
| Output current tolerance, min./full load | ±3 % |
| Max. output current peak (non-repetitive) + max. peak output current | ≤ output current +40 % |
| Output LF current ripple (< 120 Hz) / Current ripple at full load | ±1.5 % |
| Output P_ST_LM (at full load) | ≤1 |
| Output SVM (at full load) | ≤0.4 |
| Max. output voltage | 350 V |
| Dimming range | 1–100 % |
| Mains surge capability (between L - N) | 1 kV |
| Mains surge capability (between L/N - PE) | 2 kV |
| Surge voltage at output side (against PE) | <2 kV |
| Type of protection | IP20 |
| Length | 280 mm |
| Width | 30 mm |
| Height | 16 mm |
| Lifetime | up to 100000 h |
| Guarantee | 5 years |
| Output mode | CC |
| Maximum output power [W] | 60 |
| Input voltage | 220 – 240 V |
| IP grade | IP20 |
| Warranty [years] | 5 |
| THD | <7 % |
| Typ. efficiency at 230 V | 94.6 % |
| λ over full operating range (max.) | 0.99 |

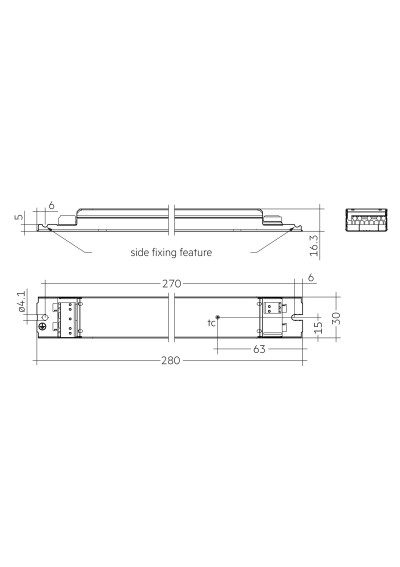

| Dimensions L×W×H | 280 × 30 × 16 mm |
| Lifetime [h] | up to 100000 h |
| Minimum output current [mA] | 75 |
| Maximum output current [mA] | 350 |
| Product net weight | 0.163 kg |
| Interfaces and configuration | DALI, NFC, switchDIM |
| Dimming / control | DALI, switchDIM |
| Dimming | Yes |
| Configuration method | NFC |
| short_circuit_protection | Yes |
| overload_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) |
| Manufacturer note: Product description | Dimmable built-in constant current LED driver |
| Manufacturer note: Product description | Dimming range 1 to 100 % (min. 3.3 mA) |
| Manufacturer note: Product description | For luminaires of protection class I and protection class II |
| Manufacturer note: Product description | Adjustable output current between 75 and 350 mA |
| Manufacturer note: Product description | Max. output power 60 W |
| Manufacturer note: Product description | Up to 94.6 % efficiency |
| Manufacturer note: Product description | Power input on stand-by < 0.15 W |
| Manufacturer note: Product description | Nominal lifetime up to 100,000 h |
| Manufacturer note: Product description | 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Housing properties | Low profile metal casing with white cover |
| Manufacturer note: Housing properties | Only 16 mm housing height |
| Manufacturer note: Housing properties | Type of protection IP20 |
| Manufacturer note: Interfaces | Near field communication (NFC) |
| Manufacturer note: Interfaces | one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) |
| Manufacturer note: Interfaces | Terminal blocks: 0° push terminals |
| Manufacturer note: Functions | Adjustable output current in 1-mA-steps (NFC, DALI) |
| Manufacturer note: Functions | Fulfills DALI-2 parts: 250 (Integrated bus power supply), 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) |
| Manufacturer note: Functions | Constant light output function (CLO) |
| Manufacturer note: Functions | Power-up fading at AC |
| Manufacturer note: Functions | Switch off the driver with fade2zero |
| Manufacturer note: Functions | Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) |
| Manufacturer note: Functions | Suitable for emergency escape lighting systems acc. to EN 50172 |
| Manufacturer note: Functions | LTI (Lifetime Indicator) |
| Manufacturer note: Benefits | Flexible configuration via companionSUITE |
| Manufacturer note: Benefits | Support NFC multiple programming (full carton box) |
| Manufacturer note: Benefits | Application-oriented operating window for maximum compatibility |
| Manufacturer note: Benefits | Best energy savings due to low stand-by losses and high efficiency |
| Manufacturer note: Benefits | Reliability proven by lifetime up to 100,000 h and 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Typical applications | For linear/area lighting in office applications |
Operating points
| Point | Output current | Min./Max. forward voltage | Typ. current consumption | Output power | Typ. power consumption | Ambient temperature ta | tc point max |
|---|---|---|---|---|---|---|---|
| 1 | 75.0 mA | 100 V; 330 V | 124 mA | 25 W | 26.9 W | -25–70 °C | 82.0 °C |
| 2 | 100.0 mA | 100 V; 330 V | 160 mA | 33 W | 35.4 W | -25–65 °C | 78.0 °C |
| 3 | 125.0 mA | 100 V; 330 V | 196 mA | 41.2 W | 43.9 W | -25–65 °C | 80.0 °C |
| 4 | 150.0 mA | 100 V; 330 V | 233 mA | 50 W | 52.5 W | -25–65 °C | 80.0 °C |
| 5 | 175.0 mA | 100 V; 330 V | 270 mA | 57.7 W | 61.1 W | -25–60 °C | 79.0 °C |
| 6 | 200.0 mA | 100 V; 300 V | 280 mA | 60 W | 63.6 W | -25–60 °C | 79.0 °C |
| 7 | 225.0 mA | 100 V; 266.7 V | 281 mA | 60 W | 63.8 W | -25–60 °C | 81.0 °C |
| 8 | 250.0 mA | 100 V; 240 V | 282 mA | 60 W | 63.9 W | -25–60 °C | 81.0 °C |
| 9 | 275.0 mA | 100 V; 218.2 V | 282 mA | 60 W | 64.1 W | -25–55 °C | 79.0 °C |
| 10 | 300.0 mA | 100 V; 200 V | 283 mA | 60 W | 64.2 W | -25–55 °C | 79.0 °C |
| 11 | 330.0 mA | 100 V; 181 V | 284 mA | 60 W | 64.3 W | -25–55 °C | 80.0 °C |
The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.
Installation / application
Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
zas_tridonic_28005104
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 60
- CC operating window
- 100-330
- Min. output voltage of led driver (CC)
- 100
- Max. output voltage of led driver (CC)
- 330
- Dimming / Control
- DALI, switchDIM
- Dimensions (L x W x H) [mm]
- 280 × 30 × 16 mm
- IP grade
- 20
- Length [mm]
- 280
- Width [mm]
- 30
- Height/thickness [mm]
- 16
- Warranty [years]
- 5
- Input voltage [V]
- 220-240
- Power factor
- 0.99
