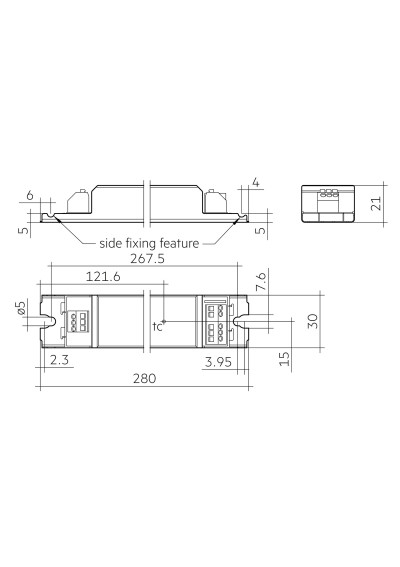

LED power supply Tridonic LC 20/200-650/54 0-10V NAX lp EXC2 UNV
LED power supply Tridonic LC 20W 200-650mA 54V 0-10V NAX lp EXC2 UNV is a constant current LED driver rated up to 20 W. Its adjustable output current range is 200–650 mA. Documented interfaces and configuration methods: NFC.
LED power supply Tridonic LC 20/200-650/54 0-10V NAX lp EXC2 UNV
279.00 PLN
Shipment in 8-10 working days
zas_tridonic_87500847
LED power supply Tridonic LC 20W 200-650mA 54V 0-10V NAX lp EXC2 UNV is a constant current LED driver rated up to 20 W. Its adjustable output current range is 200–650 mA. Documented interfaces and configuration methods: NFC.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LC 20W 200-650mA 54V 0-10V NAX lp EXC2 UNV is a constant current LED driver in the Driver LC 20W 200–650mA 0-10V NFC AUX lp EXC2 UNV family. Official article number 87500847 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 87500847 |
|---|---|
| Manufacturer family | Driver LC 20W 200–650mA 0-10V NFC AUX lp EXC2 UNV |
| Manufacturer product group | Linear drivers |
| Supply voltage | 120 – 277 V |
| AC voltage range | 108 – 305 V |
| Mains frequency | 50 / 60 Hz |
| Typ. current (at XXX V, 60 Hz, full load) | 90 mA; 195 mA |
| Leakage current | <0.75 mA; <0.75 mA |
| Typ. input current in no-load operation | 24 mA; 12 mA |
| In-rush current (peak / duration at XXX V) | 4 A / 11 µs; 0.96 A / 27 µs |
| Max. input power | 24 W; 24.1 W |
| Typ. power input on stand-by XXX V | <0.5 W; <0.5 W |
| Typ. input power in no-load operation | 0.9 W; 0.4 W |
| Typ. efficiency at 120 V | 85 %; 84.6 % |
| λ over full operating range (min.) | 0.94C; 0.99 |
| THD (at XXX V, 60 Hz, full load) | <20 %; <10 % |
| Starting time | ≤0.5 s; ≤0.5 s |
| Turn off time | <0.03 s |
| Hold on time | <0.02 s |
| Output current tolerance, min./full load | ±5 % |
| Max. output current peak (non-repetitive) + max. peak output current | ≤ output current +5 % |
| Output LF current ripple (< 120 Hz) / Current ripple at full load | ±5 % |
| Output P_ST_LM (at full load) | ≤1 |
| Output SVM (at full load) | ≤0.4 |
| Max. output voltage | 60 V |
| Dimming range | 1–100 % |
| Mains surge capability (between L - N) | 2 kV |
| Mains surge capability (between L/N - PE) | 2.5 kV |
| Surge voltage at output side (against PE) | 0.5 kV |
| Type of protection | IP20 |
| Length | 280 mm |
| Width | 30 mm |
| Height | 21 mm |
| Lifetime | up to 100000 h |
| Guarantee | 5 years |
| Output mode | CC |
| Maximum output power [W] | 20 |
| Input voltage | 120 – 277 V |
| IP grade | IP20 |
| Warranty [years] | 5 |
| Dimensions L×W×H | 280 × 30 × 21 mm |
| Lifetime [h] | up to 100000 h |
| Minimum output current [mA] | 200 |
| Maximum output current [mA] | 650 |
| Product net weight | 0.205 kg |
| Interfaces and configuration | NFC |
| Dimming | Yes |
| Configuration method | NFC |
| short_circuit_protection | Yes |
| overload_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | Constant current LED driver |
| Manufacturer note: Product description | Dimmable via 0 ... 10 V interface (incl. stand-by) |
| Manufacturer note: Product description | Dimming range 1 – 100 % (incl. stand-by) |
| Manufacturer note: Product description | UL8750 with class 2 output based on UL1310 |
| Manufacturer note: Product description | UL Listed Class P |
| Manufacturer note: Product description | FCC Part 15 Class A |
| Manufacturer note: Product description | Adjustable output current between 200 and 650 mA with NFC |
| Manufacturer note: Product description | Max. output power 20 W |
| Manufacturer note: Product description | Up to 85 % efficiency |
| Manufacturer note: Product description | Meets Strictest Flicker Free Performance Standards |
| Manufacturer note: Product description | Nominal lifetime up to 100,000 h |
| Manufacturer note: Product description | 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Housing properties | Casing: metal, white |
| Manufacturer note: Housing properties | Type of protection IP20 |
| Manufacturer note: Housing properties | Dry and damp location |
| Manufacturer note: Functions | Adjustable output current in 1-mA-steps (NFC) |
| Manufacturer note: Functions | 24 V AUX output |
| Manufacturer note: Functions | Fade-off time programmable |
| Manufacturer note: Functions | Protective features (overtemperature, short-circuit, overload, no-load, input voltage range) |
| Manufacturer note: Benefits | Operating window for maximum compatibility |
| Manufacturer note: Benefits | Added energy savings with dimming via 0 .... 10 V interface |
| Manufacturer note: Benefits | Configurable via NFC |
| Manufacturer note: Benefits | Meets California Title 24 |
| Manufacturer note: Benefits | Tailor your dimming response with either Linear, Logarithmic or Square Dimming Curves |
| Manufacturer note: Typical applications | For linear/area lighting in office, education, healthcare, and general lighting applications |
Operating points
| Point | Output current | Min./Max. forward voltage | Typ. current consumption | Output power | Typ. power consumption | Ambient temperature ta | tc point max |
|---|---|---|---|---|---|---|---|
| 1 | 200.0 mA | 20 V; 54 V | 57 mA; 108 mA | 10.8 W; 10.8 W | 13.2 W; 13 W | -25–55 °C | 60.0 °C |
| 2 | 250.0 mA | 20 V; 54 V | 66 mA; 133 mA | 13.5 W; 13.5 W | 16.2 W; 15.9 W | -25–55 °C | 60.0 °C |
| 3 | 300.0 mA | 20 V; 54 V | 73 mA; 158 mA | 16.2 W; 16.2 W | 19 W; 18.9 W | -25–55 °C | 60.0 °C |
| 4 | 350.0 mA | 20 V; 54 V | 85 mA; 181 mA | 18.9 W; 18.9 W | 21.8 W; 21.8 W | -25–55 °C | 60.0 °C |
| 5 | 400.0 mA | 20 V; 50 V | 88 mA; 194 mA | 20 W; 20 W | 23.3 W; 23.4 W | -25–55 °C | 65.0 °C |
| 6 | 450.0 mA | 20 V; 44.4 V | 89 mA; 197 mA | 20 W; 20 W | 23.5 W; 23.6 W | -25–55 °C | 65.0 °C |
| 7 | 500.0 mA | 20 V; 40 V | 88 mA; 192 mA | 20 W; 20 W | 23.2 W; 23.1 W | -25–55 °C | 65.0 °C |
| 8 | 550.0 mA | 20 V; 36.4 V | 90 mA; 198 mA | 20 W; 20 W | 23.7 W; 23.8 W | -25–55 °C | 65.0 °C |
| 9 | 600.0 mA | 20 V; 33.3 V | 89 mA; 195 mA | 20 W; 20 W | 23.5 W; 23.6 W | -25–55 °C | 70.0 °C |
| 10 | 650.0 mA | 20 V; 30.7 V | 87 mA; 194 mA | 20 W; 20 W | 23.4 W; 23.6 W | -25–55 °C | 70.0 °C |
The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.
Installation / application
Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
