LED power supply Tridonic LCO 40W 200-1050mA 64V pD+ NF C PRE3

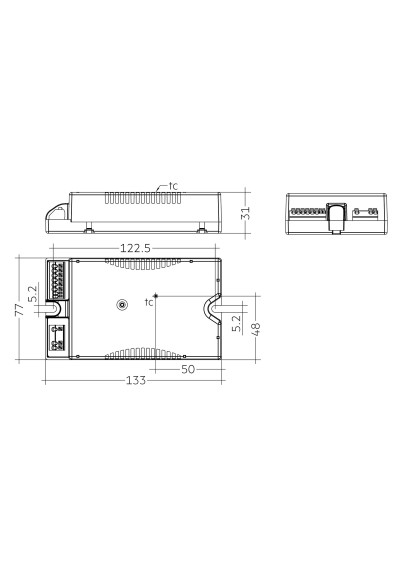

Dimensional drawing LCO 40W 200-1050mA 64V pD+ NF C PRE3

LED power supply Tridonic LCO 40/200-1050/64 pD+ NF C PRE3

Name: LED power supply Tridonic LCO 40/200-1050/64 pD+ NF C PRE3
Brand: LEDownia.pl
SKU: zas_tridonic_28004662
Price: 314 PLN
Availability: BackOrder

314.00 PLN

Shipment in 8-10 working days

Category: Dimmable

Reference: zas_tridonic_28004662

LED power supply Tridonic LCO 40W 200-1050mA 64V pD+ NF C PRE3 is a constant current LED driver rated up to 40 W. Values for individual settings are shown in the operating-point table. Documented interfaces and configuration methods: DALI, NFC.

Delivery

1-3 dni (PL), 3-10 dni (non-PL)

Return Policy

14 days

Description
Product Details

LED power supply Tridonic LCO 40W 200-1050mA 64V pD+ NF C PRE3 is a constant current LED driver in the Driver LCO 40W 200–1050mA 64V pD+ NF C PRE3 family. Official article number 28004662 identifies this physical version.

Key properties

Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.

Technical specifications

Manufacturer article number	28004662
Manufacturer family	Driver LCO 40W 200–1050mA 64V pD+ NF C PRE3
Manufacturer product group	Compact drivers
Supply voltage	220 – 240 V
AC voltage range	198 – 264 V
DC voltage range	176 – 280 V
Mains frequency	0 / 50 / 60 Hz
Overvoltage protection	320 V AC, 48 h
Typ. current (at 230 V, 50 Hz, full load)	270 mA
Typ. current (220 V, 0 Hz, full load, XX % dimming level)	42 mA
Leakage current	<0.5 mA
Touch current (equipotential connected)	440 µA
Power Consumption	53 W
Typ. power input on stand-by 230 V	<0.3 W
Output power range	6.4–40 W
Typ. efficiency at 230 V	89.8 %
λ over full operating range (max.)	0.97
THD at 230V, full load	<8 %
Starting time	<0.65 s; <0.75 s
Switchover time (AC/DC)	<0.3 s
Turn off time	<0.5 s
Output current tolerance, min./full load	±3 %
Max. output current peak (non-repetitive) + max. peak output current	≤ output current +15 %
Output LF current ripple (< 120 Hz) / Current ripple at full load	±3.3 %
Output P_ST_LM (at full load)	≤1
Output SVM (at full load)	≤0.4
Max. output voltage	90 V; 50 V; 90 V
Dimming range	1–100 %
Mains surge capability (between L - N)	6 kV / 3 kA
Mains surge capability (between L/N - PE)	10 kV
Burst protection	6 kV
Surge voltage at output side (against PE)	<1 kV
Type of protection	IP20
Length	133 mm
Width	77 mm
Height	31 mm
Lifetime	up to 100000 h
Guarantee	8 years
Output mode	CC
Maximum output power [W]	40
Input voltage	220 – 240 V
IP grade	IP20
Warranty [years]	8
THD	<8 %
Typ. efficiency at 230 V	89.8 %
λ over full operating range (max.)	0.97
Dimensions L×W×H	133 × 77 × 31 mm
Lifetime [h]	up to 100000 h
Product net weight	0.3 kg
Interfaces and configuration	DALI, NFC
Dimming / control	DALI
Dimming	Yes
Configuration method	NFC
SELV	Yes
short_circuit_protection	Yes
overload_protection	Yes
no_load_protection	Yes
Manufacturer note: Product description	Dimmable built-in constant current outdoor D4i LED driver
Manufacturer note: Product description	Dimming range 1 to 100 % (min. 10 mA)
Manufacturer note: Product description	For luminaires of protection class I and protection class II
Manufacturer note: Product description	SELV for output voltage < 120 V DC
Manufacturer note: Product description	Temperature protection as per EN 61347-2-13 C5e
Manufacturer note: Product description	Output current adjustable between 200 – 1,050 mA via NFC, DALI or ready2mains Programmer
Manufacturer note: Product description	Max. output power 40 W
Manufacturer note: Product description	Up to 89.8 % efficiency
Manufacturer note: Product description	Lowest power input on stand-by < 0.3 W
Manufacturer note: Product description	BIS approval mark for art. no.: 87500830
Manufacturer note: Product description	Nominal lifetime of 100,000 h and 8 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Manufacturer note: Interfaces	Near field communication (NFC)
Manufacturer note: Interfaces	Powered DALI-2
Manufacturer note: Interfaces	ready2mains (configuration via mains)
Manufacturer note: Interfaces	U6Me2 (configuration of chronoSTEP via mains and ready2mains Programmer)
Manufacturer note: Interfaces	Terminal blocks: 45° push terminals
Manufacturer note: Functions	Adjustable output current in 1-mA-steps (NFC, DALI, ready2mains)
Manufacturer note: Functions	Programmable chronoSTEP: times and levels (NFC, DALI, U6Me2)
Manufacturer note: Functions	Enhanced constant light output function (eCLO)
Manufacturer note: Functions	Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Manufacturer note: Functions	Intelligent Temperature Guard (ITG)
Manufacturer note: Functions	Intelligent Voltage Guard Plus (IVG+)
Manufacturer note: Functions	Configurable external temperature management (ETM)
Manufacturer note: Functions	Auxiliary 24 V, 3 W power supply
Manufacturer note: Functions	DiiA/Zhaga connectivity extensions DT49, DT50, DT51, DT52
Manufacturer note: Benefits	Flexible configuration via companionSUITE (NFC, DALI, ready2mains™) or U6Me2 programmer
Manufacturer note: Benefits	Operating window for maximum compatibility
Manufacturer note: Benefits	Best energy savings due to low stand-by losses and high efficiency
Manufacturer note: Benefits	In-field programming possible after installation with NFC interface and ready2mains
Manufacturer note: Benefits	High overvoltage protection: up to 10 kV asymmetric (protection class I and II)
Manufacturer note: Benefits	Integrated ESD protection
Manufacturer note: Typical applications	Road, street and industry

Operating points

Point	Output current	Min./Max. forward voltage	Typ. current consumption	Output power	Typ. power consumption	Ambient temperature ta	tc point max	Operating modes / Grouping
1	200.0 mA	32 V; 64 V	73 mA	12.8 W	15.8 W	-40–70 °C	90.0 °C	High voltage output (HV)
2	250.0 mA	30 V; 64 V	87 mA	16 W	19.1 W	-40–70 °C	90.0 °C	High voltage output (HV)
3	300.0 mA	30 V; 64 V	101 mA	19.2 W	22.5 W	-40–70 °C	90.0 °C	High voltage output (HV)
4	350.0 mA	30 V; 64 V	115 mA	22.4 W	25.8 W	-40–70 °C	90.0 °C	High voltage output (HV)
5	400.0 mA	30 V; 64 V	130 mA	25.6 W	29.2 W	-40–70 °C	90.0 °C	High voltage output (HV)
6	450.0 mA	30 V; 64 V	144 mA	28.8 W	32.6 W	-40–70 °C	90.0 °C	High voltage output (HV)
7	500.0 mA	30 V; 64 V	159 mA	32 W	36.1 W	-40–70 °C	90.0 °C	High voltage output (HV)
8	550.0 mA	30 V; 64 V	174 mA	35.2 W	39.5 W	-40–70 °C	90.0 °C	High voltage output (HV)
9	600.0 mA	30 V; 64 V	189 mA	38.4 W	42.9 W	-40–70 °C	90.0 °C	High voltage output (HV)
10	650.0 mA	30 V; 61.5 V	196 mA	40 W	44.7 W	-40–70 °C	90.0 °C	High voltage output (HV)
11	700.0 mA	30 V; 57.1 V	196 mA	40 W	44.6 W	-40–70 °C	90.0 °C	High voltage output (HV)
12	750.0 mA	30 V; 53.3 V	196 mA	40 W	44.7 W	-40–70 °C	90.0 °C	High voltage output (HV)
13	800.0 mA	30 V; 50 V	197 mA	40 W	44.8 W	-40–70 °C	90.0 °C	High voltage output (HV)
14	850.0 mA	30 V; 47.1 V	196 mA	40 W	44.7 W	-40–70 °C	90.0 °C	High voltage output (HV)
15	900.0 mA	30 V; 44.4 V	195 mA	40 W	44.4 W	-40–70 °C	90.0 °C	High voltage output (HV)
16	950.0 mA	30 V; 42.1 V	196 mA	40 W	44.7 W	-40–70 °C	90.0 °C	High voltage output (HV)
17	1000.0 mA	30 V; 40 V	197 mA	40 W	44.8 W	-40–70 °C	90.0 °C	High voltage output (HV)
18	1050.0 mA	30 V; 38.1 V	196 mA	40 W	44.7 W	-40–70 °C	90.0 °C	High voltage output (HV)
19	200.0 mA	32 V; 38 V	53 mA	7.6 W	10.8 W	-40–70 °C	90.0 °C	Low voltage output (LV)
20	250.0 mA	25.6 V; 38 V	61 mA	9.5 W	12.8 W	-40–70 °C	90.0 °C	Low voltage output (LV)
21	300.0 mA	21.3 V; 38 V	69 mA	11.4 W	14.8 W	-40–70 °C	90.0 °C	Low voltage output (LV)
22	350.0 mA	18.3 V; 38 V	77 mA	13.3 W	16.8 W	-40–70 °C	90.0 °C	Low voltage output (LV)
23	400.0 mA	18 V; 38 V	86 mA	15.2 W	18.8 W	-40–70 °C	90.0 °C	Low voltage output (LV)
24	450.0 mA	18 V; 38 V	94 mA	17.1 W	20.8 W	-40–65 °C	85.0 °C	Low voltage output (LV)
25	500.0 mA	18 V; 38 V	103 mA	19 W	23 W	-40–65 °C	85.0 °C	Low voltage output (LV)
26	550.0 mA	18 V; 38 V	111 mA	20.9 W	14.9 W	-40–65 °C	85.0 °C	Low voltage output (LV)
27	600.0 mA	18 V; 38 V	120 mA	22.8 W	26.9 W	-40–65 °C	85.0 °C	Low voltage output (LV)
28	650.0 mA	18 V; 38 V	129 mA	24.7 W	28.9 W	-40–65 °C	85.0 °C	Low voltage output (LV)
29	700.0 mA	18 V; 38 V	137 mA	26.6 W	31 W	-40–65 °C	85.0 °C	Low voltage output (LV)
30	750.0 mA	18 V; 38 V	147 mA	28.5 W	33.1 W	-40–65 °C	85.0 °C	Low voltage output (LV)
31	800.0 mA	18 V; 38 V	155 mA	30.4 W	35.1 W	-40–65 °C	85.0 °C	Low voltage output (LV)
32	850.0 mA	18 V; 38 V	165 mA	32.3 W	37.3 W	-40–65 °C	90.0 °C	Low voltage output (LV)
33	900.0 mA	18 V; 38 V	174 mA	34.2 W	39.4 W	-40–65 °C	90.0 °C	Low voltage output (LV)
34	950.0 mA	18 V; 38 V	183 mA	36.1 W	41.5 W	-40–65 °C	90.0 °C	Low voltage output (LV)
35	1000.0 mA	18 V; 38 V	191 mA	38 W	43.5 W	-40–65 °C	90.0 °C	Low voltage output (LV)
36	1050.0 mA	18 V; 38 V	201 mA	39.9 W	45.7 W	-40–65 °C	90.0 °C	Low voltage output (LV)

The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.

Installation / application

Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.

Additional information

Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.

Main source of information: www.tridonic.com
