Mean Well ODLV-45A-36 45 W PWM-output CV LED driver 36 V DC
Mean Well ODLV-45A-36 45 W PWM-output CV LED driver 36 V DC – dimming diagram

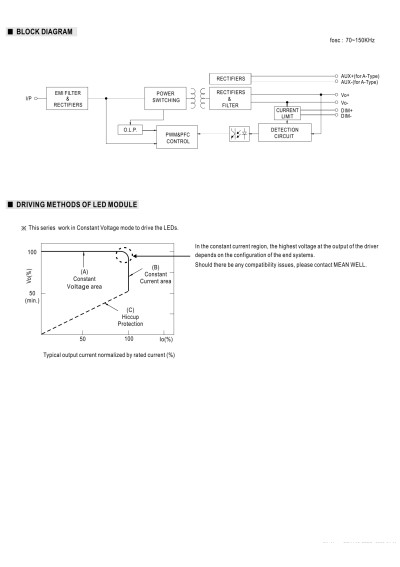

Mean Well ODLV-45A-36 45 W PWM-output CV LED driver 36 V DC – block diagram

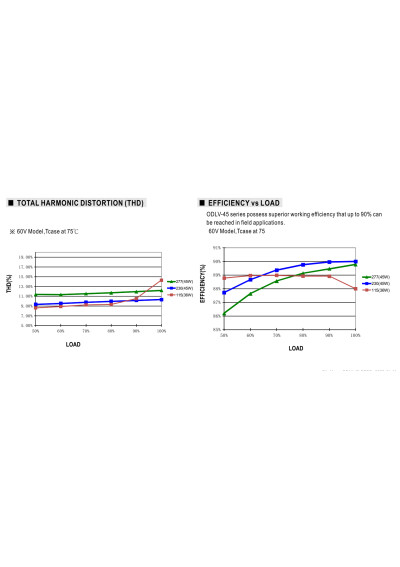

Mean Well ODLV-45A-36 45 W PWM-output CV LED driver 36 V DC – efficiency versus load characteristic

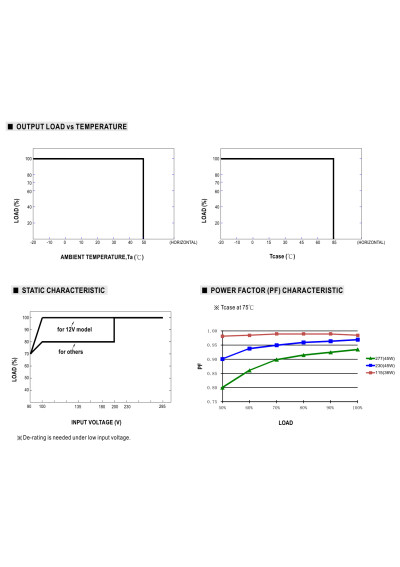

Mean Well ODLV-45A-36 45 W PWM-output CV LED driver 36 V DC – load versus temperature characteristic

Mean Well ODLV-45A-36 45W 36V IP67 LED Power Supply

Minimum order quantity: 1. Order in multiples of 1.
75.60 PLN
Shipment in 1-2 business days
Constant Voltage (CV)
tm_ODLV-45A-36

Mean Well ODLV-45A-36 is a 45 W, 36 V DC constant-voltage LED driver with PWM-modulated output.

Volume discounts

Quantity Discounted price
5+ 72.35 PLN
10+ 69.10 PLN
20+ 64.22 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

ODLV-45A-36 – full product specification

Mean Well ODLV-45A-36 is a ODLV-45-series power supply rated at 45 W. The parameters below come from the exact official manufacturer datasheet.

CV PWM output

The model supplies 36 V DC while brightness is represented by output PWM modulation.

Full technical specifications

Dimensions111 × 77 × 28.5 mm
Document revisionODLV-45-SPEC 2022-04-12
Typical efficiency88 %
Input frequency47–63 Hz
Inrush current30 A
IP ratingIP67
Output modulationPWM
Rated current1250 mA
Operating modeConstant Voltage (CV)
Output voltage36 V
Short-circuit protectionYes
Rated power45 W
Manufacturer warranty3 years
Weight0.42 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_ODLV-45A-36

Data sheet

Power supply type
Constant Voltage (CV)
Rated power [W]
30,1-60
Output Voltage of CV power supply [V]
36
IP grade
67
Length [mm]
111
Width [mm]
77
Height/thickness [mm]
28.5
Warranty [years]
3

Specific References

EAN13
4711287456362
MPN
ODLV-45A-36
