Mean Well IDPV-65A-36 64.8 W PWM-output CV LED driver 36 V DC
Mean Well IDPV-65A-36 64.8 W PWM-output CV LED driver 36 V DC – dimensions

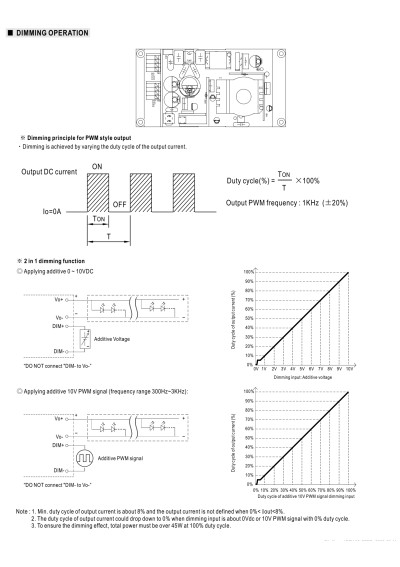

Mean Well IDPV-65A-36 64.8 W PWM-output CV LED driver 36 V DC – dimming diagram

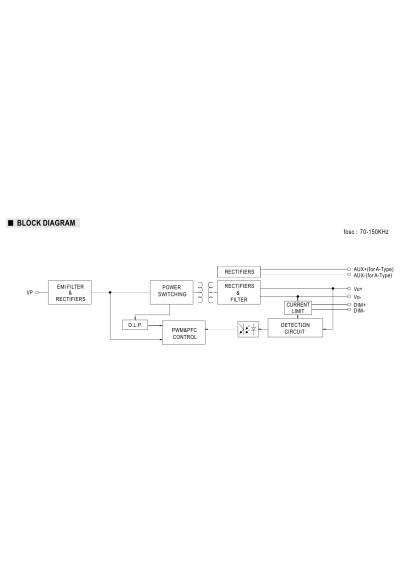

Mean Well IDPV-65A-36 64.8 W PWM-output CV LED driver 36 V DC – block diagram
Mean Well IDPV-65A-36 64.8 W PWM-output CV LED driver 36 V DC – efficiency versus load characteristic

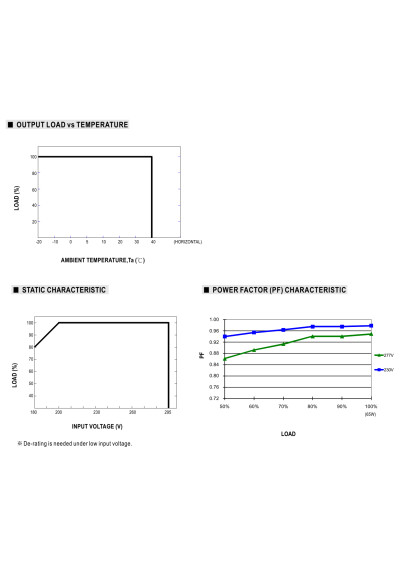

Mean Well IDPV-65A-36 64.8 W PWM-output CV LED driver 36 V DC – load versus temperature characteristic

Mean Well IDPV-65A-36 64.8W 36V LED Power Supply

Minimum order quantity: 1. Order in multiples of 1.
68.28 PLN
Shipment in 1-2 business days
Constant Voltage (CV)
tm_IDPV-65A-36

Mean Well IDPV-65A-36 is a 64.8 W, 36 V DC constant-voltage LED driver with PWM-modulated output.

Volume discounts

Quantity Discounted price
5+ 65.85 PLN
10+ 64.22 PLN
20+ 60.15 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

IDPV-65A-36 – full product specification

Mean Well IDPV-65A-36 is a IDPV-65-series power supply rated at 64.8 W. The parameters below come from the exact official manufacturer datasheet.

CV PWM output

The model supplies 36 V DC while brightness is represented by output PWM modulation.

Full technical specifications

Dimensions130 × 67.5 × 22 mm
Document revisionIDPV-65-SPEC 2022-02-18
Typical efficiency88 %
Input frequency47–63 Hz
Input range180–295 VAC / 254–417 VDC
Inrush current30 A
Output modulationPWM
Rated current1800 mA
Operating modeConstant Voltage (CV)
Output voltage36 V
Short-circuit protectionYes
Rated power64.8 W
Manufacturer warranty3 years
Weight0.15 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_IDPV-65A-36

Data sheet

Power supply type
Constant Voltage (CV)
Rated power [W]
60,1-100
Output Voltage of CV power supply [V]
36
Length [mm]
130
Width [mm]
67.5
Height/thickness [mm]
22
Warranty [years]
3
Input voltage [V]
180-295

Specific References

EAN13
4711287462646
MPN
IDPV-65A-36
