Mean Well NDR-120-48 120W 48V LED Power Supply
Mean Well NDR-120-48 is a 120 W, 48 V DC constant-voltage power supply for mounting on TS-35/7.5 or TS-35/15 DIN rail.
Mean Well NDR-120-48 120W 48V LED Power Supply
Minimum order quantity: 1. Order in multiples of 1.
130.07 PLN
Shipment in 1-2 business days
tm_NDR-120-48
Mean Well NDR-120-48 is a 120 W, 48 V DC constant-voltage power supply for mounting on TS-35/7.5 or TS-35/15 DIN rail.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
NDR-120-48 – full product specification
Mean Well NDR-120-48 is a NDR-120-series power supply rated at 120 W. The parameters below come from the exact official manufacturer datasheet.
Output and mounting
The supply operates in CV mode. Its output can be set across 0 V–0 V, and the enclosure mounts on TS-35/7.5 or TS-35/15 DIN rail.
Full technical specifications
| Cooling | free-air convection |
|---|---|
| Dimensions | 40 × 125.2 × 113.5 mm |
| Document revision | NDR-120-SPEC 2026-04-03 |
| Typical efficiency | 89 % |
| hold_up_time | 230 vac ms: 16; 115 vac ms: 10 |
| Input frequency | 47–63 Hz |
| Input range | 90–264 VAC / 127–370 VDC |
| Mounting | TS-35/7.5 or TS-35/15 DIN rail |
| Operating temperature | -20–70 °C |
| Rated current | 2500 mA |
| Operating mode | Constant Voltage (CV) |
| Output voltage | 48 V |
| Over-voltage protection range | 56–65 V |
| Over-voltage protection | Yes |
| Short-circuit protection | Yes |
| Rated power | 120 W |
| Manufacturer warranty | 3 years |
| Weight | 0.6 kg |
| Withstand voltage | 3 kVAC |

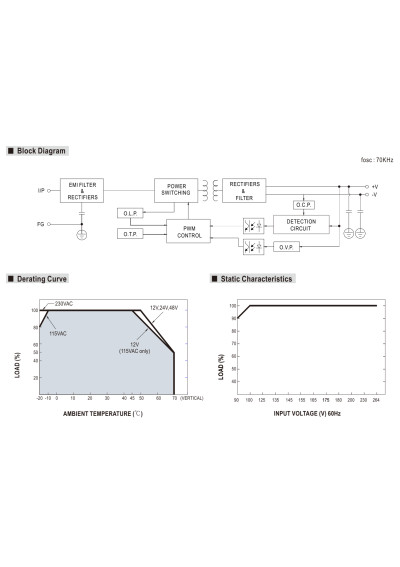

Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
tm_NDR-120-48
Data sheet
- Power supply type
- Constant Voltage (CV)
- Rated power [W]
- 100,1-249
- Output Voltage of CV power supply [V]
- 48
- Length [mm]
- 40
- Width [mm]
- 125.2
- Height/thickness [mm]
- 113.5
- Warranty [years]
- 3
- Input voltage [V]
- 90-264
Specific References
- EAN13
- 4711287422275
- MPN
- NDR-120-48
