Mean Well LPV-20-15 20 W 15 V DC CV LED power supply
Mean Well LPV-20-15 20 W 15 V DC CV LED power supply – block diagram

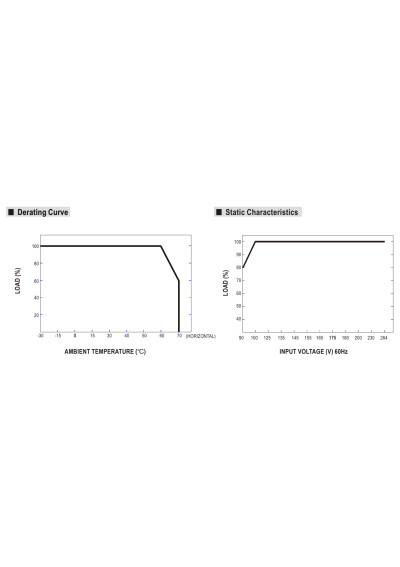

Mean Well LPV-20-15 20 W 15 V DC CV LED power supply – derating characteristic

Mean Well LPV-20-15 20W 15V IP67 LED Power Supply

Minimum order quantity: 1. Order in multiples of 1.
40.64 PLN
Shipment in 1-2 business days
Constant Voltage (CV)
tm_LPV-20-15

Mean Well LPV-20-15 is a 20 W, 15 V DC constant-voltage LED power supply rated at 1330 mA.

Volume discounts

Quantity Discounted price
5+ 39.02 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

LPV-20-15 – full product specification

Mean Well LPV-20-15 is a LPV-20-series power supply rated at 20 W. The parameters below come from the exact official manufacturer datasheet.

Constant-voltage output

The model supplies loads at 15 V DC with a rated output current of 1330 mA.

Full technical specifications

Fully isolated enclosureYes
Enclosure materialplastic
Coolingfree-air convection
Dimensions118 × 35 × 26 mm
Document revisionLPV-20-SPEC 2025-12-12
Typical efficiency83 %
hold_up_time230 vac ms: 50; 115 vac ms: 16
Input frequency47–63 Hz
Input range90–264 VAC / 127–370 VDC
Inrush current70 A
Insulation resistance100 MΩ
IP ratingIP67
Leakage current0.25 mA
Operating temperature-30–70 °C
Rated current1330 mA
Operating modeConstant Voltage (CV)
Output voltage15 V
Over-voltage protection range17.5–21 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power20 W
Manufacturer warranty2 years
Weight0.2 kg
Withstand voltage3 kVAC

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

Manufacturer information: Mean Well states that the LPV-20 series is not intended for LED lighting luminaire applications in the EU and China; the manufacturer recommends the LPF, NPF, XLG, XLC or XLN series.

tm_LPV-20-15

Data sheet

Power supply type
Constant Voltage (CV)
Rated power [W]
15,1-20
Output Voltage of CV power supply [V]
15
IP grade
67
Length [mm]
118
Width [mm]
35
Height/thickness [mm]
26
Warranty [years]
2
Input voltage [V]
90-264

Specific References

EAN13
4711287440903
MPN
LPV-20-15
