LED Power Supply | Philips Xitanium 90W 0.25-0.7A 220-240V LED Driver

Name: LED Power Supply | Philips Xitanium 90W 0.25-0.7A 220-240V LED Driver
Brand: Philips
SKU: zas_philips_929001694606
Price: 219.99 PLN
Availability: InStock

219.99 PLN

Shipment in 1-2 business days

Category: Constant Current (CC)

Reference: zas_philips_929001694606

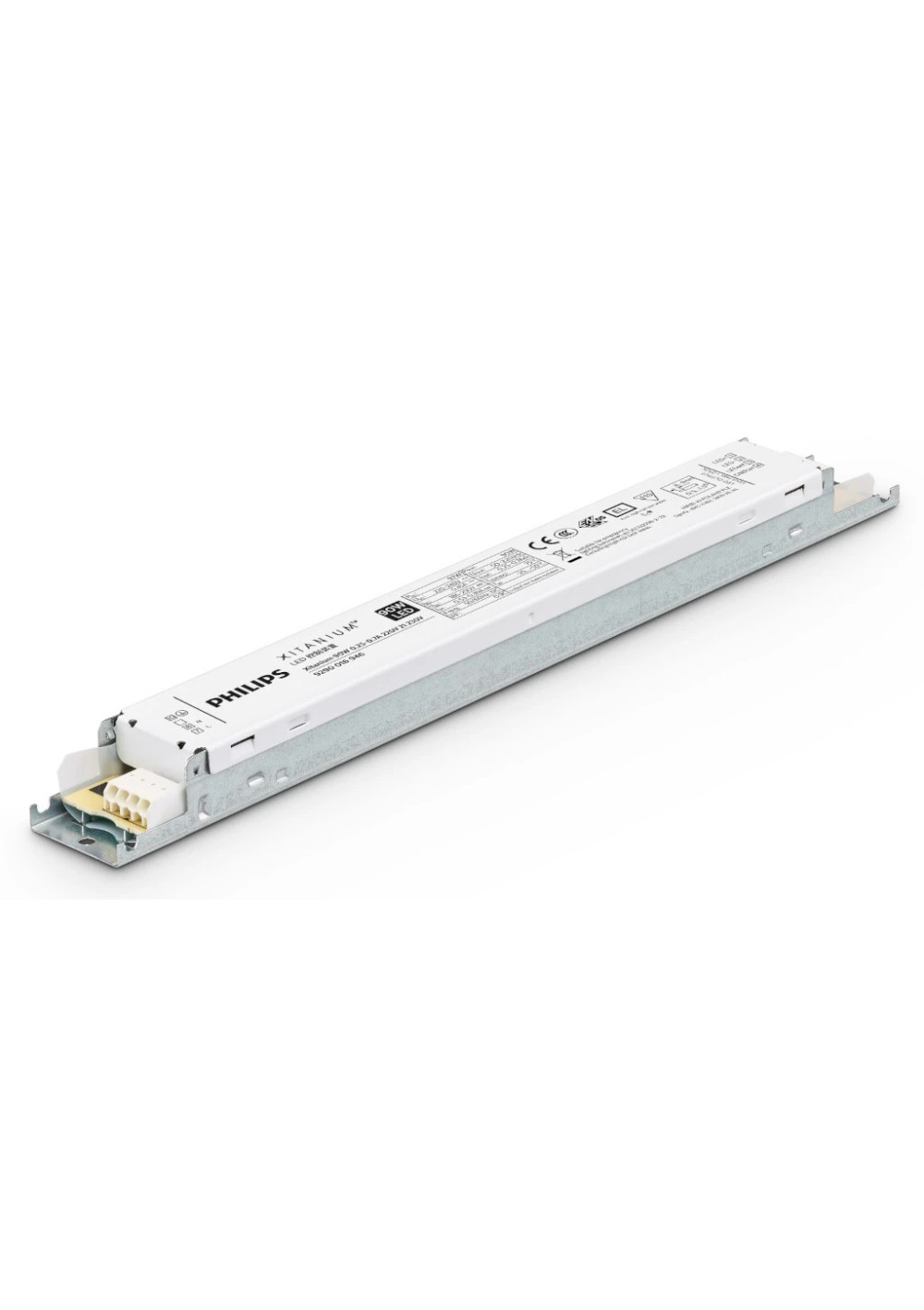

The Philips Xitanium 90W 0.25–0.7A is a non-isolated LED driver offering high efficiency and low ripple. Current adjustable via LEDset, suited for commercial and industrial luminaires. IP20, built-in mounting.

Delivery

1-3 dni (PL), 3-10 dni (non-PL)

Return Policy

14 days

Description
Product Details

Technical specification

Model	Xitanium 90W 0.25-0.7A 220-240V
Output power	25–90 W
Output current	0.25–0.7 A, adjustable via LEDset
Input voltage	220–240 VAC (186–250 Vdc)
Efficiency	up to 93%
Power factor	~0.98 @ max
Output ripple	<5% (peak/avg, <3kHz)
Max output voltage	250 Vdc
Protections	open load, short circuit, over power - auto recover
Operating temp	per Tc specifications; Tcase-life 50k/100k hrs
Dimensions	280 x 30 x 21 mm
Weight	215 g
IP rating	IP20
Certifications	CCC, CE, EAC, EL, ENEC, RCM, UA, UKCA
Codes	12NC 9290 016 94606 / EAN 8719514253957

Xitanium 90W - Applications

The Xitanium 90W driver is developed for professional linear luminaires and commercial lighting where lumen stability, low flicker and long lifetime matter. Wide operating windows and simple LEDset current adjustment make it ideal for offices, retail spaces and industrial fixtures that require reliable performance and predictable light output.

LED driver 0.25-0.7A - Features

This non-isolated driver delivers high efficiency up to 93% and low output ripple, improving light quality and compatibility with LED modules. Built-in protections for open load, short circuit and over-power conditions ensure safe operation with automatic recovery. The product supports hot-wiring and is suitable for Class I fixtures per IEC60598.

LED driver 0.25-0.7A - Design & Integration

Compact dimensions and good thermal performance simplify luminaire design and integration. Maximum one-way cable length to the LED module is 1.2 m; for longer runs, designers should verify EMI performance. Pay attention to the Tc-point recommendations to achieve rated lifetime and ensure proper thermal management in the fixture.

In summary, the Philips Xitanium 90W 0.25-0.7A is a reliable, efficient and flexible LED driver that supports high-quality light output and ease of integration. LEDset current adjustment allows straightforward tuning to the chosen LED module, making it a future-proof choice for professional lighting projects.
