Mean Well NPF-90D-15 90 W CV+CC LED driver
Mean Well NPF-90D-15 is a 90 W CV+CC LED driver with a 9 V–15 V constant-current region.
Mean Well NPF-90D-15 90 W CV+CC LED driver
Minimum order quantity: 1. Order in multiples of 1.
178.85 PLN
Shipment in 8-10 working days
tm_NPF-90D-15
Mean Well NPF-90D-15 is a 90 W CV+CC LED driver with a 9 V–15 V constant-current region.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
NPF-90D-15 – full product specification
Mean Well NPF-90D-15 is a NPF-90-series power supply rated at 90 W. The parameters below come from the exact official manufacturer datasheet.

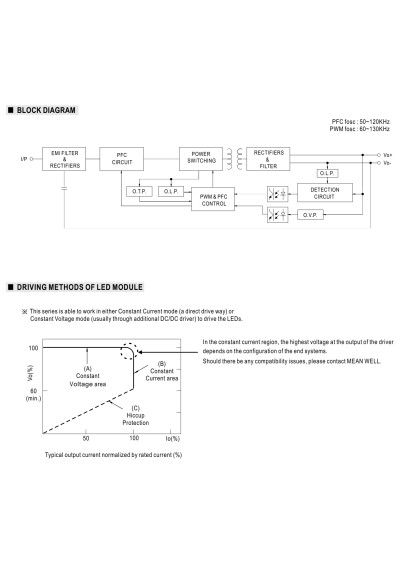

CV+CC operation
The driver combines voltage regulation and current limiting; its constant-current region is 9 V–15 V DC.
Full technical specifications
| Dimensions | 171 × 63 × 37.5 mm |
|---|---|
| Document revision | NPF-90-SPEC 2026-02-09 |

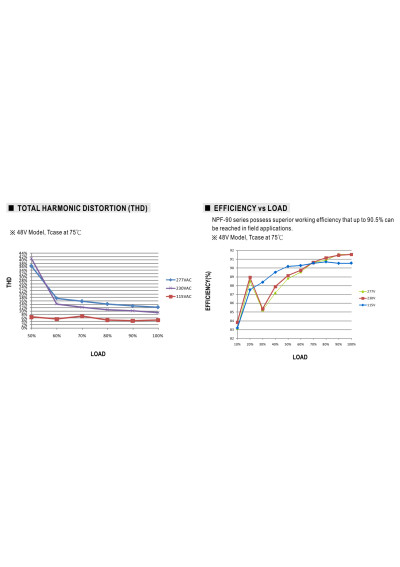

| Typical efficiency | 89.5 % |
| hold_up_time | 230 vac ms: 16; 115 vac ms: 16 |
| Input frequency | 47–63 Hz |
| Input range | 90–305 VAC / 127–431 VDC |
| Inrush current | 60 A |
| IP rating | IP67 |
| Rated current | 6000 mA |
| Operating mode | Constant voltage + constant current (CV+CC) |
| CC-region maximum voltage | 15 V |
| CC-region minimum voltage | 9 V |
| Output voltage | 15 V |
| Over-voltage protection range | 17.5–21 V |
| Over-voltage protection | Yes |
| Short-circuit protection | Yes |
| Rated power | 90 W |
| Manufacturer warranty | 5 years |
| Weight | 0.77 kg |
Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
tm_NPF-90D-15
Data sheet
- Power supply type
- CV+CC
- Rated power [W]
- 60,1-100
- Output Current of CC power supply [mA]
- 6000
- CC operating window
- 9-15
- Min. output voltage of led driver (CC)
- 9
- Max. output voltage of led driver (CC)
- 15
- IP grade
- 67
- Length [mm]
- 171
- Width [mm]
- 63
- Height/thickness [mm]
- 37.5
- Warranty [years]
- 5
- Input voltage [V]
- 90-305
Specific References
- EAN13
- 4711287459660
- MPN
- NPF-90D-15
