Mean Well ELG-150-C1400AB 149.8 W CC LED driver 1400 mA Mean Well ELG-150-C1400AB 149.8 W CC LED driver 1400 mA – dimensions Mean Well ELG-150-C1400AB 149.8 W CC LED driver 1400 mA – block diagram Mean Well ELG-150-C1400AB 149.8 W CC LED driver 1400 mA – dimming diagram Mean Well ELG-150-C1400AB 149.8 W CC LED driver 1400 mA – efficiency versus load characteristic
Mean Well ELG-150-C1400AB 149.8 W CC LED driver 1400 mA
Mean Well ELG-150-C1400AB 149.8 W CC LED driver 1400 mA – dimensions

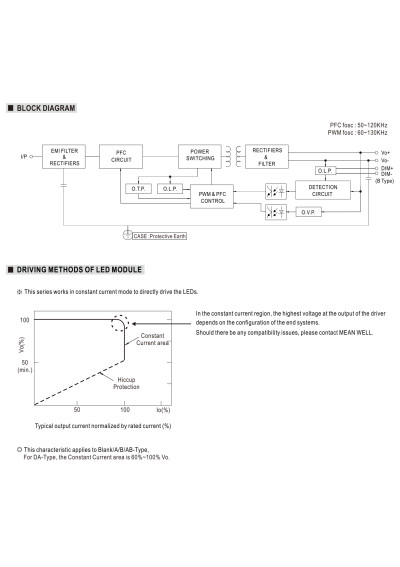

Mean Well ELG-150-C1400AB 149.8 W CC LED driver 1400 mA – block diagram

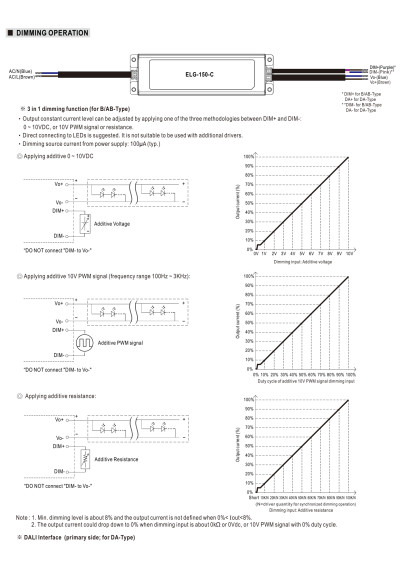

Mean Well ELG-150-C1400AB 149.8 W CC LED driver 1400 mA – dimming diagram

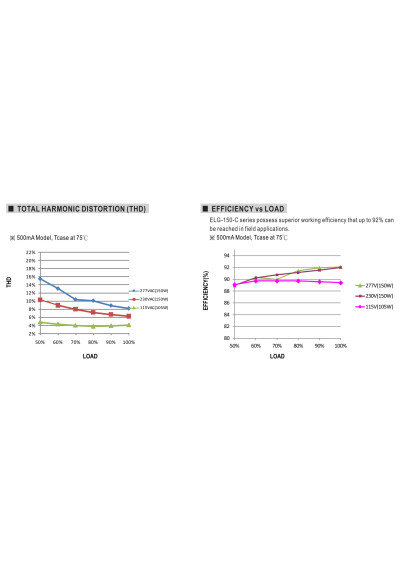

Mean Well ELG-150-C1400AB 149.8 W CC LED driver 1400 mA – efficiency versus load characteristic

Mean Well ELG-150-C1400AB 149.8W 1400mA 54–107V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
203.24 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_ELG-150-C1400AB

Mean Well ELG-150-C1400AB is a 149.8 W constant-current LED driver rated at 1400 mA, with a 54 V–107 V output-voltage region.

Volume discounts

Quantity Discounted price
5+ 186.98 PLN
10+ 178.85 PLN
20+ 170.72 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

ELG-150-C1400AB – full product specification

Mean Well ELG-150-C1400AB is a ELG-150-C-series power supply rated at 149.8 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 1400 mA across a 54 V–107 V DC voltage region.

Full technical specifications

DALI controlYes
3-in-1 dimmingYes
current_ripple_pct5 %
Dimensions219 × 63 × 35.5 mm
Document revisionELG-150-C-SPEC 2026-07-06
Typical efficiency91 %
Input frequency47–63 Hz
Input range100–305 VAC / 142–431 VDC
Inrush current65 A
IP ratingIP67
Rated current1400 mA
Operating modeConstant Current (CC)
CC-region maximum voltage107 V
CC-region minimum voltage54 V
Over-voltage protection range128–150 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power149.8 W
Manufacturer warranty5 years
Weight0.95 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_ELG-150-C1400AB

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
100,1-249
Output Current of CC power supply [mA]
1400
CC operating window
54-107
Min. output voltage of led driver (CC)
54
Max. output voltage of led driver (CC)
107
IP grade
67
Length [mm]
219
Width [mm]
63
Height/thickness [mm]
35.5
Warranty [years]
5
Input voltage [V]
100-305

Specific References

EAN13
4711287444833
MPN
ELG-150-C1400AB
New
