Mean Well HLG-600H-12 480 W CV+CC LED driver
Mean Well HLG-600H-12 is a 480 W CV+CC LED driver with a 6 V–12 V constant-current region.
Mean Well HLG-600H-12 480 W CV+CC LED driver
Minimum order quantity: 1. Order in multiples of 1.
975.60 PLN
Shipment in 1-2 business days
tm_HLG-600H-12
Mean Well HLG-600H-12 is a 480 W CV+CC LED driver with a 6 V–12 V constant-current region.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
HLG-600H-12 – full product specification
Mean Well HLG-600H-12 is a HLG-600H-series power supply rated at 480 W. The parameters below come from the exact official manufacturer datasheet.
CV+CC operation
The driver combines voltage regulation and current limiting; its constant-current region is 6 V–12 V DC.
Full technical specifications

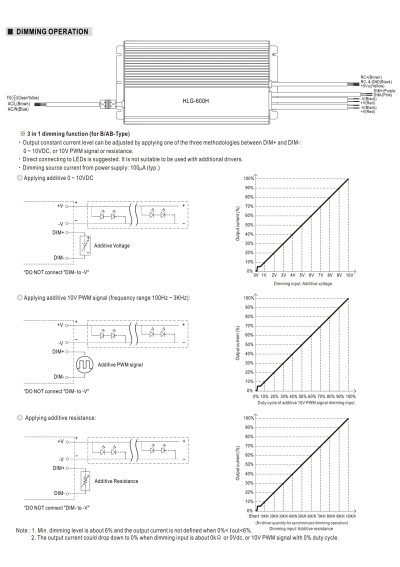

| 3-in-1 dimming | Yes |
|---|---|
| Dimensions | 280 × 144 × 48.5 mm |
| Document revision | HLG-600H-SPEC 2026-07-24 |
| Input frequency | 47–63 Hz |
| Input range | 90–305 VAC / 127–431 VDC |
| Inrush current | 70 A |
| IP rating | IP65 |
| Rated current | 40000 mA |
| Operating mode | Constant voltage + constant current (CV+CC) |
| CC-region maximum voltage | 12 V |
| CC-region minimum voltage | 6 V |
| Output voltage | 12 V |
| Over-voltage protection range | 13–16 V |
| Over-voltage protection | Yes |
| Short-circuit protection | Yes |
| Rated power | 480 W |
| Manufacturer warranty | 7 years |
| Weight | 3.9 kg |
Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
tm_HLG-600H-12
Data sheet
- Power supply type
- CV+CC
- Rated power [W]
- 250-499
- Output Current of CC power supply [mA]
- 40000
- CC operating window
- 6-12
- Min. output voltage of led driver (CC)
- 6
- Max. output voltage of led driver (CC)
- 12
- IP grade
- 65
- Length [mm]
- 280
- Width [mm]
- 144
- Height/thickness [mm]
- 48.5
- Warranty [years]
- 7
- Input voltage [V]
- 90-305
Specific References
- EAN13
- 4711287451657
- MPN
- HLG-600H-12
