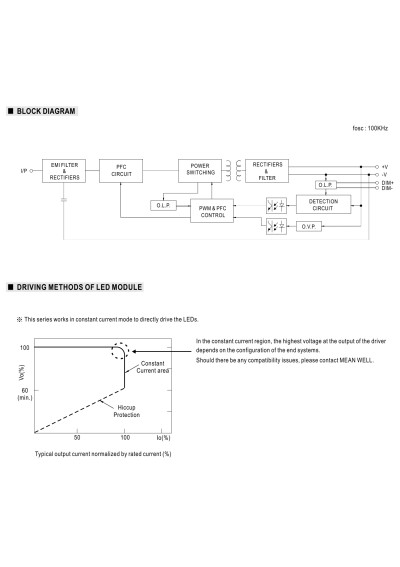

Mean Well LPF-25D-12 25.2 W CV+CC LED driver – block diagram

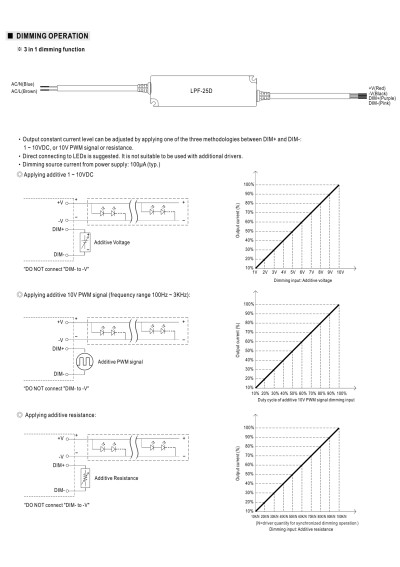

Mean Well LPF-25D-12 25.2 W CV+CC LED driver – dimming diagram

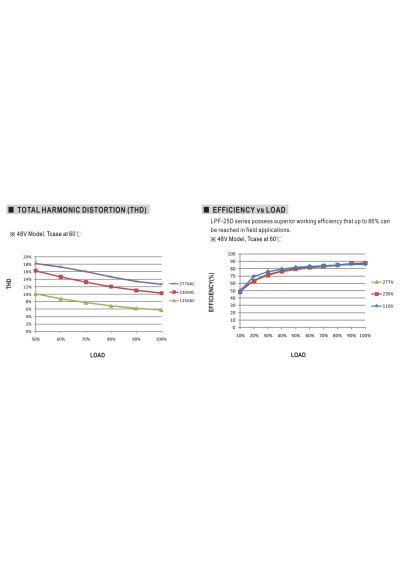

Mean Well LPF-25D-12 25.2 W CV+CC LED driver – efficiency versus load characteristic

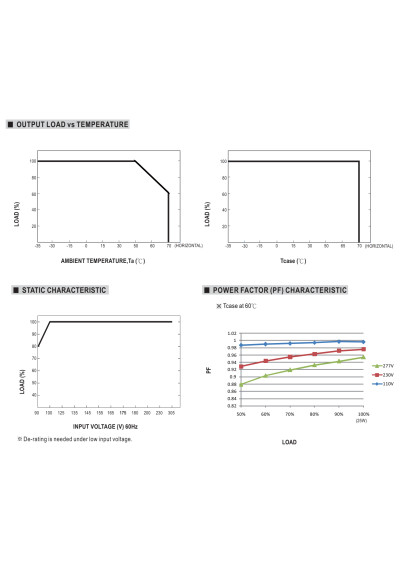

Mean Well LPF-25D-12 25.2 W CV+CC LED driver – load versus temperature characteristic

Mean Well LPF-25D-12 25.2 W CV+CC LED driver

Minimum order quantity: 1. Order in multiples of 1.
113.81 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_LPF-25D-12

Mean Well LPF-25D-12 is a 25.2 W CV+CC LED driver with a 6.6 V–12 V constant-current region.

Volume discounts

Quantity Discounted price
5+ 105.68 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

LPF-25D-12 – full product specification

Mean Well LPF-25D-12 is a LPF-25D-series power supply rated at 25.2 W. The parameters below come from the exact official manufacturer datasheet.

CV+CC operation

The driver combines voltage regulation and current limiting; its constant-current region is 6.6 V–12 V DC.

Full technical specifications

3-in-1 dimmingYes
current_ripple_pct5 %
Dimensions148 × 40 × 32 mm
Document revisionLPF-25D-SPEC 2026-02-09
Typical efficiency84 %
hold_up_time230 vac ms: 16; 115 vac ms: 16
Input frequency47–63 Hz
Input range90–305 VAC / 127–431 VDC
Inrush current50 A
IP ratingIP67
Rated current2100 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage12 V
CC-region minimum voltage6.6 V
Output voltage12 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power25.2 W
Manufacturer warranty5 years
Weight0.36 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_LPF-25D-12

Data sheet

Power supply type
CV+CC
Rated power [W]
20,1-30
Output Current of CC power supply [mA]
2100
CC operating window
6.6-12
Min. output voltage of led driver (CC)
6.6
Max. output voltage of led driver (CC)
12
IP grade
67
Length [mm]
148
Width [mm]
40
Height/thickness [mm]
32
Warranty [years]
5
Input voltage [V]
90-305

Specific References

EAN13
4711287458700
MPN
LPF-25D-12
