Mean Well NPF-120D-48 120 W CV+CC LED driver
Mean Well NPF-120D-48 120 W CV+CC LED driver – dimensions

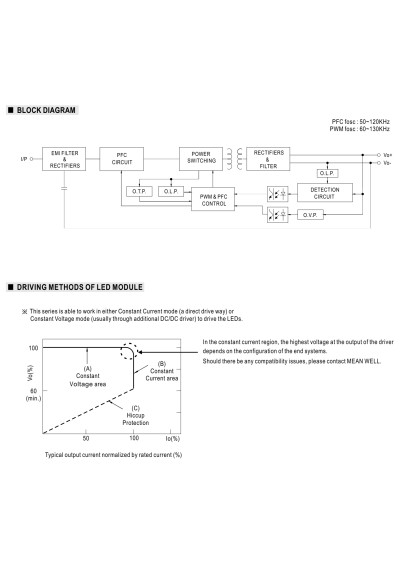

Mean Well NPF-120D-48 120 W CV+CC LED driver – block diagram

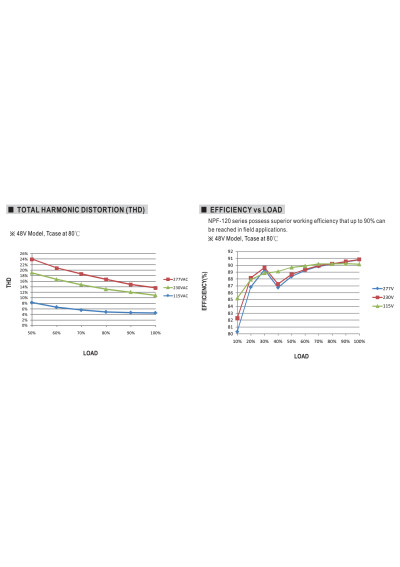

Mean Well NPF-120D-48 120 W CV+CC LED driver – efficiency versus load characteristic

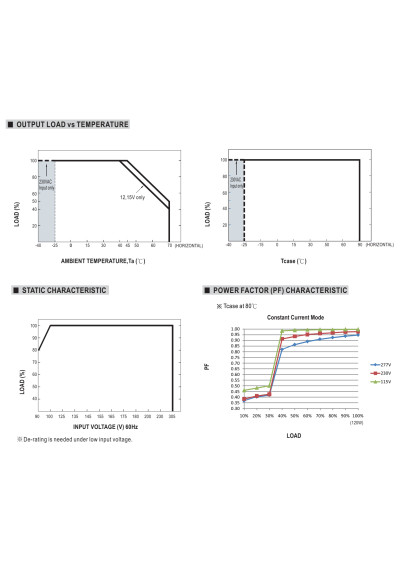

Mean Well NPF-120D-48 120 W CV+CC LED driver – load versus temperature characteristic

Mean Well NPF-120D-48 120 W CV+CC LED driver

Minimum order quantity: 1. Order in multiples of 1.
211.37 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_NPF-120D-48

Mean Well NPF-120D-48 is a 120 W CV+CC LED driver with a 28.8 V–48 V constant-current region.

Volume discounts

Quantity Discounted price
5+ 203.24 PLN
10+ 186.98 PLN
20+ 178.85 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

NPF-120D-48 – full product specification

Mean Well NPF-120D-48 is a NPF-120-series power supply rated at 120 W. The parameters below come from the exact official manufacturer datasheet.

CV+CC operation

The driver combines voltage regulation and current limiting; its constant-current region is 28.8 V–48 V DC.

Full technical specifications

Dimensions191 × 63 × 37.5 mm
Document revisionNPF-120-SPEC 2026-02-09
Typical efficiency90 %
hold_up_time230 vac ms: 16; 115 vac ms: 16
Input frequency47–63 Hz
Input range90–305 VAC / 127–431 VDC
Inrush current60 A
IP ratingIP67
Rated current2500 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage48 V
CC-region minimum voltage28.8 V
Output voltage48 V
Over-voltage protection range54–60 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power120 W
Manufacturer warranty5 years
Weight0.97 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_NPF-120D-48

Data sheet

Power supply type
CV+CC
Rated power [W]
100,1-249
Output Current of CC power supply [mA]
2500
CC operating window
28.8-48
Min. output voltage of led driver (CC)
28.8
Max. output voltage of led driver (CC)
48
IP grade
67
Length [mm]
191
Width [mm]
63
Height/thickness [mm]
37.5
Warranty [years]
5
Input voltage [V]
90-305

Specific References

EAN13
4711287459813
MPN
NPF-120D-48
