Mean Well PCD-60-500B 54 W 500 mA 70–108 V DC CC LED driver IP42
Mean Well PCD-60-500B 54 W 500 mA 70–108 V DC CC LED driver IP42 – dimensions

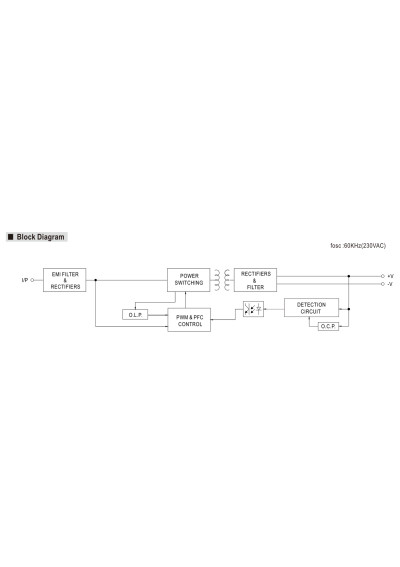

Mean Well PCD-60-500B 54 W 500 mA 70–108 V DC CC LED driver IP42 – block diagram

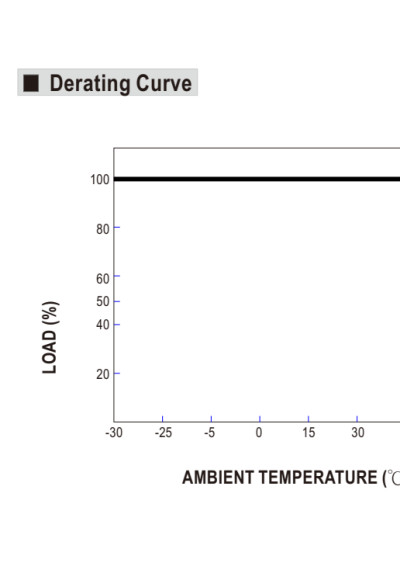

Mean Well PCD-60-500B 54 W 500 mA 70–108 V DC CC LED driver IP42 – derating characteristic

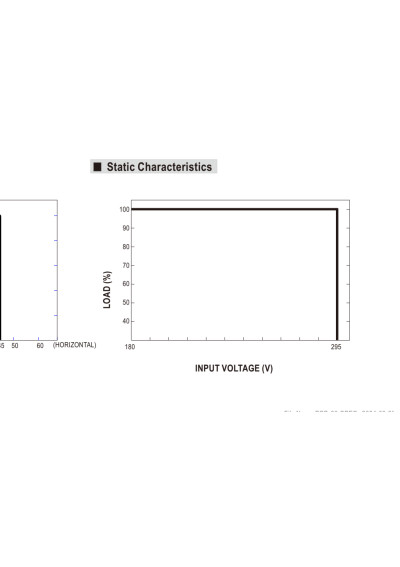

Mean Well PCD-60-500B 54 W 500 mA 70–108 V DC CC LED driver IP42 – static characteristic

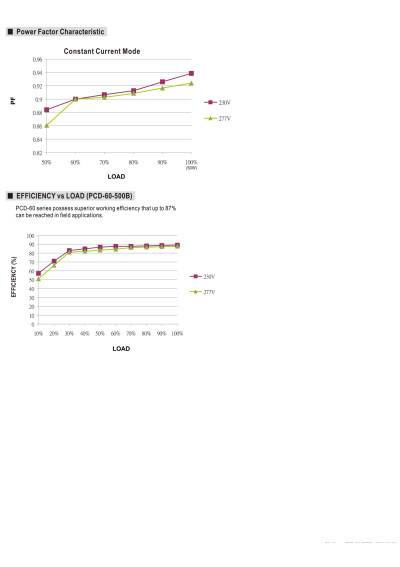

Mean Well PCD-60-500B 54 W 500 mA 70–108 V DC CC LED driver IP42 – power factor characteristic

Mean Well PCD-60-500B 54W 500mA 70–108V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
105.68 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_PCD-60-500B

Mean Well PCD-60-500B is a 54 W constant-current LED driver rated at 500 mA, with a 70–108 V DC output voltage range. IP rating IP42.

Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

PCD-60-500B – full product specification

Mean Well PCD-60-500B is an LED power supply from the PCD-60 series with a 54 W rated output. The verified manufacturer datasheet data below supports correct circuit and operating-condition selection.

Selection and output

Select this driver for an LED circuit rated at 500 mA. The required operating voltage of the complete powered circuit must remain within 70–108 V DC, while the connected load must also remain within the rated output power.

Input and efficiency

The input frequency range is 47–63 Hz. Manufacturer-specified typical efficiency is 87 %.

Full technical specifications

ManufacturerMean Well
SeriesPCD-60
ModelPCD-60-500B
Operating modeConstant Current (CC)
Rated power54 W
Output current500 mA
Output voltage range70–108 V DC
Input frequency47–63 Hz
Typical efficiency87 %
Current accuracy5 %
Inrush current13 A
Short-circuit protectionYes
Fully isolated enclosureYes
Enclosure materialplastic
Coolingfree-air convection
IP ratingIP42
Operating temperature-30–45 °C
Dimensions (L × W × H)128 × 60 × 31.5 mm
Technical weight0.35 kg
Manufacturer warranty3 years

Protection and construction

  • Short-circuit protection: Yes
  • Fully isolated enclosure: Yes
  • Enclosure material: plastic
  • Cooling: free-air convection
  • IP rating: IP42

Operating conditions and mechanical data

Operating temperature: -30–45 °C; Dimensions (L × W × H): 128 × 60 × 31.5 mm; Technical weight: 0.35 kg; Manufacturer warranty: 3 years.

Manufacturer datasheet

The complete source specification is available directly from the manufacturer: Official Mean Well datasheet — PCD-60-SPEC 2024-09-25.

tm_PCD-60-500B

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
30,1-60
Output Current of CC power supply [mA]
500
CC operating window
70-108
Min. output voltage of led driver (CC)
70
Max. output voltage of led driver (CC)
108
Dimming / Control
Phase dimmer
Dimensions (L x W x H) [mm]
IP grade
42
Case type of power supply
Isolated / secured
Case material
Plastic
Length [mm]
128
Width [mm]
60
Height/thickness [mm]
31.5
Warranty [years]
3
Input voltage [V]
185-230
Interface
Integrated input and output cable
Working temperature
- 30°C + 60°C

Specific References

MPN
PCD-60-500B
