Mean Well HVGC-1000A-L-AB 1003.2 W CC LED driver 2800 mA

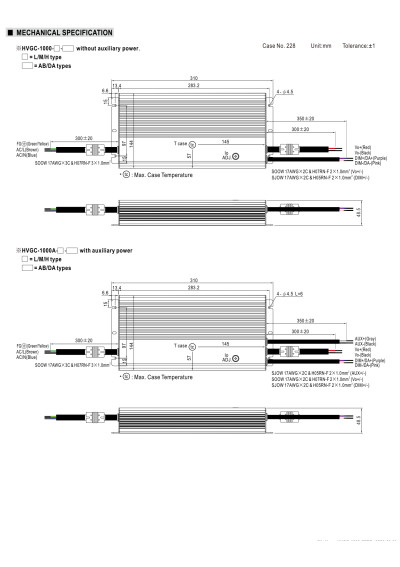

Mean Well HVGC-1000A-L-AB 1003.2 W CC LED driver 2800 mA – dimensions

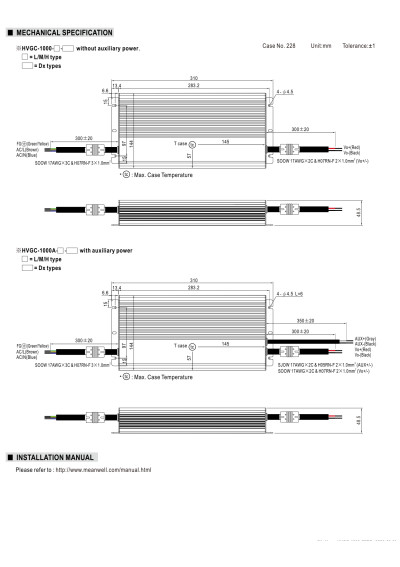

Mean Well HVGC-1000A-L-AB 1003.2 W CC LED driver 2800 mA – dimensions
Mean Well HVGC-1000A-L-AB 1003.2 W CC LED driver 2800 mA – dimensions
Mean Well HVGC-1000A-L-AB 1003.2 W CC LED driver 2800 mA – dimensions

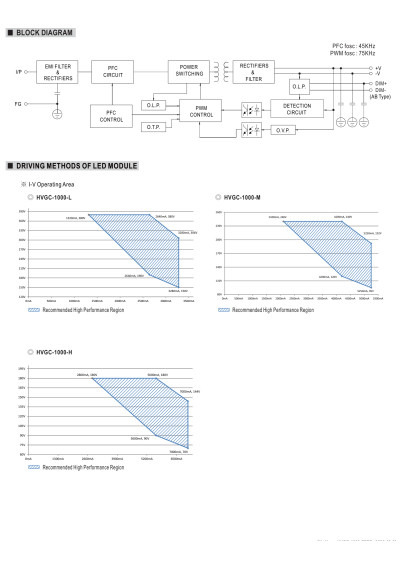

Mean Well HVGC-1000A-L-AB 1003.2 W CC LED driver 2800 mA – block diagram

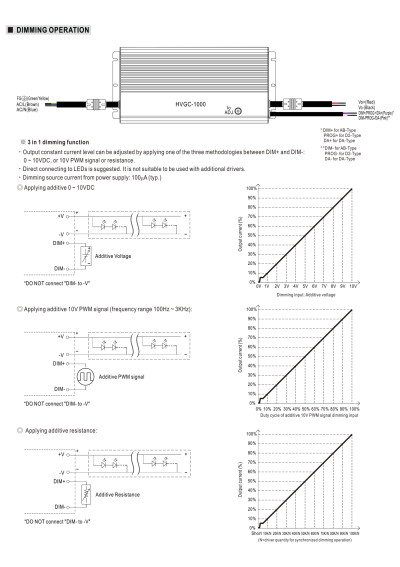

Mean Well HVGC-1000A-L-AB 1003.2 W CC LED driver 2800 mA – dimming diagram

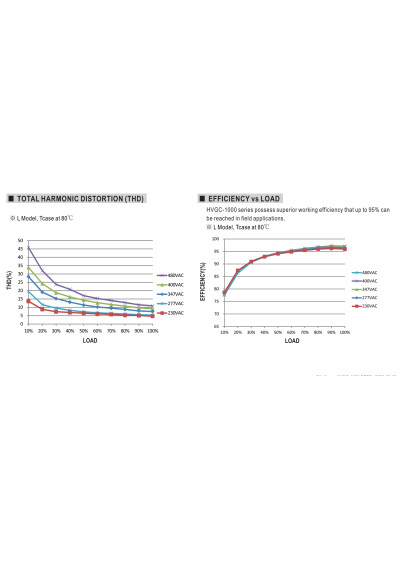

Mean Well HVGC-1000A-L-AB 1003.2 W CC LED driver 2800 mA – efficiency versus load characteristic

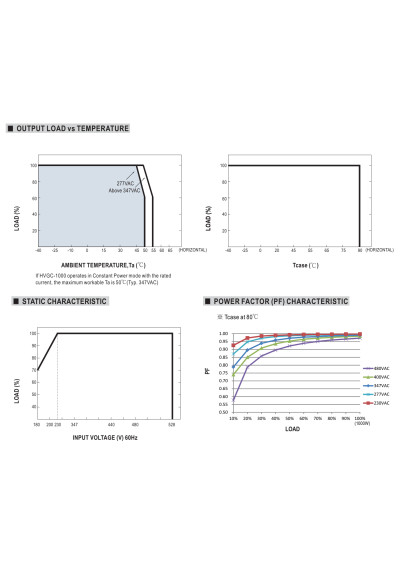

Mean Well HVGC-1000A-L-AB 1003.2 W CC LED driver 2800 mA – load versus temperature characteristic

Mean Well HVGC-1000A-L-AB 1003.2W 2800mA 150–380V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
1,707.31 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_HVGC-1000A-L-AB

Mean Well HVGC-1000A-L-AB is a 1003.2 W constant-current LED driver rated at 2800 mA, with a 150 V–380 V output-voltage region.

Volume discounts

Quantity Discounted price
5+ 1,626.01 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HVGC-1000A-L-AB – full product specification

Mean Well HVGC-1000A-L-AB is a HVGC-1000-series power supply rated at 1003.2 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 2800 mA across a 150 V–380 V DC voltage region.

Full technical specifications

DALI controlYes
3-in-1 dimmingYes
current_ripple_pct3 %
Dimensions310 × 144 × 48.5 mm
Document revisionHVGC-1000-SPEC 2026-02-09
Typical efficiency95.5 %
Input frequency47–63 Hz
IP ratingIP67
Rated current2800 mA
Operating modeConstant Current (CC)
CC-region maximum voltage380 V
CC-region minimum voltage150 V
Over-voltage protection range400–425 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power1003.2 W
Manufacturer warranty5 years
Weight4.4 kg
Withstand voltage3 kVAC

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HVGC-1000A-L-AB

Data sheet

Power supply type
Constant Current (CC)
Output Current of CC power supply [mA]
2800
CC operating window
150-380
Min. output voltage of led driver (CC)
150
Max. output voltage of led driver (CC)
380
IP grade
67
Length [mm]
310
Width [mm]
144
Height/thickness [mm]
48.5
Warranty [years]
5

Specific References

EAN13
4711287455068
MPN
HVGC-1000A-L-AB
