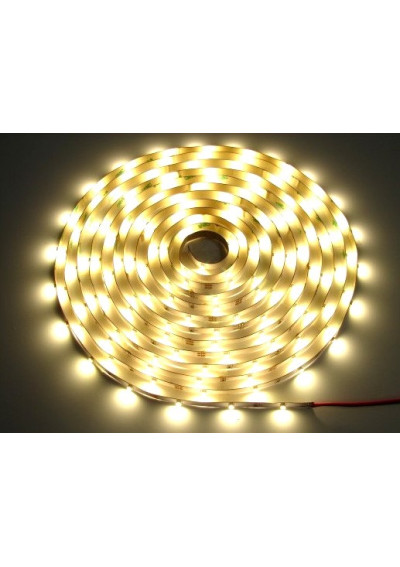

LED strip SMD 12V 4.8W/m warm white 60LED/m IP65 5m Premium

LED Strip - Construction

The strip uses SMD technology with LEDs in a 3528 package. The underside has factory-applied double-sided adhesive tape to aid installation on a suitably prepared surface.

Control of LED strip

The strip can be powered directly from a suitable 12V power supply. An optional PWM controller enables brightness adjustment.

Important information

The stated power is a rated or theoretical value based on the parameters of the components used. Actual power consumption may be lower due to component tolerances, voltage drop and operating conditions.

Power and installation

The strip does not require an additional power-injection point when its length does not exceed 5m. Above this length, consider starting the next separately powered run, supplying the run at its far end, or adding another power point after the indicated length.

The 5m value is based on the electrical properties of the strip PCB. It indicates the length at which supply-voltage drop should not cause a noticeable reduction in LED brightness along the length of strip. Above this length, a brightness difference may become visible. If it remains acceptable to the end customer, the final power-feed arrangement is the responsibility of the installation designer or user.

Light emitted by LED strip

The presented white LED strip is a single-channel light source with a color temperature of 3000K. All LEDs emit the same color and are controlled simultaneously, providing uniform and stable illumination.

In most white LEDs, light is produced through a phosphor-conversion process. A blue semiconductor chip emits short-wavelength radiation, part of which is converted by a phosphor layer into longer-wavelength visible light. The combination of the original blue light and the radiation emitted by the phosphor creates a broad spectrum perceived by the human eye as white light.

The composition and proportions of the phosphor materials make it possible to control the color temperature, tint, luminous efficacy, and color rendering quality with high precision. In high-quality LEDs, a properly engineered spectrum can faithfully reproduce the natural appearance of illuminated objects and colors, bringing the character of the emitted light close to daylight or traditional incandescent lighting. Particularly important factors include a high color rendering index, the correct balance of spectral components, and strict LED binning for color consistency. As a result, in typical applications, the light produced by a high-quality LED strip can be visually very difficult to distinguish from that of natural or traditional light sources.

During operation, an LED ages gradually rather than failing suddenly through a conventional “burnout.” The most commonly observed process is a slow reduction in luminous flux over time. High operating temperatures can accelerate degradation of the semiconductor structure, phosphor, package materials, and electrical connections. Over time, the phosphor may lose some of its conversion efficiency, while optical materials may become discolored, leading to a slight shift in color temperature or chromaticity coordinates.

In high-quality LED strips, this aging process is slow, uniform, and predictable. Proper thermal management, stable power supply, and installation in a suitable aluminum profile reduce the operating temperature, helping to preserve the original brightness and light color for many years.

For static operation, the strip does not require a controller — a correctly selected power supply is sufficient. Brightness adjustment requires a compatible single-channel LED dimmer or controller, most commonly using PWM modulation.

LED strip - product overview

The strip operates at 12V and has a density of 60LED/m with an IP65 ingress-protection rating.

Sales unit of led strip

The sales unit includes a factory-prepared reel of LED strip with a length of 5m.

LED strip - power supply selection

The strip requires a power supply with an output voltage of 12V. Guidance: select a power supply with an optimum 30% power reserve above the LED strip demand.

Premium warm white LED strip IP65 for reliable accent lighting

Choose a premium warm white LED strip IP65 when you want a cozy glow and dependable performance. This 300‑LED strip uses SMD 3528 diodes. They deliver stable warm white color and balanced power use. The IP65 silicone coating helps protect against dust and water splashes. It works well in kitchens, bathrooms, and covered outdoor areas. The strip is also a great match for aluminum profiles. Profiles improve cooling and keep the line of light neat.

Where a premium warm white LED strip IP65 works best

This strip is designed for universal projects. Use it for subtle accents or functional backlighting. The warm tone makes interiors feel calm and inviting.

• Under-cabinet kitchen lighting and worktops
• Shelves, niches, and display lighting
• Ceiling coves and architectural accents
• Advertising, signage, and showcases
• Aluminum profiles for clean, even lines

Warm white LED tape for kitchen and bathroom

The warm white LED tape for kitchen and bathroom projects benefits from IP65 protection. Remember to seal connections well in humid zones. Use proper connectors or soldered joints. Add heat‑shrink and silicone where needed.

Power supply selection for premium warm white LED strip IP65

Select a constant‑voltage LED power supply matched to your strip voltage. Calculate total wattage for your planned length. Add a 20–30% power margin for stable work. Look for protections such as OVP, OCP, SCP, and OTP. Models with active PFC can improve efficiency and operation culture.

For long runs, avoid voltage drop with power injection. Feed power about every 5 m for 12V systems. Feed about every 10 m for 24 V systems. Use a star wiring layout when possible. Choose cable cross‑sections suited to current and distance.

Installation and cutting

The strip can be cut only at marked cut points. Mount it on a clean, degreased surface. For best results, install it inside an aluminum profile. This improves heat dissipation and extends lifespan. The premium warm white LED strip IP65 stays consistent when powered and cooled correctly.

FAQ

• Which power supply should I choose? Add up total strip power and add 20–30% headroom. Pick a unit with OVP/OCP/SCP/OTP.
• When do I need power injection? When runs are long or brightness drops at the end. Add power every 5 m (12V) or 10 m (24 V).
• Can I connect sections? Yes, at cut points. Use quality connectors or solder for the most reliable contact.

Order from LEDownia.pl

Upgrade your project with a premium warm white LED strip IP65 that looks great and works reliably. Add it to your cart and order today.
