MiBoxer TZ2 – 2 in 1 LED controller Zigbee 3.0

MiBoxer TZ2 – track LED controller

TZ2 controls LED strips and lights in Single Color, CCT modes. Match the TZ2 output configuration to the connected strip; control uses Zigbee 3.0 + RF 2.4 GHz.

Operating modes and use

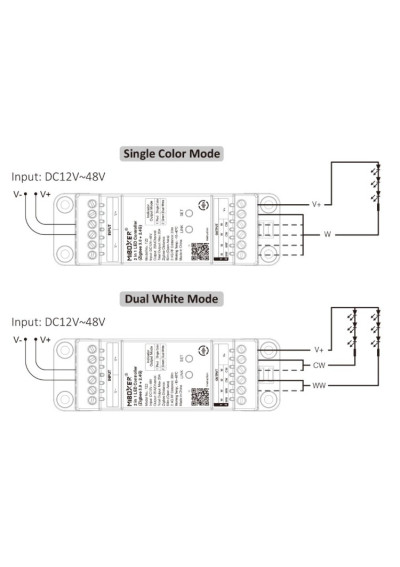

• Single Color: single-color LED strips with brightness control.
• CCT: dual-white strips with brightness and color-temperature adjustment.

Control

Zigbee 3.0 app control requires a Zigbee 3.0 gateway. The separate 2.4 GHz RF path accepts a paired MiBoxer remote.

Functions

• It relays the RF signal to another MiBoxer 2.4 GHz RF product, allowing a larger installation without a stronger transmitter.
• DND mode helps prevent the light from switching on unexpectedly after power is restored.
• Music modes link selected lighting effects to sound.

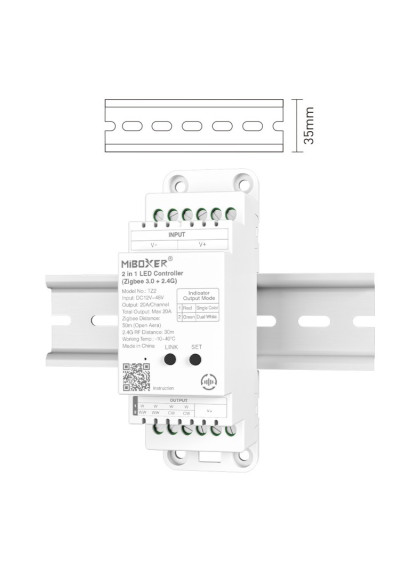

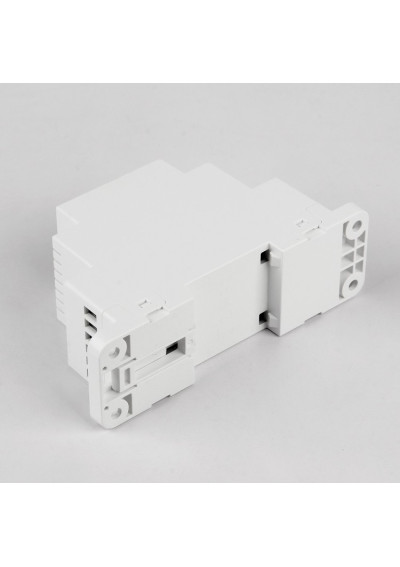

• The enclosure is intended for a standard 35 mm DIN rail.

Compatible remotes

• CCT — controller in this mode:
  • B2-W, C1, C1-W, C3P, FUT006, FUT007, K0-B, K0-W
  • K0s-B, K0s-W, K1, K1-B, K2-B, K2-W, K3-B, K3-W
  • K3S-B, K3S-W
• Single Color — controller in this mode: B1, B1-B, FUT087, FUT087-B, K4-B, K4-W, PUSH1-3, PUSH2-3
