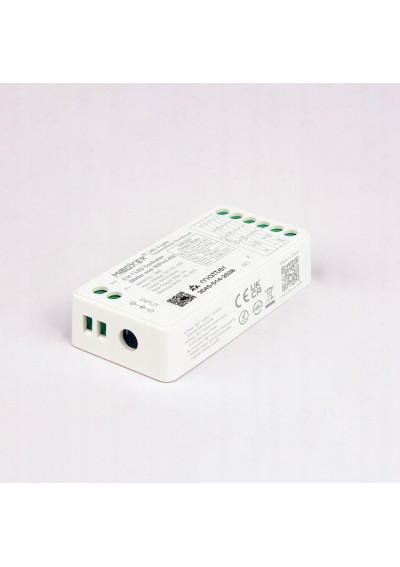

MiBoxer SM5 – 5 in 1 LED controller Matter over Wi-Fi

MiBoxer SM5 – LED controller

SM5 controls LED strips and lights in Single Color, CCT, RGB, RGBW, RGB+CCT modes. Match the SM5 output configuration to the connected strip; control uses Matter over Wi-Fi + RF 2.4 GHz.

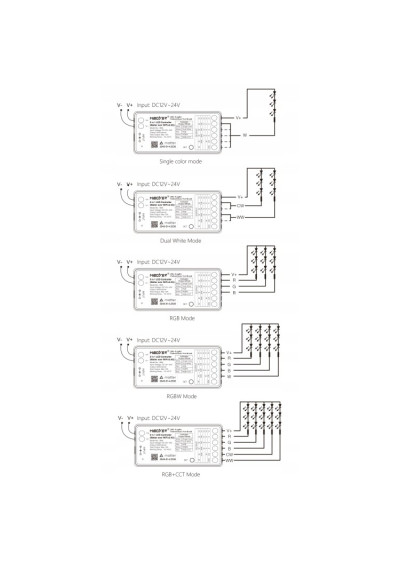

Operating modes and use

• Single Color: single-color LED strips with brightness control.
• CCT: dual-white strips with brightness and color-temperature adjustment.
• RGB: RGB strips with color and brightness adjustment.
• RGBW: RGBW strips, combining RGB colors with a separate white channel.
• RGB+CCT: RGB+CCT strips, combining color with tunable white.

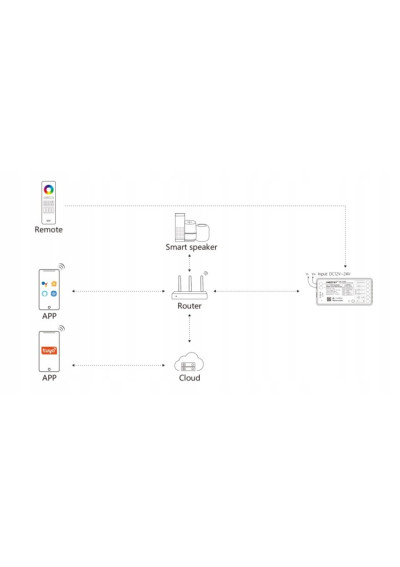

Control

SM5 has built-in Wi-Fi for control through a compatible app without an RF gateway; MiBoxer radio control remains available through a MiBoxer 2.4 GHz RF remote.

Functions

• It relays the RF signal to another MiBoxer 2.4 GHz RF product, allowing a larger installation without a stronger transmitter.
• Mode synchronization keeps the same effect aligned across MiBoxer controllers paired with one remote.
• DND mode helps prevent the light from switching on unexpectedly after power is restored.
• Dynamic modes provide preset lighting effects.

Compatible remotes

• CCT — controller in this mode:
  • B2-W, C1, C1-W, C3P, FUT006, FUT007, K0-B, K0-W
  • K0s-B, K0s-W, K1, K1-B, K2-B, K2-W, K3-B, K3-W
  • K3S-B, K3S-W
• RGB+CCT — controller in this mode: B4, B4-B, C5, C8, FUT089-B, FUT092, PUSH1, PUSH2
• RGBW — controller in this mode: B3-B, B3-W, FUT096-B
• Single Color — controller in this mode: B1, B1-B, FUT087, FUT087-B, K4-B, K4-W, PUSH1-3, PUSH2-3

Technical specifications
