RGB RF LED controller 3 x 6 A with black remote

RGB controller with black remote

The 010877 kit contains an RGB LED load controller and a touch remote. The remote provides radio control; current and power ratings refer to the controller.

Electrical specifications

• Supply: 12–24 V DC
• Outputs: 3 channels, R, G and B
• Maximum current: 6 A per channel, 18 A in total
• At 12 V: 72 W per channel, 216 W in total
• At 24 V: 144 W per channel, 432 W in total

Power per channel is calculated by multiplying the voltage by the 6 A channel current. Total power is confirmed by the manufacturer catalogue.

Box contents

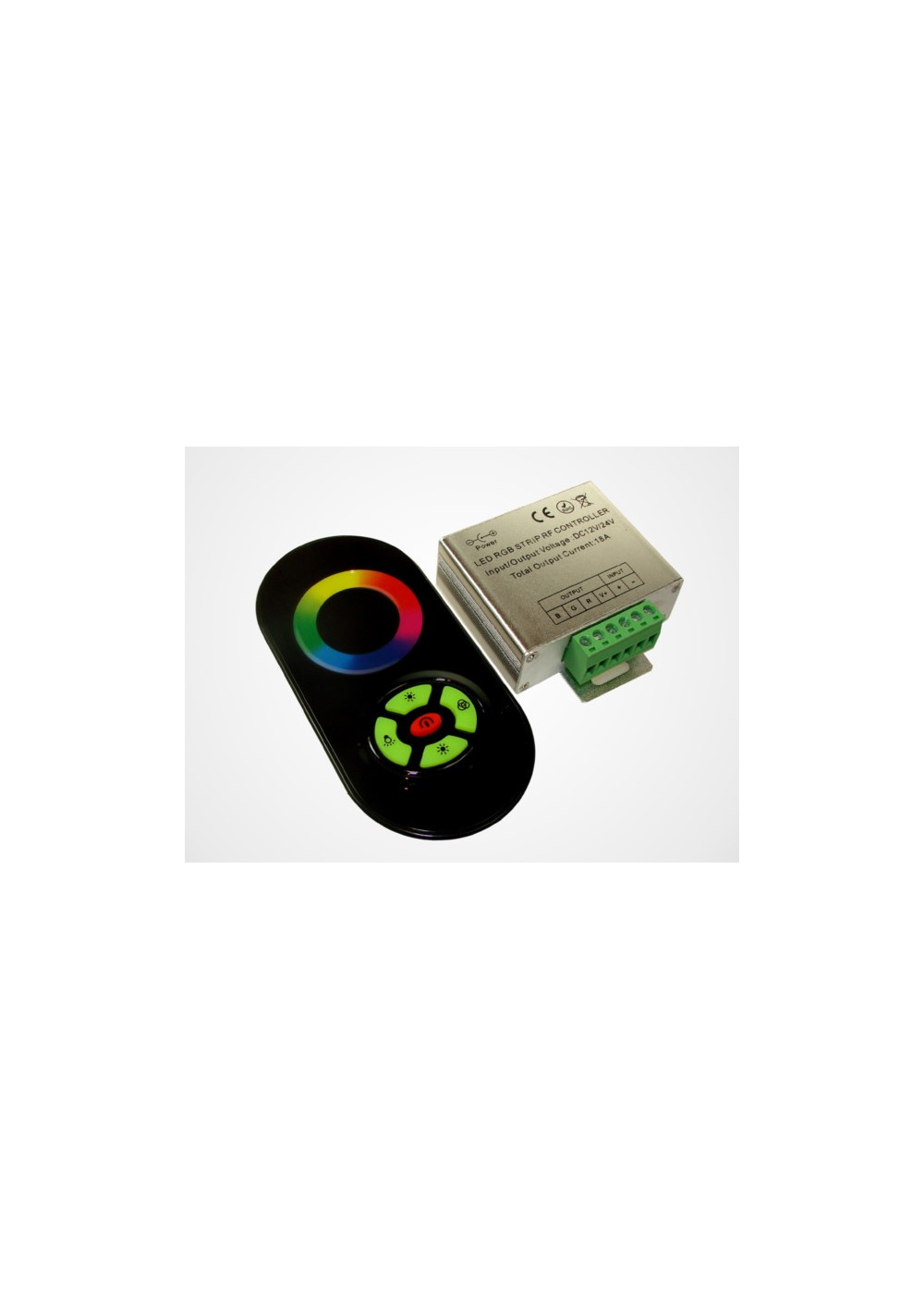

RGB LED controller and black remote with a touch colour ring and five buttons.

Select the supply and load for the operating voltage and channel current limits. Lifestyle images illustrate example RGB lighting applications.
