P3 RGB+CCT wall touch LED controller, 12/24 V, 10 A

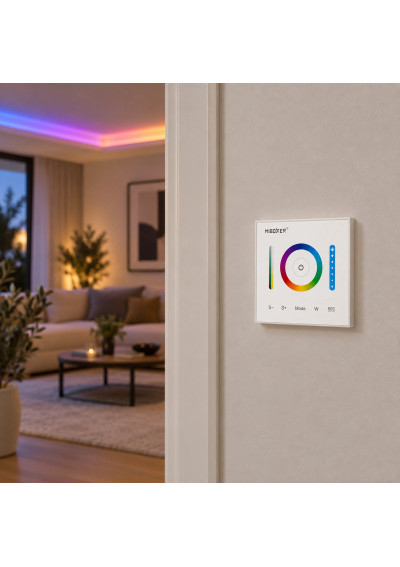

MiBoxer P3 wall touch controller for RGB, RGBW and RGB+CCT LED strips. 12–24 V DC input, 10 A maximum total current.
P3 RGB+CCT wall touch LED controller, 12/24 V, 10 A
113.81 PLN
Shipment in 1-2 business days
002xP3
MiBoxer P3 wall touch controller for RGB, RGBW and RGB+CCT LED strips. 12–24 V DC input, 10 A maximum total current.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
Adjust brightness, colour and colour temperature from the panel. App control requires a separate 2.4 GHz gateway. Remotes and the DMX512 transmitter are purchased separately.
| Type of LED driver | 3-in-1 wall touch panel |
|---|---|
| LED Driver outputs type | RGB, RGBW, RGB+CCT |
| Input Voltage of LED driver | 12–24 V DC |
| Output type | CV |
| Max. output current of LED controller | 10 A total |
| Dimming / Control | Touch brightness, colour and colour-temperature adjustment |
| PWM | 500 Hz / 8 kHz |
| Control interface | Touch panel; radio control |
| Control devices | Panel; optional remote; app via a separate 2.4 GHz gateway |
| Type of communication with LED driver | 2.4 GHz RF; DMX512 via a separate transmitter in RGB+CCT mode |
| RF frequency | 2.4 GHz |
| Control range | Up to 30 m |
| Controller compatibility | FUT089, FUT092, FUT100, B4, T4, B8; accessories purchased separately |
| Pairing | With the light on, press ON/OFF twice, then remote ON 3 times within 3 s |
| IP grade | IP20 |
| Dimensions (L x W x H) [mm] | 86 × 86 × 26 mm |
| Mounting way | Wall mounting, base screwed to wall box |
| Operating temperature | −20 to +60°C |
002xP3
Data sheet
- Dimming / Control
- Touch brightness, colour and colour-temperature adjustment
- Dimensions (L x W x H) [mm]
- 86 × 86 × 26 mm
- IP grade
- IP20
- Mounting way
- Wall mounting, base screwed to wall box
- Type of LED driver
- 3-in-1 wall touch panel
- LED Driver outputs type
- RGB, RGBW, RGB+CCT
- Input Voltage of LED driver
- 12–24 V DC
- Max. output current of LED controller
- 10 A total
- Type of communication with LED driver
- 2.4 GHz RF; DMX512 via a separate transmitter in RGB+CCT mode
