LED power supply Tridonic LCO 200/200-1050/355 pD+ NF C PRE3
LED power supply Tridonic LCO 200W 200-1050mA 355V pD+ NF C PRE3 is a constant current LED driver rated up to 200 W. Values for individual settings are shown in the operating-point table. Documented interfaces and configuration methods: DALI, NFC.
LED power supply Tridonic LCO 200/200-1050/355 pD+ NF C PRE3
564.00 PLN
Shipment in 8-10 working days
zas_tridonic_28004667
LED power supply Tridonic LCO 200W 200-1050mA 355V pD+ NF C PRE3 is a constant current LED driver rated up to 200 W. Values for individual settings are shown in the operating-point table. Documented interfaces and configuration methods: DALI, NFC.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LCO 200W 200-1050mA 355V pD+ NF C PRE3 is a constant current LED driver in the Driver LCO 200W 200–1050mA 355V pD+ NF C PRE3 family. Official article number 28004667 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 28004667 |
|---|---|
| Manufacturer family | Driver LCO 200W 200–1050mA 355V pD+ NF C PRE3 |
| Manufacturer product group | Compact drivers |
| Supply voltage | 220 – 240 V |
| AC voltage range | 198 – 264 V |
| DC voltage range | 176 – 280 V |
| Mains frequency | 0 / 50 / 60 Hz |
| Overvoltage protection | 320 V AC, 48 h |
| Typ. current (at 230 V, 50 Hz, full load) | 953 mA |
| Typ. current (220 V, 0 Hz, full load, XX % dimming level) | 175 mA |
| Leakage current | <0.5 mA |
| Touch current (equipotential connected) | 420 µA |
| Power Consumption | 240 W |
| Typ. power input on stand-by 230 V | <0.3 W |
| Typ. efficiency at 230 V | 93.5 % |
| λ over full operating range (max.) | 0.98 |
| THD at 230V, full load | <8 % |
| Starting time | <0.8 s; <0.75 s |
| Switchover time (AC/DC) | <0.3 s |
| Turn off time | <0.5 s |
| Output current tolerance, min./full load | ±3 % |
| Max. output current peak (non-repetitive) + max. peak output current | ≤ output current +15 % |
| Output LF current ripple (< 120 Hz) / Current ripple at full load | ±3.3 % |
| Output P_ST_LM (at full load) | ≤1 |
| Output SVM (at full load) | ≤0.4 |
| Max. output voltage | 400 V; 280 V; 400 V |
| Dimming range | 1–100 % |
| Mains surge capability (between L - N) | 6 kV / 3 kA |
| Mains surge capability (between L/N - PE) | 10 kV |
| Burst protection | 6 kV |
| Surge voltage at output side (against PE) | <1 kV |
| Type of protection | IP20 |

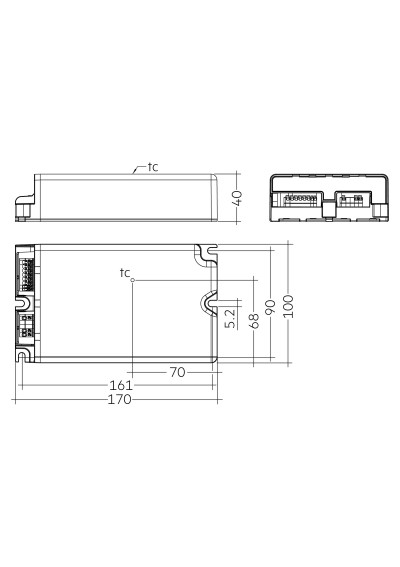

| Length | 170 mm |
| Width | 100 mm |
| Height | 40 mm |
| Lifetime | up to 100000 h |
| Guarantee | 8 years |
| Output mode | CC |
| Maximum output power [W] | 200 |
| Input voltage | 220 – 240 V |
| IP grade | IP20 |
| Warranty [years] | 8 |
| THD | <8 % |
| Typ. efficiency at 230 V | 93.5 % |
| λ over full operating range (max.) | 0.98 |
| Dimensions L×W×H | 170 × 100 × 40 mm |
| Lifetime [h] | up to 100000 h |
| Product net weight | 1.052 kg |
| Interfaces and configuration | DALI, NFC |
| Dimming / control | DALI |
| Dimming | Yes |
| Configuration method | NFC |
| short_circuit_protection | Yes |
| overload_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | Dimmable built-in constant current outdoor D4i LED driver |
| Manufacturer note: Product description | Dimming range 1 to 100 % (min. 10 mA) |
| Manufacturer note: Product description | For luminaires of protection class I and protection class II |
| Manufacturer note: Product description | Temperature protection as per EN 61347-2-13 C5e |
| Manufacturer note: Product description | Output current adjustable between 200 – 1,050 mA via NFC, DALI or ready2mains Programmer |
| Manufacturer note: Product description | Max. output power 200 W |
| Manufacturer note: Product description | Up to 93.5 % efficiency |
| Manufacturer note: Product description | Lowest power input on stand-by < 0.3 W |
| Manufacturer note: Product description | Nominal lifetime of 100,000 h and 8 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Interfaces | Near field communication (NFC) |
| Manufacturer note: Interfaces | Powered DALI-2 |
| Manufacturer note: Interfaces | ready2mains (configuration via mains) |
| Manufacturer note: Interfaces | U6Me2 (configuration of chronoSTEP via mains and ready2mains Programmer) |
| Manufacturer note: Interfaces | Terminal blocks: 45° push terminals |
| Manufacturer note: Functions | Adjustable output current in 1-mA-steps (NFC, DALI, ready2mains) |
| Manufacturer note: Functions | Programmable chronoSTEP: times and levels (NFC, DALI, U6Me2) |
| Manufacturer note: Functions | Enhanced constant light output function (eCLO) |
| Manufacturer note: Functions | Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) |
| Manufacturer note: Functions | Intelligent Temperature Guard (ITG) |
| Manufacturer note: Functions | Intelligent Voltage Guard Plus (IVG+) |
| Manufacturer note: Functions | Configurable external temperature management (ETM) |
| Manufacturer note: Functions | Auxiliary 24 V, 3 W power supply |
| Manufacturer note: Functions | DiiA/Zhaga connectivity extensions DT49, DT50, DT51, DT52 |
| Manufacturer note: Functions | deviceKEY against unauthorized change of parameters |
| Manufacturer note: Benefits | Flexible configuration via companionSUITE (NFC, DALI, ready2mains™) or U6Me2 programmer |
| Manufacturer note: Benefits | Best energy savings due to low stand-by losses and high efficiency |
| Manufacturer note: Benefits | In-field programming possible after installation with NFC interface and ready2mains |
| Manufacturer note: Benefits | High overvoltage protection: up to 10 kV asymmetric (protection class I and II) |
| Manufacturer note: Benefits | Integrated ESD protection |
| Manufacturer note: Typical applications | Road, street and industry |
Operating points
| Point | Output current | Min./Max. forward voltage | Typ. current consumption | Output power | Typ. power consumption | Ambient temperature ta | tc point max | Operating modes / Grouping |
|---|---|---|---|---|---|---|---|---|
| 1 | 200.0 mA | 169 V; 355 V | 360 mA | 71 W | 80 W | -40–60 °C | 85.0 °C | High voltage output (HV) |
| 2 | 250.0 mA | 169 V; 355 V | 437 mA | 88.8 W | 98.2 W | -40–60 °C | 85.0 °C | High voltage output (HV) |
| 3 | 300.0 mA | 169 V; 355 V | 515 mA | 106.5 W | 116.2 W | -40–60 °C | 85.0 °C | High voltage output (HV) |
| 4 | 350.0 mA | 169 V; 355 V | 593 mA | 124.3 W | 134.3 W | -40–60 °C | 85.0 °C | High voltage output (HV) |
| 5 | 400.0 mA | 169 V; 355 V | 672 mA | 142 W | 152.6 W | -40–60 °C | 85.0 °C | High voltage output (HV) |
| 6 | 450.0 mA | 169 V; 355 V | 752 mA | 159.8 W | 171 W | -40–55 °C | 80.0 °C | High voltage output (HV) |
| 7 | 500.0 mA | 169 V; 355 V | 833 mA | 177.5 W | 189.6 W | -40–55 °C | 80.0 °C | High voltage output (HV) |
| 8 | 550.0 mA | 169 V; 355 V | 914 mA | 195.3 W | 208.4 W | -40–55 °C | 80.0 °C | High voltage output (HV) |
| 9 | 600.0 mA | 169 V; 333.3 V | 935 mA | 200 W | 212.9 W | -40–55 °C | 80.0 °C | High voltage output (HV) |
| 10 | 650.0 mA | 169 V; 307.7 V | 934 mA | 200 W | 212 W | -40–55 °C | 80.0 °C | High voltage output (HV) |
| 11 | 700.0 mA | 169 V; 285.7 V | 932 mA | 200 W | 212.7 W | -40–55 °C | 80.0 °C | High voltage output (HV) |
| 12 | 750.0 mA | 169 V; 266.7 V | 932 mA | 200 W | 212.4 W | -40–55 °C | 80.0 °C | High voltage output (HV) |
| 13 | 800.0 mA | 169 V; 250 V | 931 mA | 200 W | 212.3 W | -40–55 °C | 80.0 °C | High voltage output (HV) |
| 14 | 850.0 mA | 169 V; 235.3 V | 931 mA | 200 W | 212.2 W | -40–60 °C | 80.0 °C | High voltage output (HV) |
| 15 | 900.0 mA | 169 V; 222.2 V | 931 mA | 200 W | 212.2 W | -40–60 °C | 80.0 °C | High voltage output (HV) |
| 16 | 950.0 mA | 169 V; 210.5 V | 932 mA | 200 W | 212.4 W | -40–60 °C | 80.0 °C | High voltage output (HV) |
| 17 | 1000.0 mA | 169 V; 200 V | 929 mA | 200 W | 211.7 W | -40–60 °C | 80.0 °C | High voltage output (HV) |
| 18 | 1050.0 mA | 169 V; 190.5 V | 926 mA | 200 W | 211 W | -40–60 °C | 80.0 °C | High voltage output (HV) |
| 19 | 200.0 mA | 160 V; 211 V | 235 mA | 42.2 W | 50.2 W | -40–70 °C | 90.0 °C | Low voltage output (LV) |
| 20 | 250.0 mA | 128 V; 211 V | 280 mA | 52.8 W | 60.9 W | -40–70 °C | 90.0 °C | Low voltage output (LV) |
| 21 | 300.0 mA | 106.7 V; 211 V | 325 mA | 63.3 W | 71.8 W | -40–70 °C | 90.0 °C | Low voltage output (LV) |
| 22 | 350.0 mA | 100 V; 211 V | 371 mA | 73.9 W | 82.6 W | -40–65 °C | 85.0 °C | Low voltage output (LV) |
| 23 | 400.0 mA | 100 V; 211 V | 415 mA | 84.4 W | 93.3 W | -40–65 °C | 85.0 °C | Low voltage output (LV) |
| 24 | 450.0 mA | 100 V; 211 V | 462 mA | 95 W | 104.1 W | -40–65 °C | 85.0 °C | Low voltage output (LV) |
| 25 | 500.0 mA | 100 V; 211 V | 508 mA | 105.5 W | 114.9 W | -40–65 °C | 85.0 °C | Low voltage output (LV) |
| 26 | 550.0 mA | 100 V; 211 V | 555 mA | 116.1 W | 125.8 W | -40–60 °C | 85.0 °C | Low voltage output (LV) |
| 27 | 600.0 mA | 100 V; 211 V | 603 mA | 126.6 W | 136.8 W | -40–60 °C | 85.0 °C | Low voltage output (LV) |
| 28 | 650.0 mA | 100 V; 211 V | 651 mA | 137.2 W | 147.8 W | -40–60 °C | 85.0 °C | Low voltage output (LV) |
| 29 | 700.0 mA | 100 V; 211 V | 699 mA | 147.7 W | 158.9 W | -40–60 °C | 85.0 °C | Low voltage output (LV) |
| 30 | 750.0 mA | 100 V; 211 V | 747 mA | 158.3 W | 169.9 W | -40–60 °C | 85.0 °C | Low voltage output (LV) |
| 31 | 800.0 mA | 100 V; 211 V | 796 mA | 168.8 W | 181.3 W | -40–60 °C | 85.0 °C | Low voltage output (LV) |
| 32 | 850.0 mA | 100 V; 211 V | 845 mA | 179.4 W | 192.6 W | -40–55 °C | 85.0 °C | Low voltage output (LV) |
| 33 | 900.0 mA | 100 V; 211 V | 894 mA | 189.9 W | 203.9 W | -40–55 °C | 85.0 °C | Low voltage output (LV) |
| 34 | 950.0 mA | 100 V; 210.5 V | 942 mA | 200 W | 214.8 W | -40–55 °C | 85.0 °C | Low voltage output (LV) |
| 35 | 1000.0 mA | 100 V; 200 V | 942 mA | 200 W | 214.8 W | -40–55 °C | 85.0 °C | Low voltage output (LV) |
| 36 | 1050.0 mA | 169 V; 190.5 V | 926 mA | 200 W | 211 W | -40–60 °C | 80.0 °C | Low voltage output (LV) |
The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.
Installation / application
Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
zas_tridonic_28004667
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 200
- Output Current of CC power supply [mA]
- 200-1050
- CC operating window
- 100-355
- Min. output voltage of led driver (CC)
- 100
- Max. output voltage of led driver (CC)
- 355
- Dimming / Control
- DALI
- Dimensions (L x W x H) [mm]
- 170 × 100 × 40 mm
- IP grade
- 20
- Length [mm]
- 170
- Width [mm]
- 100
- Height/thickness [mm]
- 40
- Warranty [years]
- 8
- Input voltage [V]
- 220-240
- Min. current of CC driver [mA]
- 200
- Max. current of CC driver [mA]
- 1050
- Power factor
- 0.98
