LED power supply Tridonic LC 60W 24V lp SNC2
LED power supply Tridonic LC 60W 24V lp SNC2 is a constant voltage LED power supply rated up to 60 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
LED power supply Tridonic LC 60W 24V lp SNC2
216.25 PLN
Shipment in 8-10 working days
zas_tridonic_87501092
LED power supply Tridonic LC 60W 24V lp SNC2 is a constant voltage LED power supply rated up to 60 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LC 60W 24V lp SNC2 is a constant voltage LED power supply in the Driver LC 60W 24V lp SNC2 family. Official article number 87501092 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 87501092 |
|---|---|
| Manufacturer family | Driver LC 60W 24V lp SNC2 |
| Manufacturer product group | Linear drivers |
| Supply voltage | 220 – 240 V |
| AC voltage range | 198 – 264 V |
| Mains frequency | 50 / 60 Hz |
| Overvoltage protection | 320 V AC, 48 h |
| Typ. current (at 230 V, 50 Hz, full load) | 300 mA |
| Leakage current | <0.5 mA |
| Typ. input current in no-load operation | 19.5 mA |
| Power Consumption | 66 W |
| Typ. input power in no-load operation | 0.44 W |
| Typ. efficiency at 230 V | 90 % |
| λ over full operating range (max.) | 0.99 |
| λ over full operating range (min.) | 0.85C |
| THD at 230V, full load | <10 % |
| Starting time | <0.5 s |
| Turn off time | <0.5 s |
| Hold on time | 0 s |
| Output voltage tolerance | 23.5–25.5 V |
| Output LF voltage ripple | ±1.5 % |
| Output P_ST_LM (at full load) | ≤1 |
| Output SVM (at full load) | ≤0.4 |
| Max. output voltage | 26 V |
| Mains surge capability (between L - N) | 1 kV |
| Mains surge capability (between L/N - PE) | 2.4 kV |
| (Mains) burst capability | 1 kV |
| Type of protection | IP20 |

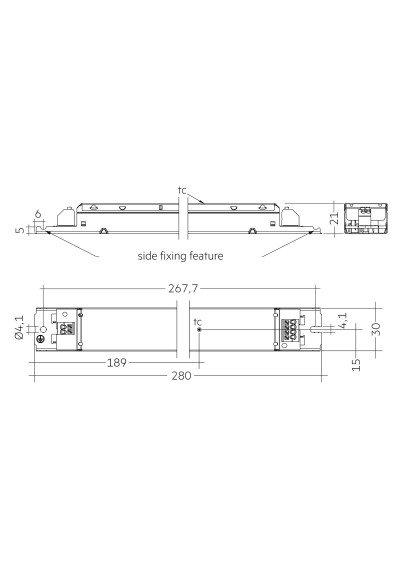

| Length | 280 mm |
| Width | 30 mm |
| Height | 21 mm |
| Lifetime | up to 100000 h |
| Guarantee | 5 years |
| Output mode | CV |
| Maximum output power [W] | 60 |
| Nominal CV output voltage [V] | 24 |
| Input voltage | 220 – 240 V |
| IP grade | IP20 |
| Warranty [years] | 5 |
| THD | <10 % |
| Typ. efficiency at 230 V | 90 % |
| λ over full operating range (max.) | 0.99 |
| Dimensions L×W×H | 280 × 30 × 21 mm |
| Lifetime [h] | up to 100000 h |
| Product net weight | 0.21 kg |
| Dimming | Yes |
| Manufacturer note: Product description | Constant voltage LED driver |
| Manufacturer note: Product description | Output voltage 24 V |
| Manufacturer note: Product description | Max. output power 60 W |
| Manufacturer note: Product description | For luminaires of protection class I and protection class II |
| Manufacturer note: Product description | Dimmable via external PWM LED dimmers attached on output side |
| Manufacturer note: Product description | Power input on stand-by < 0.5 W |
| Manufacturer note: Product description | Nominal lifetime up to 100,000 h |
| Manufacturer note: Product description | 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Typical applications | Cove lighting, facade accent lighting, ceiling integration |
| Manufacturer note: Technical details | 24 V, 60 W |
| Manufacturer note: Technical details | Output LF voltage ripple (< 120 Hz) ± 1.5 % |
| Manufacturer note: Technical details | Small cross section |
| Manufacturer note: Technical details | Push terminals for simple wiring |
| Manufacturer note: System solution | Tridonic LLE-FLEX ADV G2 600, 1,200, 1,800 lm/m |
| Manufacturer note: System solution | Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m |
| Manufacturer note: System solution | In connection with Flex accessories wire to PCB plug |
Operating points
| Point | Load | Output current | Output voltage | Typ. current consumption | Output power | Typ. power consumption | Ambient temperature ta | tc point max |
|---|---|---|---|---|---|---|---|---|
| 1 | 30.0 % | 750.0 mA | 24.0 V | 103 mA | 18 W | 21.4 W | -20–55 °C | 70.0 °C |
| 2 | 40.0 % | 1000.0 mA | 24.0 V | 129 mA | 24 W | 27.6 W | -20–55 °C | 70.0 °C |
| 3 | 50.0 % | 1250.0 mA | 24.0 V | 155 mA | 30 W | 33.8 W | -20–55 °C | 70.0 °C |
| 4 | 60.0 % | 1500.0 mA | 24.0 V | 181 mA | 36 W | 40.1 W | -20–55 °C | 70.0 °C |
| 5 | 70.0 % | 1750.0 mA | 24.0 V | 208 mA | 42 W | 46.4 W | -20–55 °C | 70.0 °C |
| 6 | 80.0 % | 2000.0 mA | 24.0 V | 235 mA | 48 W | 52.7 W | -20–55 °C | 75.0 °C |
| 7 | 90.0 % | 2250.0 mA | 24.0 V | 262 mA | 54 W | 59.1 W | -20–55 °C | 75.0 °C |
| 8 | 100.0 % | 2500.0 mA | 24.0 V | 289 mA | 60 W | 65.5 W | -20–55 °C | 75.0 °C |
Installation / application
Select the load for the documented voltage and permissible power. Dimming and installation details apply only to interfaces documented for this article.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
zas_tridonic_87501092
Data sheet
- Power supply type
- Constant Voltage (CV)
- Rated power [W]
- 60
- Output Voltage of CV power supply [V]
- 24
- Dimensions (L x W x H) [mm]
- 280x30x21
- IP grade
- 20
- Length [mm]
- 280
- Width [mm]
- 30
- Height/thickness [mm]
- 21
- Warranty [years]
- 5
- Input voltage [V]
- 220-240
- Power factor
- 0.99
