LED power supply Tridonic LC 21/400-515/50 0-10V fixC lp SNC UNV
LED power supply Tridonic LC 21W 400-515mA 50V 0-10V fixC lp SNC UNV is a constant current LED driver rated up to 21 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
LED power supply Tridonic LC 21/400-515/50 0-10V fixC lp SNC UNV
142.50 PLN
Shipment in 8-10 working days
zas_tridonic_87500902
LED power supply Tridonic LC 21W 400-515mA 50V 0-10V fixC lp SNC UNV is a constant current LED driver rated up to 21 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LC 21W 400-515mA 50V 0-10V fixC lp SNC UNV is a constant current LED driver in the Driver LC 21W 400–515mA 0-10V fixC lp SNC UNV family. Official article number 87500902 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 87500902 |
|---|---|
| Manufacturer family | Driver LC 21W 400–515mA 0-10V fixC lp SNC UNV |
| Manufacturer product group | Linear drivers |
| Supply voltage | 120 – 277 V |
| AC voltage range | 108 – 305 V |
| Mains frequency | 50 / 60 Hz |
| Leakage current | <0.7 mA; <0.7 mA |
| Typ. input current in no-load operation | 24 mA; 15 mA |
| In-rush current (peak / duration at XXX V) | 5.6 A / 23 µs; 1.9 A / 30 µs |
| Typ. input power in no-load operation | 0.42 W; 0.33 W |
| Typ. efficiency at 120 V | 87 %; 87 % |
| λ over full operating range (min.) | >0.95; >0.95 |
| THD (at XXX V, 60 Hz, full load) | <20 %; <20 % |
| Starting time | ≤0.5 s; ≤0.5 s |
| Turn off time | <0.5 s |
| Hold on time | 0.01 s |
| Output current tolerance, min./full load | ±5 % |
| Max. output current peak (non-repetitive) + max. peak output current | ≤ output current +15 % |
| Output LF current ripple (< 120 Hz) / Current ripple at full load | ±15 % |
| Max. output voltage | 60 V |
| Dimming range | 10–100 % |
| Mains surge capability (between L - N) | 2 kV |
| Mains surge capability (between L/N - PE) | 2 kV |
| Surge voltage at output side (against PE) | 3 kV |
| Burst / surge peaks output side against PE | 2.5 kV |
| Type of protection | IP20 |
| Length | 280 mm |
| Width | 30 mm |
| Height | 21 mm |
| Lifetime | up to 50000 h |
| Guarantee | 5 years |
| Output mode | CC |
| Maximum output power [W] | 21 |
| Input voltage | 120 – 277 V |
| IP grade | IP20 |
| Warranty [years] | 5 |

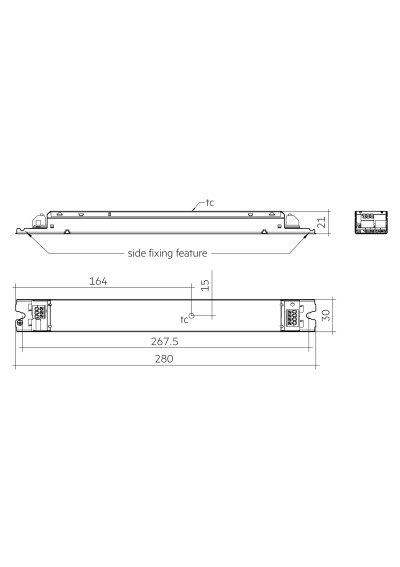

| Dimensions L×W×H | 280 × 30 × 21 mm |
| Lifetime [h] | up to 50000 h |
| Product net weight | 0.174 kg |
| Dimming | Yes |
| short_circuit_protection | Yes |
| overload_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | Constant current LED driver |
| Manufacturer note: Product description | Only for US applications |
| Manufacturer note: Product description | Dimmable via 0 ... 10 V |
| Manufacturer note: Product description | Dimming range 10 to 100 % |
| Manufacturer note: Product description | Class 2 |
| Manufacturer note: Product description | FCC Part 15 |
| Manufacturer note: Product description | Meets UL 8750 SF3.1 |
| Manufacturer note: Product description | Meets DesignLights Consortium 4.3 |
| Manufacturer note: Product description | Temperature protection as per UL8750/UL Recognized |
| Manufacturer note: Product description | Adjustable output current 400 or 515 mA |
| Manufacturer note: Product description | Max. output power 21 W |
| Manufacturer note: Product description | Nominal lifetime up to 50,000 h |
| Manufacturer note: Product description | 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Housing properties | Casing: metal, white |
| Manufacturer note: Housing properties | Type of protection IP20 |
| Manufacturer note: Housing properties | Dry and damp location |
| Manufacturer note: Functions | Overload protection |
| Manufacturer note: Functions | Short-circuit protection |
| Manufacturer note: Functions | No-load protection |
| Manufacturer note: Functions | Overtemperature protection |
Operating points
| Point | Output current | Min./Max. forward voltage | Typ. current consumption | Output power | Typ. power consumption | Ambient temperature ta | tc point max | Iout select |
|---|---|---|---|---|---|---|---|---|
| 1 | 400.0 mA | 30 V; 50 V | 89 mA; 200 mA | 20 W | 23.7 W; 23.8 W | -20–50 °C | 65.0 °C | 1 |
| 2 | 515.0 mA | 30 V; 40.8 V | 100 mA; 210 mA | 21 W | 24 W; 24.5 W | -20–50 °C | 65.0 °C | ON |
The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.
Installation / application
Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
zas_tridonic_87500902
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 21
- Output Current of CC power supply [mA]
- 400-515
- CC operating window
- 30-50
- Min. output voltage of led driver (CC)
- 30
- Max. output voltage of led driver (CC)
- 50
- Dimensions (L x W x H) [mm]
- 280x30x21
- IP grade
- 20
- Length [mm]
- 280
- Width [mm]
- 30
- Height/thickness [mm]
- 21
- Warranty [years]
- 5
- Input voltage [V]
- 120-277
- Min. current of CC driver [mA]
- 400
- Max. current of CC driver [mA]
- 515
