Mean Well WDR-60-5 50W 5V LED Power Supply
Mean Well WDR-60-5 is a 50 W, 5 V DC constant-voltage power supply for mounting on TS-35/7.5 or TS-35/15 DIN rail.
Mean Well WDR-60-5 50W 5V LED Power Supply
Minimum order quantity: 1. Order in multiples of 1.
203.24 PLN
Shipment in 1-2 business days
tm_WDR-60-5
Mean Well WDR-60-5 is a 50 W, 5 V DC constant-voltage power supply for mounting on TS-35/7.5 or TS-35/15 DIN rail.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
WDR-60-5 – full product specification
Mean Well WDR-60-5 is a WDR-60-series power supply rated at 50 W. The parameters below come from the exact official manufacturer datasheet.
Output and mounting
The supply operates in CV mode. Its output can be set across 0 V–0 V, and the enclosure mounts on TS-35/7.5 or TS-35/15 DIN rail.
Full technical specifications
| Cooling | free-air convection |
|---|---|
| Dimensions | 32 × 125.2 × 102 mm |
| Document revision | WDR-60-SPEC 2025-12-12 |
| Typical efficiency | 83.5 % |

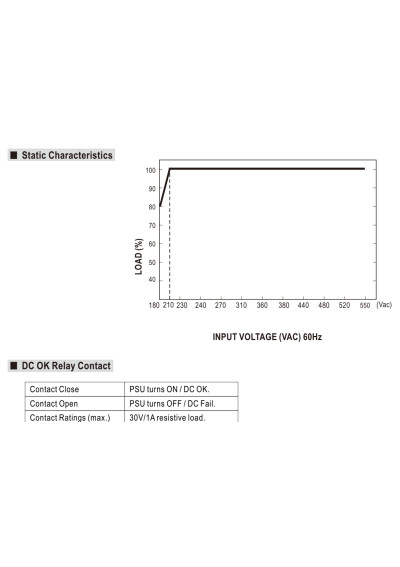

| Input frequency | 47–63 Hz |
| Inrush current | 50 A |
| Mounting | TS-35/7.5 or TS-35/15 DIN rail |

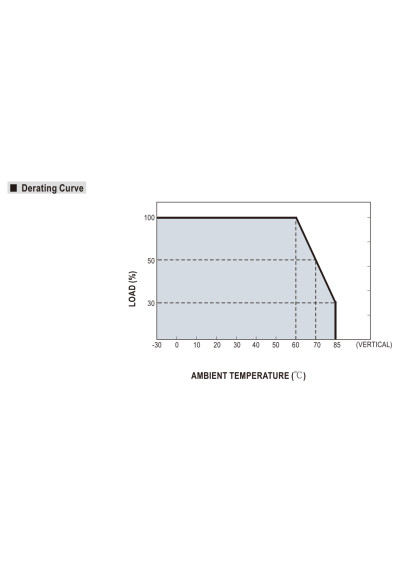

| Operating temperature | -30–85 °C |
| Rated current | 10000 mA |
| Operating mode | Constant Voltage (CV) |
| Output voltage | 5 V |
| Over-voltage protection range | 6.2–7.2 V |
| Over-voltage protection | Yes |
| Short-circuit protection | Yes |
| Rated power | 50 W |
| Manufacturer warranty | 3 years |
| Weight | 0.5 kg |
Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
tm_WDR-60-5
Data sheet
- Power supply type
- Constant Voltage (CV)
- Rated power [W]
- 30,1-60
- Output Voltage of CV power supply [V]
- 5
- Length [mm]
- 32
- Width [mm]
- 125.2
- Height/thickness [mm]
- 102
- Warranty [years]
- 3
Specific References
- EAN13
- 4711287422527
- MPN
- WDR-60-5
