GLP GLG-150-12A 150W 12V 12.5A CV+CC LED power supply
GLP GLG-150-12A is a power supply whose parameters are verified against official manufacturer documentation. Full technical data and documents are listed below.
GLP GLG-150-12A 150W 12V 12.5A CV+CC LED power supply
202.94 PLN
Shipment in 1-2 business days
zas_glg_150_12A_mp
GLP GLG-150-12A is a power supply whose parameters are verified against official manufacturer documentation. Full technical data and documents are listed below.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
GLG-150-12A – full technical specification
GLP GLG-150-12A is a power supply whose parameters are verified against official manufacturer documentation. Full technical data and documents are listed below.
Identity
| Manufacturer | GLP |
|---|---|
| Model | GLG-150-12A |
| Series | GLG |
Output parameters
| Line regulation | 1 % |
|---|---|
| Load regulation | 2 % |
| Rated output current | 12.5 A |
| Operating mode | CC |
| Output voltage | 12 V |
| Rated power | 150 W |
Input parameters
| Input current | 2A/115VAC,1A/230VAC A |
|---|---|
| Input frequency | 47–63 Hz |
| Input voltage range | AC: 90–264 VAC |
| Inrush current | 75A/230VAC A |
| Leakage current | 1mA/240VAC mA |
Efficiency and electrical parameters
| Typical efficiency | 90 % |
|---|---|
| Power-factor correction | active |
Protections
| Over-voltage threshold | 14–17 |
|---|---|
| Over-current protection | Yes |
| Over-current protection behavior | constantcurrentlimiting,auto-recovery. |
| Over-current threshold | 95–110% |
| Over-temperature protection | Yes |
| Over-temperature protection behavior | shutdownoutputvoltage.Auto-recoveryaftertemperaturegoesdown. |
| Over-voltage protection | Yes |
| Over-voltage protection behavior | shutdownoutputvoltage.Re-powerontorecovery. |
| Short-circuit protection | Yes |
Environmental conditions
| Operating temperature | -30–70 °C |
|---|---|
| Storage temperature | -40–80 °C |
| Temperature coefficient | 0.03 %/°C |
| Operating humidity | 20–95 % RH |

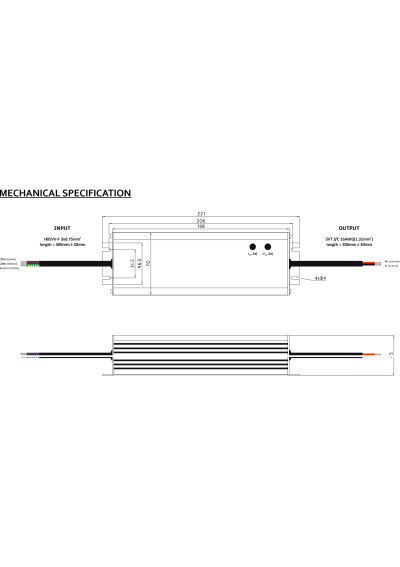

Construction and dimensions
| Cooling | free_air_convection |
|---|---|
| Dimensions (L × W × H) | 221 × 70 × 45 mm |
| IP rating | IP65 |
Safety and EMC
| EMC emission | Compliance to EN55015 |
|---|---|
| Harmonic current | Compliance to EN61000-3-3;EN61000-3-2classC(≥50%load) |
| EMC immunity | Compliance to EN61547;EN55024;EN61000-4-2,-3,-4,-5,-6,-8,-11 |
| Insulation resistance | I-P/O-P,I-P/GND,O-P/GND:100MΩ/500VDC/25°C/70% |
| Safety standards | Compliance to EN61347-1,EN61347-2-13,IP65 |
| Withstand voltage | I-P/O-P:3kVAC;I-P/GND:2kVAC;O-P/GND:0.5kVAC |
Manufacturer documentation
zas_glg_150_12A_mp
Data sheet
- Power supply type
- CV+CC
- Rated power [W]
- 100,1-249
- Dimensions (L x W x H) [mm]
- IP grade
- 65
- Length [mm]
- 221
- Width [mm]
- 70
- Height/thickness [mm]
- 45
- Input voltage [V]
- 90-264
